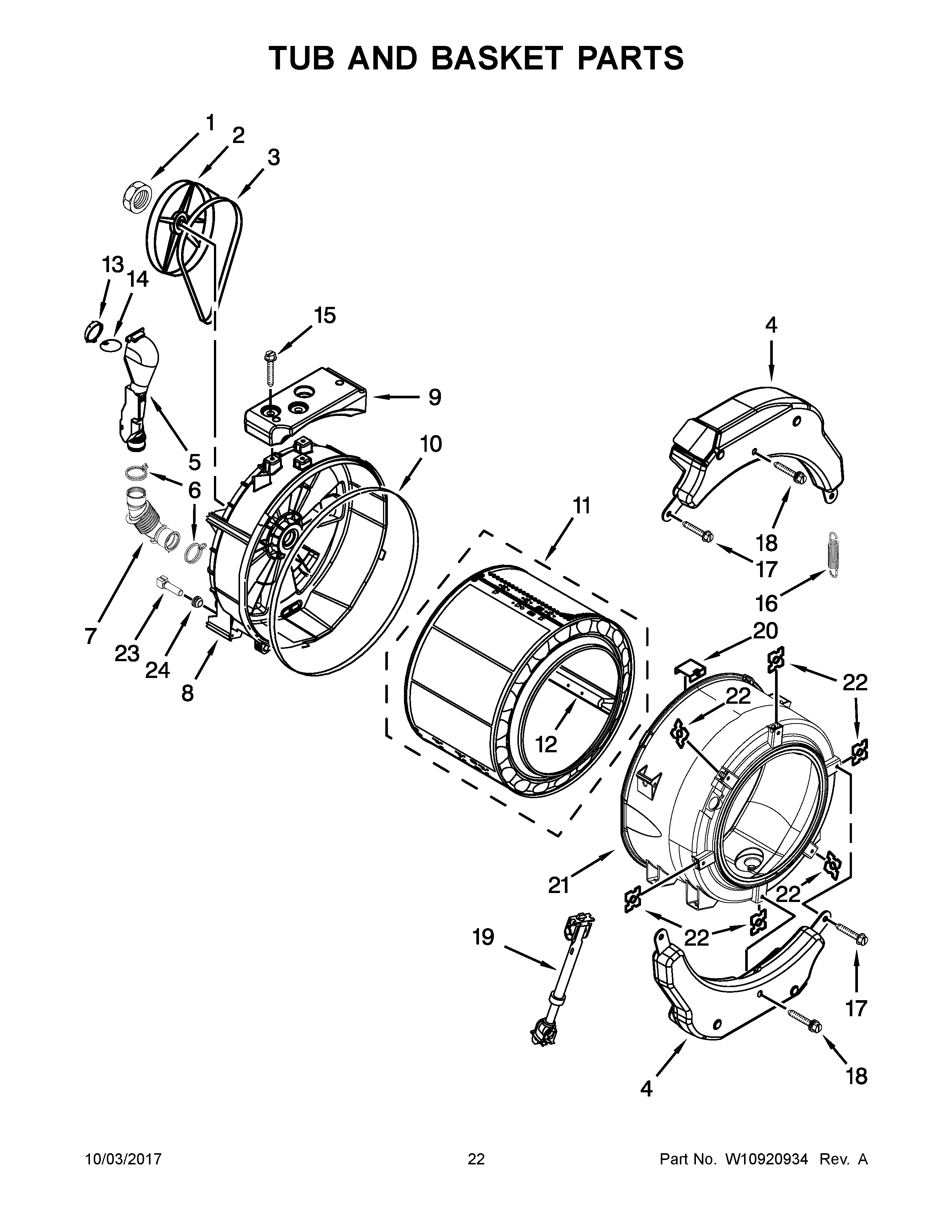

MLG22PRAWW0 12 – TUB AND BASKET PARTS

Products

Position	Product
1	MAY 8533999
2	MAY 8540088
3	MAY W10260319
4	MAY W10223198
5	MAY W10142720
6	MAY 8540010
7	MAY 8540019
8	TUB, REAR
9	MAY W10200747
10	MAY 8540090
11	MAY W10198146
12	MAY W10118982
13	CONNECTOR – VENTILATION
14	Flap – Ventilation
15	MAY W10246531
16	SPRING, SUSPENSION (SET OF 2)
17	BOLT, COUNTERWEIGHT
18	MAY W10259288
19	SHOCK ABSORBER
20	MAY 8540092
21	TUB, FRONT (INCLUDES ITEMS 10 & 22)
22	MAY 8540072
23	NEGATIVE THERMISTOR CONTROL
24	MAY 8540228
