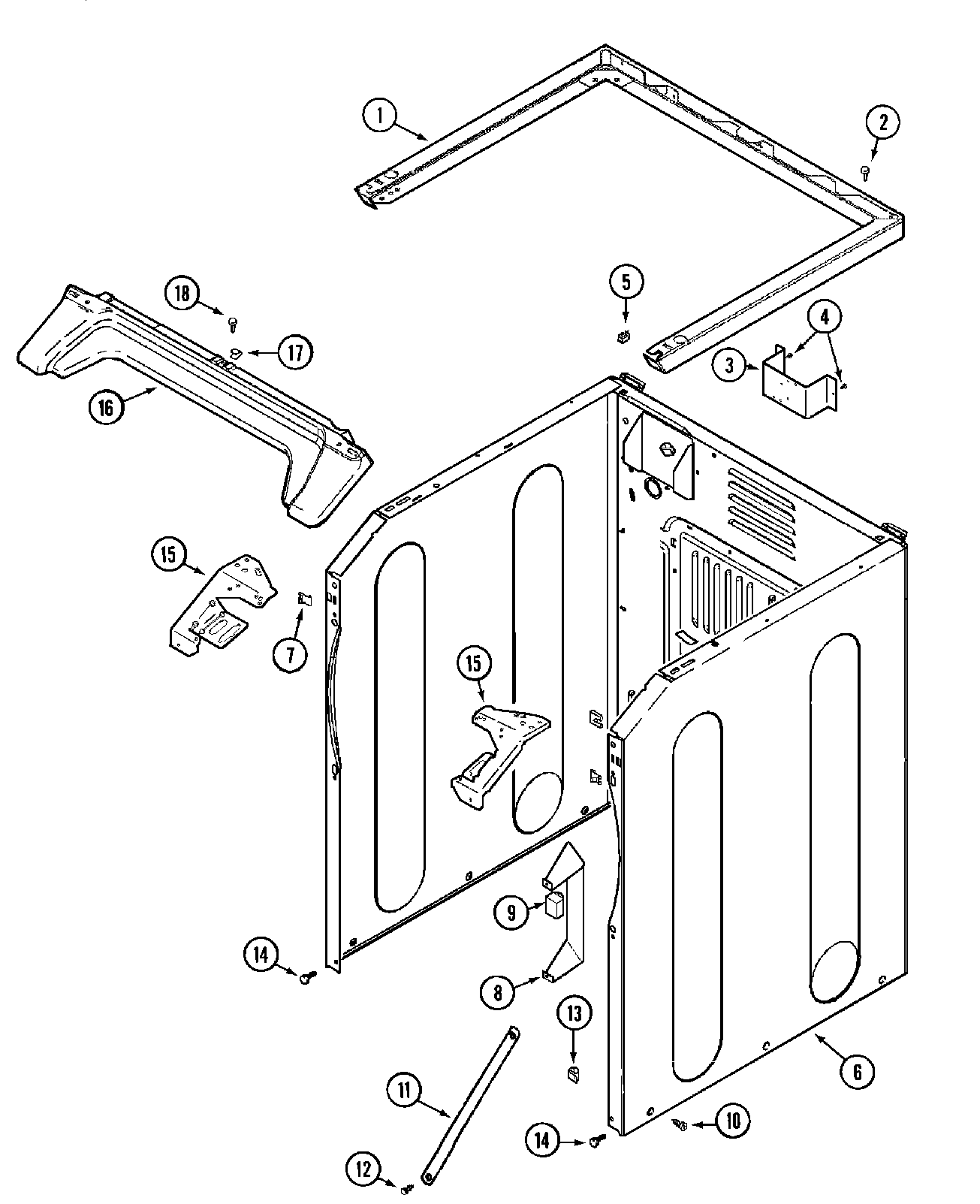

MLG23PDAWW 04 – CABINET-FRONT (LOWER)

MLG23PDAWW 04 – CABINET-FRONT (LOWER)

Written by

in

MLG23PDAWW 04 – CABINET-FRONT (LOWER)

Products

PositionProduct
001MAY 33002005
001(BSQ)
002MAY 22001883
005WP22001502 Whirlpool Fastener
006MAY 22003639
006DOWEL PIN FOR HANDLE
007WP22002049 Whirlpool Washer/Dryer Clip
008MAY Y310632
008MAY 314627
008MAY Y313561
009WP3177991 Whirlpool Screw
009MAY 206824
010213007 Whirlpool Screw #12
011BRACE, CROSS
013MAY Y310376
015MAY 33002009
015MAY 33002010
016MAY 22002664
016MAY 33002011
017MAY 33002013
018W11573574 Whirlpool Screw
019MAY 33002054
020MAY 33001989
