MLG23PDHGW 09 – BASE

MLG23PDHGW 09 – BASE

Written by

in

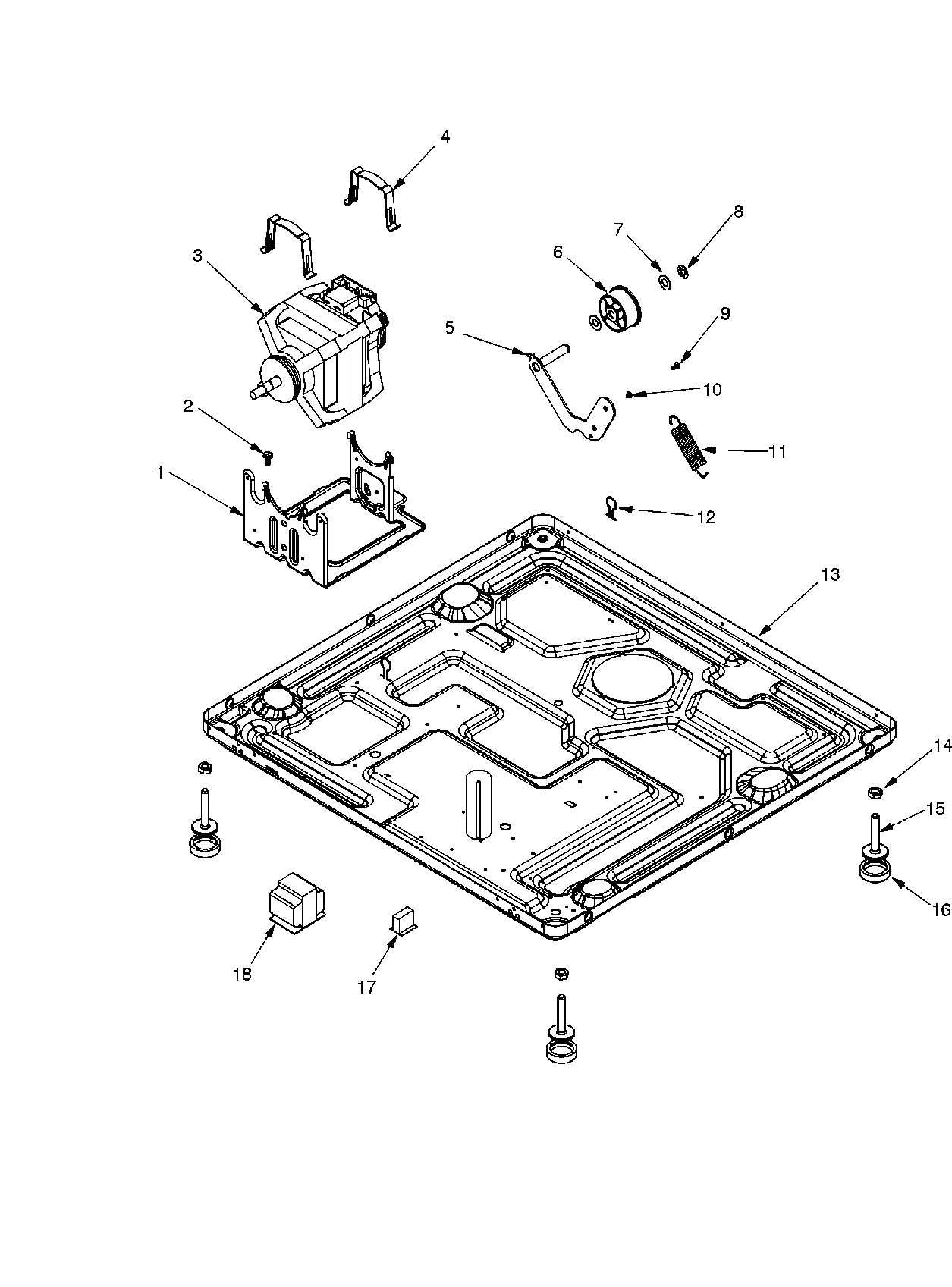

MLG23PDHGW 09 – BASE

Products

PositionProduct
001MAY 33002817
002MAY Y313561
003W10197708 Whirlpool Drive Motor Assembly
004WPY015825 Whirlpool Motor Clip
005WP6-3705180 Whirlpool Idler Pulley Lever
006WP6-3700340 Whirlpool Belt Tension Pulley Wheel
007MAY Y312527
008WP354987 Whirlpool C-Clip
009WPY014874 Whirlpool Screw
010MAY 33002218
01133002459 Whirlpool Idler Spring
012MAY 410490
013DOWEL PIN FOR HANDLE
013MAY 33002975
014WP62739 Whirlpool Nut
015WP8563585 Whirlpool Foot Assembly
016WP210684 Whirlpool Dishwasher Leveling Leg Pad
017MAY 33002508
018MAY 33001948
018MAY 33001821
