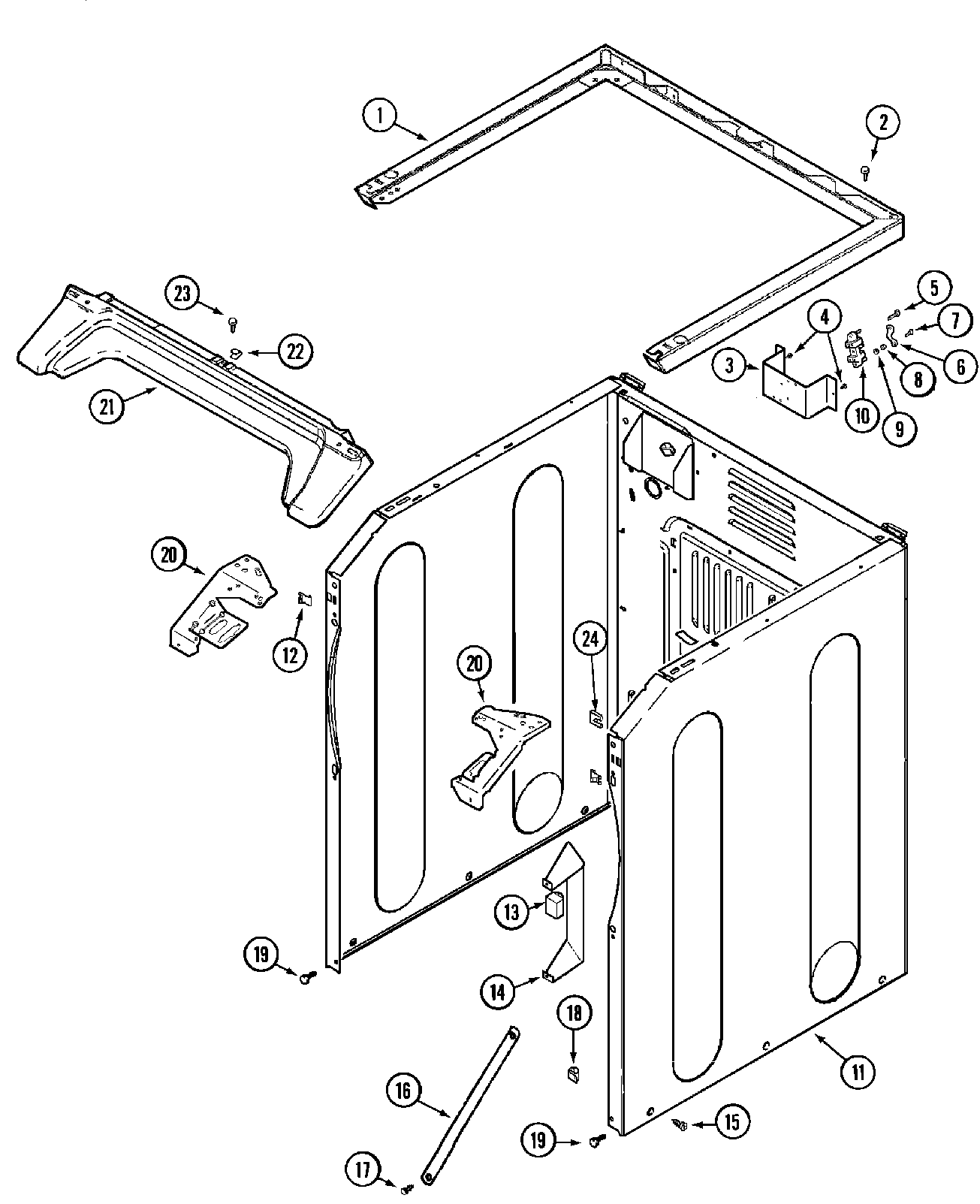

MLG23PRAWW 03 – CABINET-FRONT (LOWER)

MLG23PRAWW 03 – CABINET-FRONT (LOWER)

Written by

in

MLG23PRAWW 03 – CABINET-FRONT (LOWER)

Products

PositionProduct
001MAY 33002005
002MAY 22001883
003MAY 315471
005SCREW, No.10-24 X 3/4 INCH—–O
006PART NOT USED
007DOWEL PIN FOR HANDLE
008WP112432 Whirlpool Nut Assembly
009WP311093 Whirlpool Washer 7
010W11705611 Whirlpool Block Ter
011MAY 22003639
011MAY 22002381
011MAY 22002382
012WP22002049 Whirlpool Washer/Dryer Clip
013WP3177991 Whirlpool Screw
013MAY 306398
014MAY 314627
015213007 Whirlpool Screw #12
015SCREW—-NA
016BRACE, CROSS
018MAY Y310376
020MAY 33002095
020MAY 33002473
021MAY 33002011
022MAY 33002013
023W11573574 Whirlpool Screw
024MAY 213280
025MAY 33002265
025MAY 33002268
025MAY 33002434
026MAY 33001989
