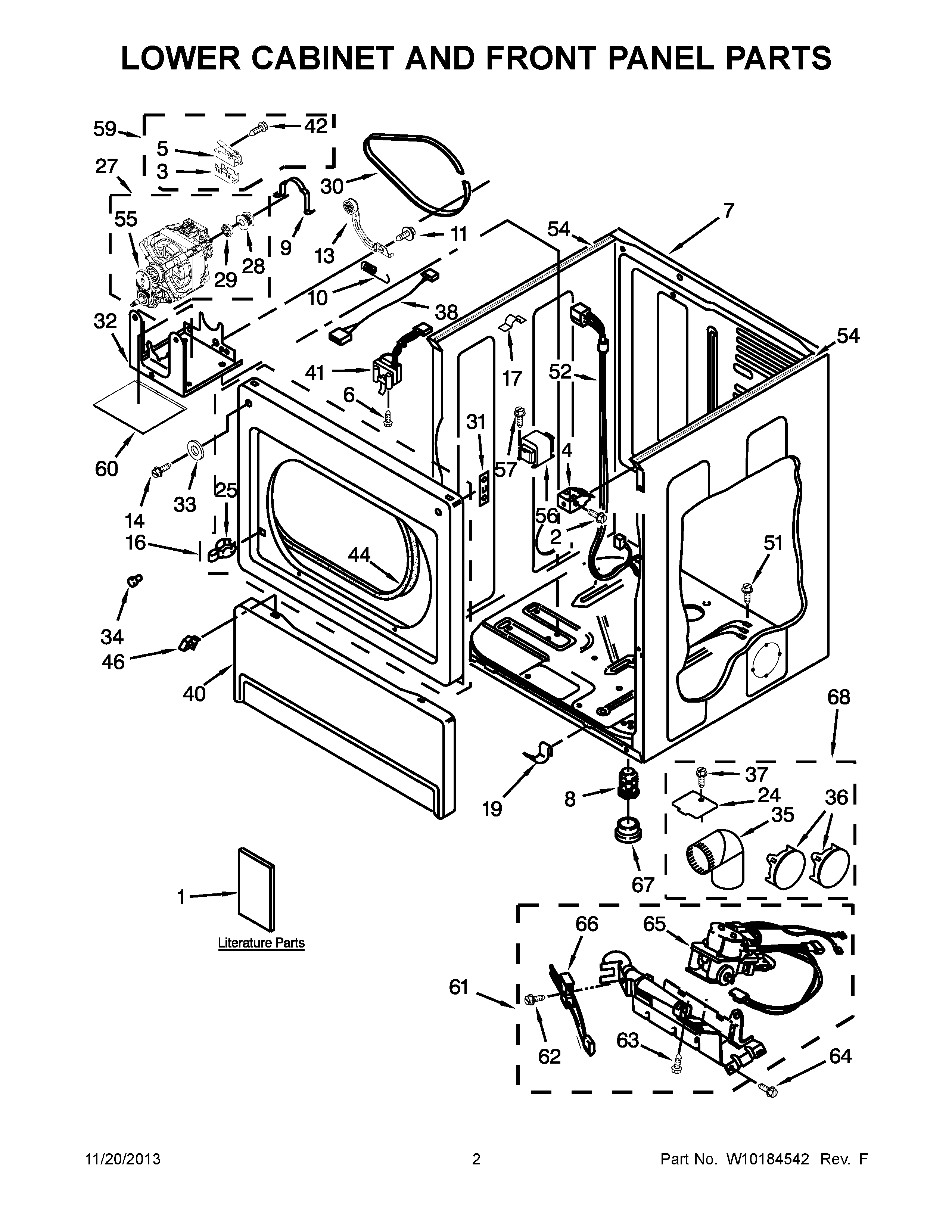

MLG24PDAGW0 02 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	MAY W10184555
1	MAY W10184546
2	MAY W10223793
3	MAY 8564011
4	CLIP, FRONT PANEL
5	Switch, Broken Belt
6	MAY W10080540
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
13	ASSEMBLY, IDLER
14	SCREW
16	PANEL, FRONT
17	Clip
19	Clip (2)
24	MAY 3394331
25	Strike, Door
27	ASSEMBLY, MOTOR (50 HZ.)
28	MAY W10167237
29	MAY 3393657
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	MAY W10223794
34	BUMPER
35	MAY 279731
36	MAY 49252
37	MAY 488729
38	MAY W10231861
40	Toe Panel (Includes Item. 2) (White)
41	MAY W10237959
42	SCREW
43	SCREW
44	MAY 3387242
46	RETAINER
51	MAY W10080700
52	MAY W10111036
54	SEAL-FOAM (IEC)
55	MAY 3405160
56	MAY 3977633
57	MAY W10080740
58	JUMPER, TRANSFORMER
59	ASSEMBLY, SWITCH
60	DAPENING PANEL
61	MAY W10096909
62	Screw & Washer (8-32 x 5/8)
63	MAY W10080320
64	MAY W10080630
65	VALVE, GAS 50 HZ. (COMPLETE)
66	MAY 686590
67	BOOT, FOOT
68	MAY 279818
