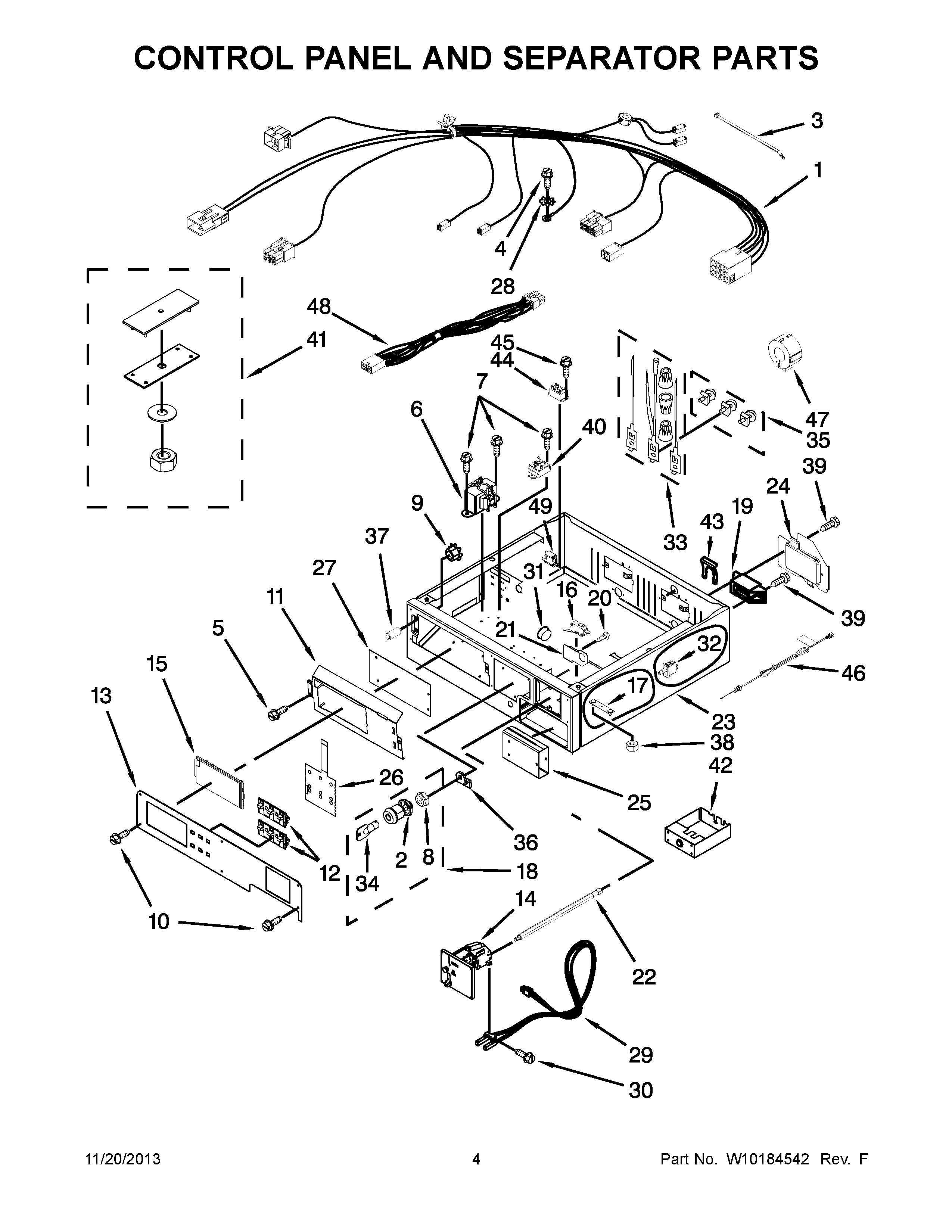

MLG24PDAGW0 03 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
NI	MAY W10223807
NI	MAY W10223804
NI	MAY W10223809
NI	MAY W10153836
1	MAY W10169697
2	NUT, HEX
3	MAY 8529895
4	Screw, 8-18 x 5/8 (External Ground)
5	MAY W10140652
6	MAY W10237957
7	MAY W10080820
8	NUT, HEX
9	NUT
10	MAY W10131119
11	MAY W10163677
12	BUTTON, PUSH
13	MAY W10135192
14	ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
15	MAY W10133268
16	MAY W10133281
17	MOUNTING STRAP, WELD ASSEMBLY
18	ASSEMBLY, LOCK ACCESS DOOR
19	MAY 3397659
20	SCREW, 4-40 X 5/8
21	MAY W10160652
22	MAY W10137319
23	MAY W10159849
24	MAY 3396795
25	VAULT BODY, ASSEMBLY
26	MAY W10133278
27	MAY W10167611
28	RETAINER, TERMINAL
29	MAY W10155927
30	SCREW
31	MAY W10165297
32	SWITCH, VAULT SERVICE DOOR
33	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
34	KEY, ACCESS DOOR
35	MAY 279393
36	MAY W10233256
37	STANDOFF, CIRCUIT BOARD
38	MAY W10080190
39	MAY W10080740
40	MAY W10133335
41	MAY W10169579
42	COIN BOX
43	STRAIN-RELIEF CLIP
44	MAY W10258680
45	MAY W10080700
46	CORD, POWER
47	CHOKE, HARNESS
48	MAY W10111027
49	MAY W10189038
