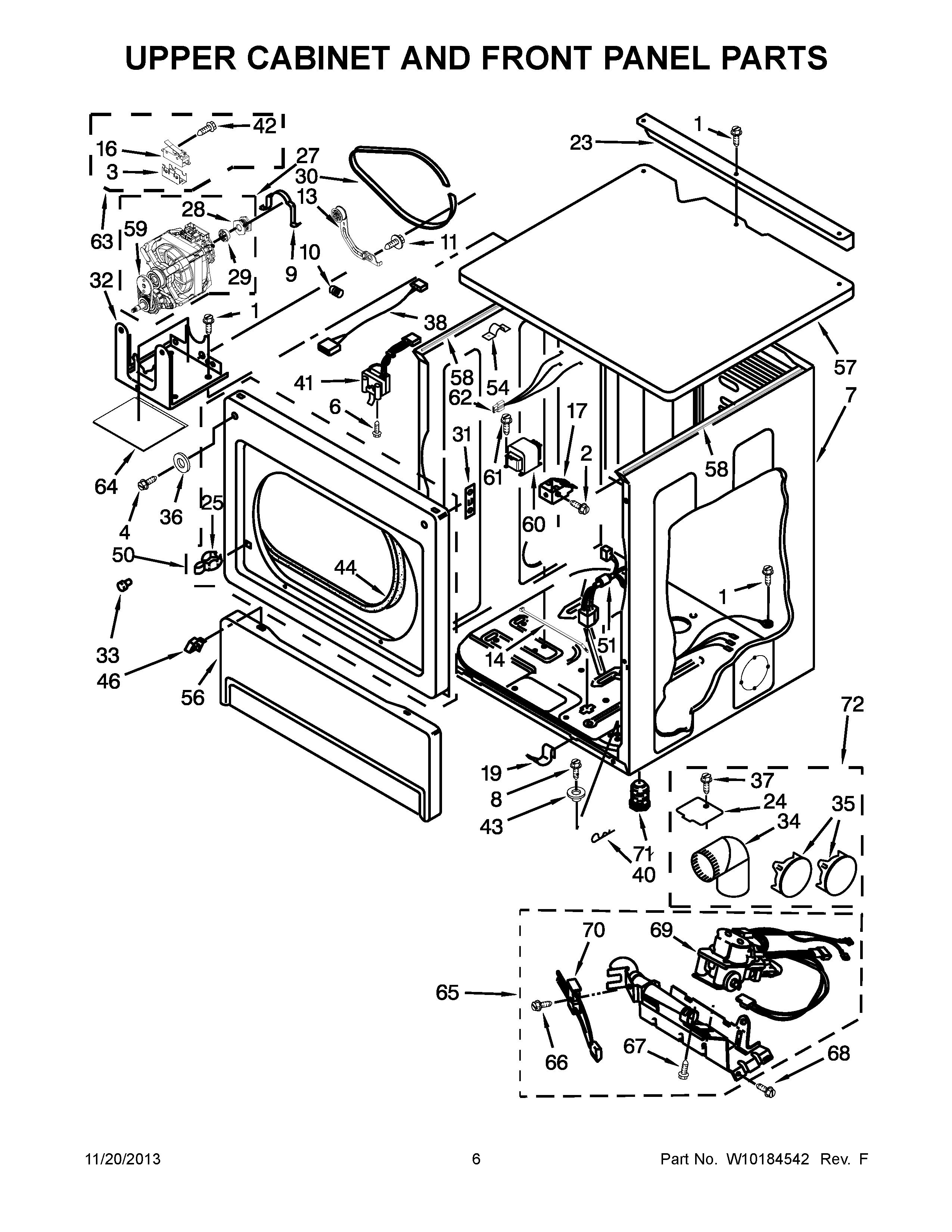

MLG24PDAGW0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	MAY W10080700
2	MAY W10223793
3	MAY 8564011
4	SCREW
6	MAY W10080540
7	MAY 3978859
8	SCREW
9	MAY 660658
10	MAY 3387374
11	SCREW
13	ASSEMBLY, IDLER
14	MAY 8529895
16	Switch, Broken Belt
17	CLIP, FRONT PANEL
19	Clip (2)
23	MAY 3979115
24	MAY 3394331
25	Strike, Door
27	ASSEMBLY, MOTOR (50 HZ.)
28	MAY W10167237
29	MAY 3393657
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	BUMPER
34	MAY 279731
35	MAY 49252
36	MAY W10223794
37	MAY 488729
38	MAY W10231861
40	MAY W10117347
41	MAY W10237959
42	SCREW
43	MAY 3389233
44	MAY 3387242
46	RETAINER
50	PANEL, FRONT
51	MAY W10111035
54	Clip
56	Toe Panel (Includes Item. 2) (White)
57	TOP (WHITE)
58	SEAL-FOAM (IEC)
59	MAY 3405160
60	MAY 3977633
61	MAY W10080740
62	JUMPER, TRANSFORMER
63	ASSEMBLY, SWITCH
64	DAPENING PANEL
65	MAY W10096909
66	Screw & Washer (8-32 x 5/8)
67	MAY W10080320
68	MAY W10080630
69	VALVE, GAS 50 HZ. (COMPLETE)
70	MAY 686590
71	FOOT, DRYER PLASTIC
72	MAY 279818
