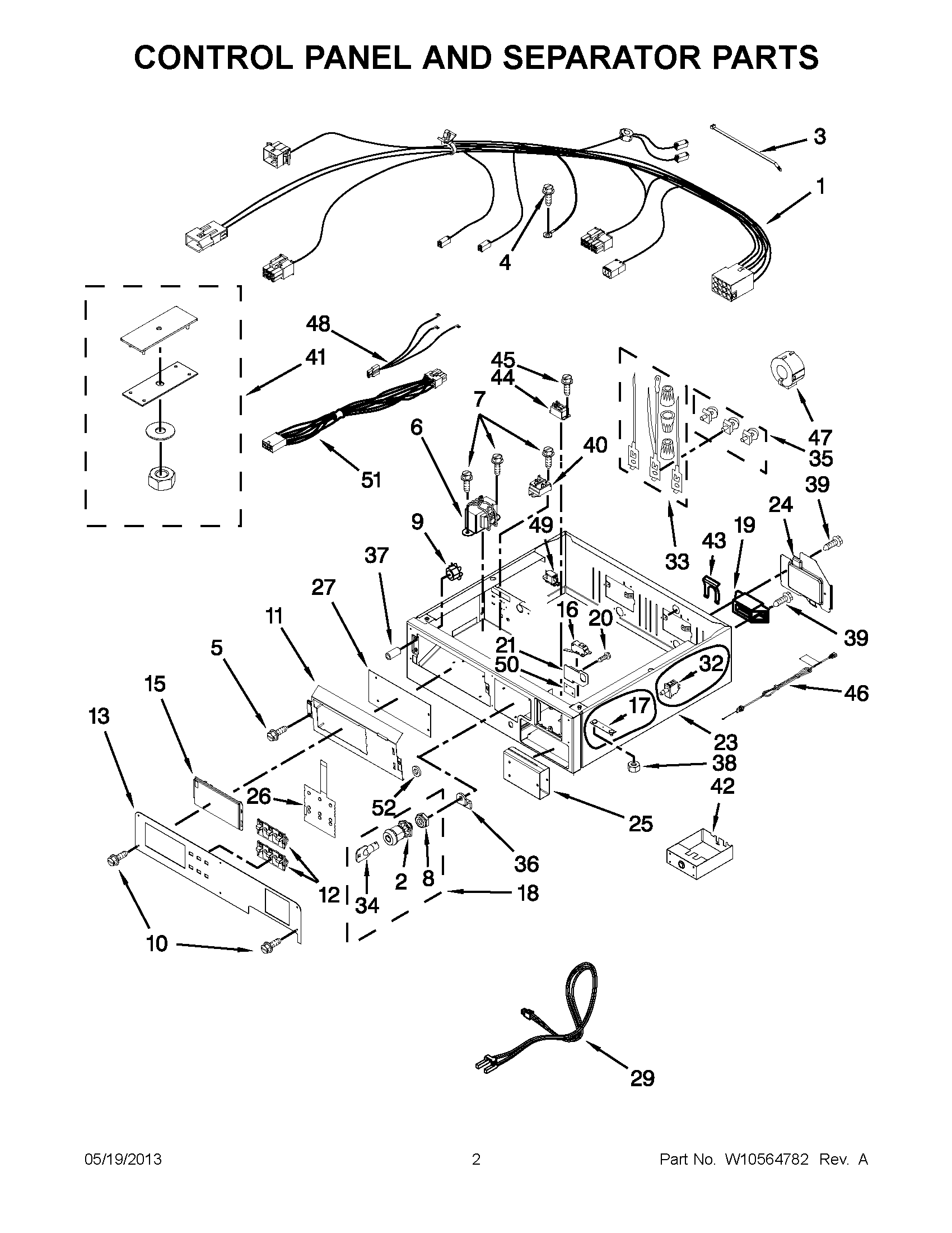

MLG24PDAGW3 01 – CONTROL PANEL AND SEPARATOR PARTSadmin2025-04-26T11:30:31+00:00MLG24PDAGW3 01 – CONTROL PANEL AND SEPARATOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10169697 |
| 2 | NUT, HEX |
| 3 | MAY 8529895 |
| 4 | MAY 8533974 |
| 5 | MAY W10140652 |
| 6 | MAY W10237957 |
| 7 | MAY 8533971 |
| 8 | NUT, HEX |
| 9 | NUT |
| 11 | MAY W10163677 |
| 12 | BUTTON, PUSH |
| 13 | MAY W10135192 |
| 15 | MAY W10133268 |
| 16 | MAY W10133281 |
| 17 | MOUNTING STRAP, WELD ASSEMBLY |
| 18 | ASSEMBLY, LOCK ACCESS DOOR |
| 19 | MAY 3397659 |
| 20 | SCREW, 4-40 X 5/8 |
| 21 | MAY W10160652 |
| 23 | MAY W10159849 |
| 24 | MAY 3396795 |
| 25 | VAULT BODY, ASSEMBLY |
| 26 | MAY W10133278 |
| 27 | MAY W10167611 |
| 29 | MAY W10226074 |
| 32 | SWITCH, VAULT SERVICE DOOR |
| 33 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 34 | KEY, ACCESS DOOR |
| 35 | MAY 279393 |
| 36 | MAY W10233256 |
| 37 | STANDOFF, CIRCUIT BOARD |
| 38 | NUT, HEX (LEFT HAND THREAD) |
| 39 | SCREW |
| 40 | MAY W10133335 |
| 41 | MAY W10169579 |
| 42 | COIN BOX |
| 43 | STRAIN-RELIEF CLIP |
| 44 | MAY W10258680 |
| 45 | SCREW |
| 46 | CORD-POWER |
| 46 | MAY W10476818 |
| 46 | 10A CORD ADAPTER (EUROPEAN) |
| 46 | 10A CORD ADAPTER (BRITISH) |
| 46 | 10A CORD LOCK |
| 47 | CHOKE, HARNESS |
| 48 | JUMPER, TRANSFORMER |
| 49 | MAY W10189038 |
| 50 | MAY W10151156 |
| 51 | MAY W10111027 |
| 52 | MAY 2006252 |
