MLG24PDAGW3 06 – BURNER ASSEMBLY – Aparts

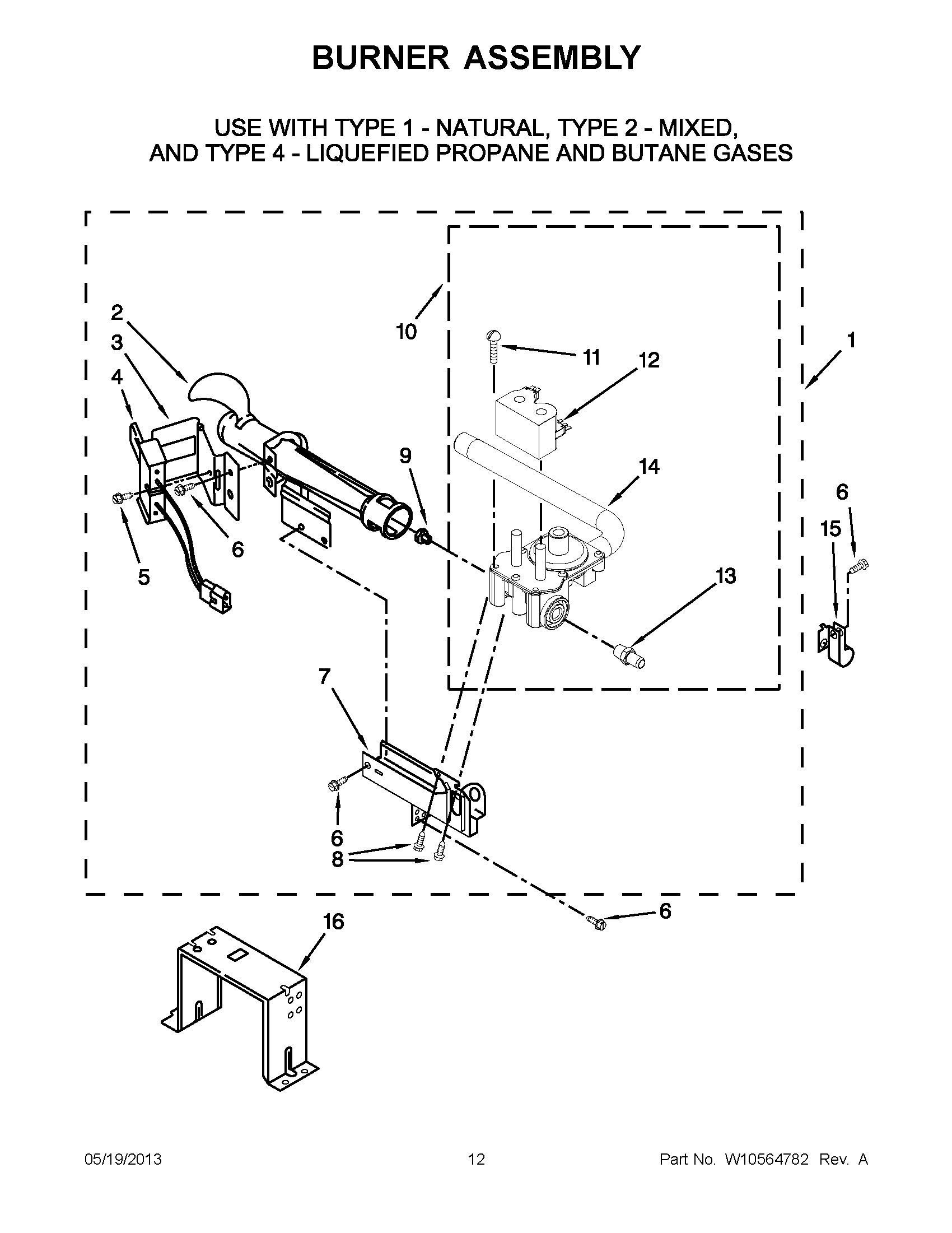

MLG24PDAGW3 06 – BURNER ASSEMBLY

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10181947
1	MAY W10469829
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1)
9	MAY 234868
10	MAY W10304603
11	MAY 326049536
12	MAY W10340251
13	MAY W10304608
14	MAY W10097610
15	MAY 3387561
16	MAY 3389889
