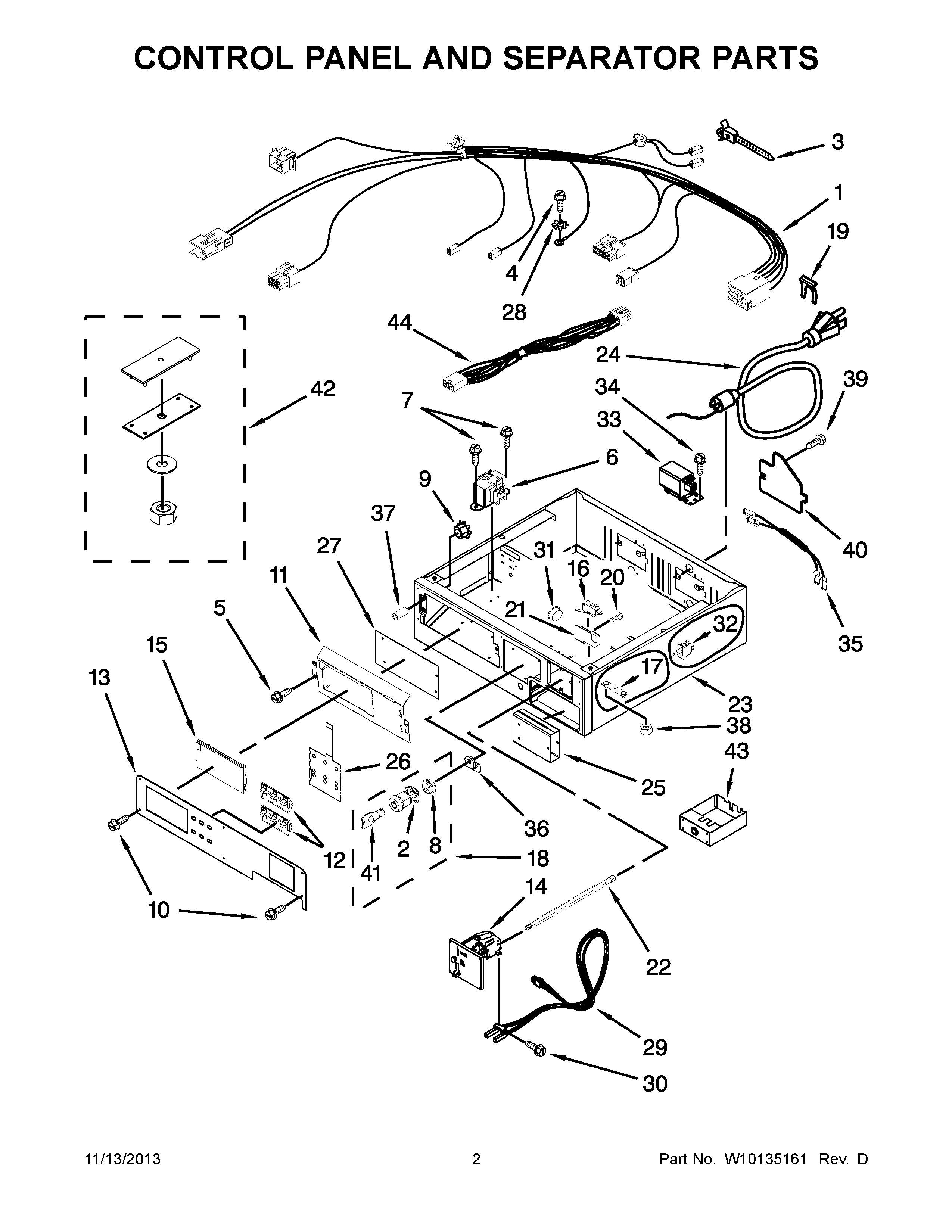

MLG24PDAWW0 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
1	MAY W10167621
2	NUT, HEX
3	MAY 3391018
4	Screw, 8-18 x 5/8 (External Ground)
5	MAY W10140652
6	MAY W10133285
8	NUT, HEX
9	NUT
10	MAY W10131119
11	MAY W10163677
12	BUTTON, PUSH
13	MAY W10135185
14	ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
15	MAY W10133268
16	MAY W10133280
17	MOUNTING STRAP, WELD ASSEMBLY
18	ASSEMBLY, LOCK ACCESS DOOR
19	STRAIN-RELIEF CLIP
20	SCREW, 4-40 X 5/8
21	MAY W10160652
22	MAY W10137319
23	MAY W10159849
24	MAY 694018
25	VAULT BODY, ASSEMBLY
26	MAY W10133277
27	MAY W10130700
28	RETAINER, TERMINAL
29	Coin Optic Sensor Assembly
30	SCREW
31	MAY W10165297
32	MAY W10131838
33	RFI-Filter
34	MAY 8533971
35	MAY W10188051
36	CAM-LOCK
37	STANDOFF, CIRCUIT BOARD
38	MAY W10080190
39	SCREW
40	MAY 3396795
41	KEY, ACCESS DOOR
42	MAY W10169579
43	COIN BOX
44	MAY W10111027
