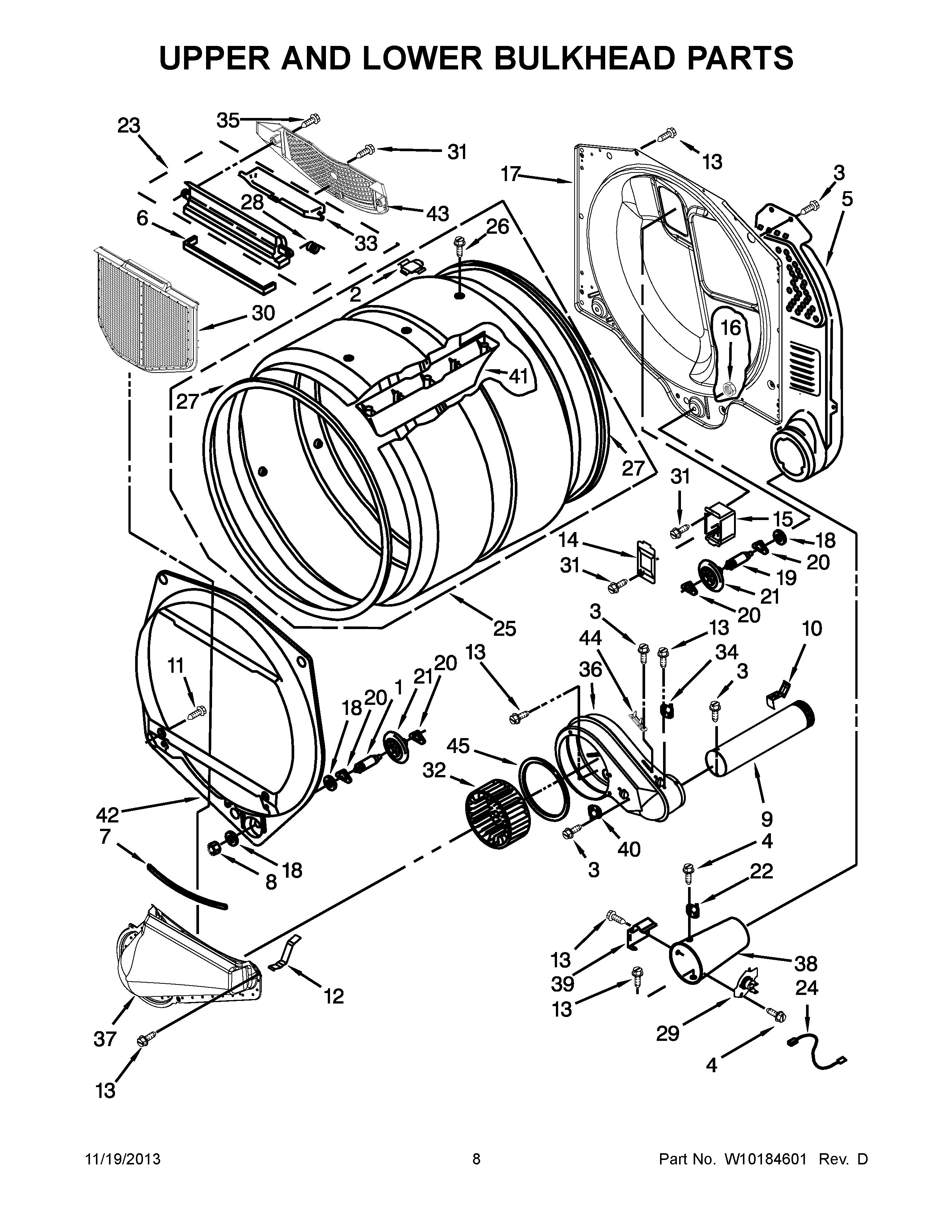

MLG24PDAWW1 05 – UPPER AND LOWER BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	Plug, Drum Hole
3	MAY 8533971
4	SCREW,8-18 X 3/8
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	SCREW
12	CLIP-SPRING
13	SCREW
14	MAY 3402841
15	MAY 8578825
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	THERMOSTAT, HI LIMIT
23	Housing, Outlet
24	WIRE JUMPER
25	Complete Drum Assembly
26	MAY W10219342
27	MAY W10166807
28	Spring, Lint Screen Door
29	CUT-OFF, THERMAL
30	MAY W10049370
31	MAY 487909
32	MAY W10168564
33	MAY 8563758
34	THERMOSTAT
35	SCREW
36	HOUSING, BLOWER
37	Lint Duct Assembly
38	MAY 8573824
39	MAY 338906
40	THERMOSTAT 155Â° F (ELECTRONIC)
41	BAFFLE, DRUM
42	BULKHEAD, FRONT
43	MAY 8563756
44	Fuse, Thermal (91 C)
45	SEAL, PLATE COVER
