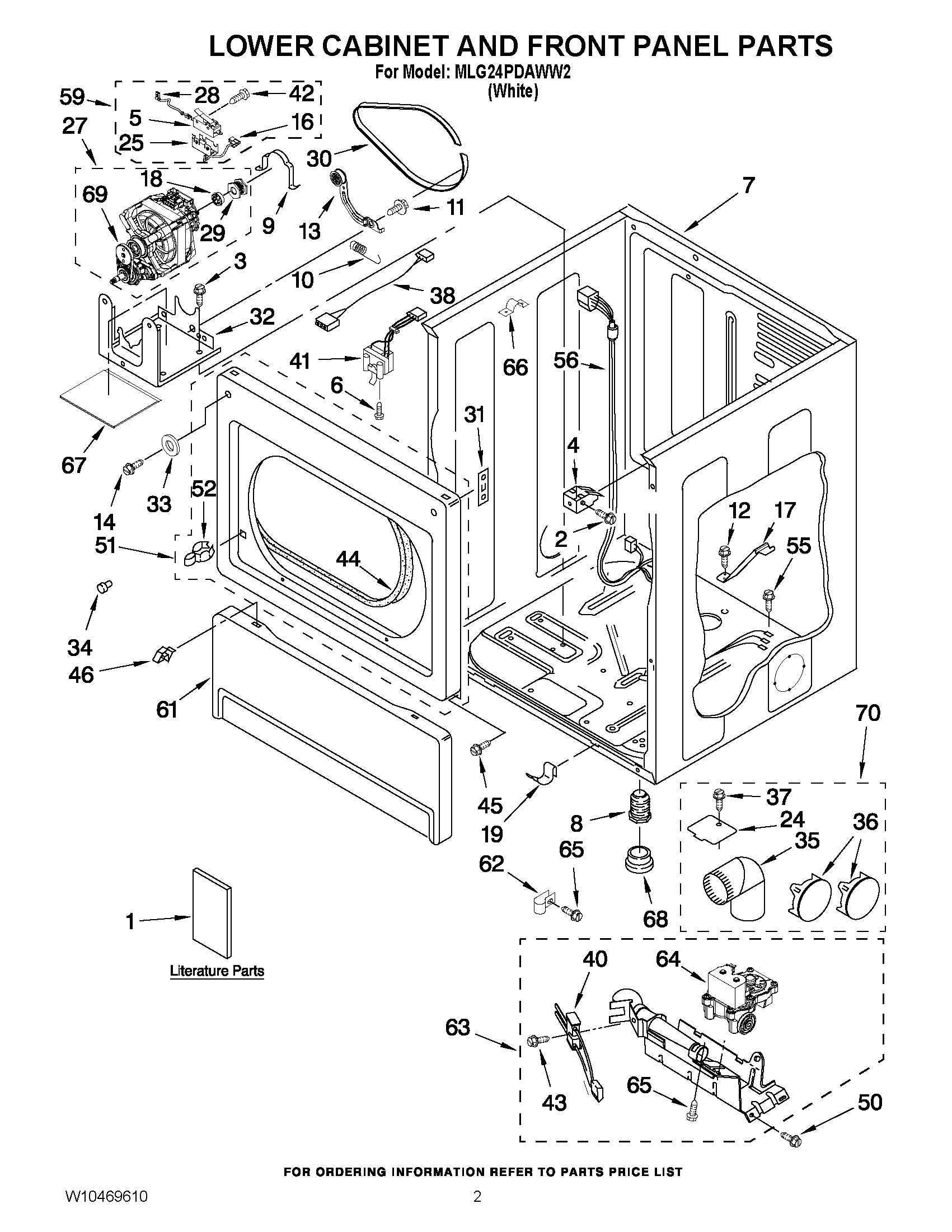

MLG24PDAWW2 01 – LOWER CABINET AND FRONT PANEL PARTS

MLG24PDAWW2 01 – LOWER CABINET AND FRONT PANEL PARTS

Written by

in

MLG24PDAWW2 01 – LOWER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
NIMAY 279818
1MAY W10184580
1MAY W10469610
1MAY W10135168
2SCREW
3SCREW
4CLIP, FRONT PANEL
5Switch, Broken Belt
6SCREW
7MAY 8310656
8MAY 3392100
9MAY 660658
10MAY 3387374
11SCREW
12Screw
13MAY W10344192
14SCREW
16MAY 8539892
17MAY 8529757
18MAY 3393657
19CLIP
24MAY 3394331
25MAY 8564011
27MOTOR ASSEMBLY 60 HZ.
28Wire, Belt (To Protector)
29PULLEY, MOTOR
30BELT, DRIVE
31MAY 3390902
32MAY W10135695
33WASHER
34BUMPER
35MAY 279731
36MAY 697750
37MAY 488729
38JUMPER, DOOR SWITCH
40MAY 686590
41MAY 3406109
42Bolt, 6-20 x 1 1/4
43MAY 3393909
44MAY 3387242
45MAY 342055
46RETAINER
50SCREW
51PANEL, FRONT (WHITE)
52MAY 696144
55SCREW
56MAY W10169687
59MAY W10155571
61Toe Panel (Includes Item. 2) (White)
62MAY 3387561
63BURNER ASSEMBLY 60 HZ. (TYPE 1, 2 & 3) (COPRECI)
64VALVE GAS 60 HZ. (COMPLETE)
65SCREW
66Clip
67DAPENING PANEL
68BOOT, FOOT
69MAY 3405160
