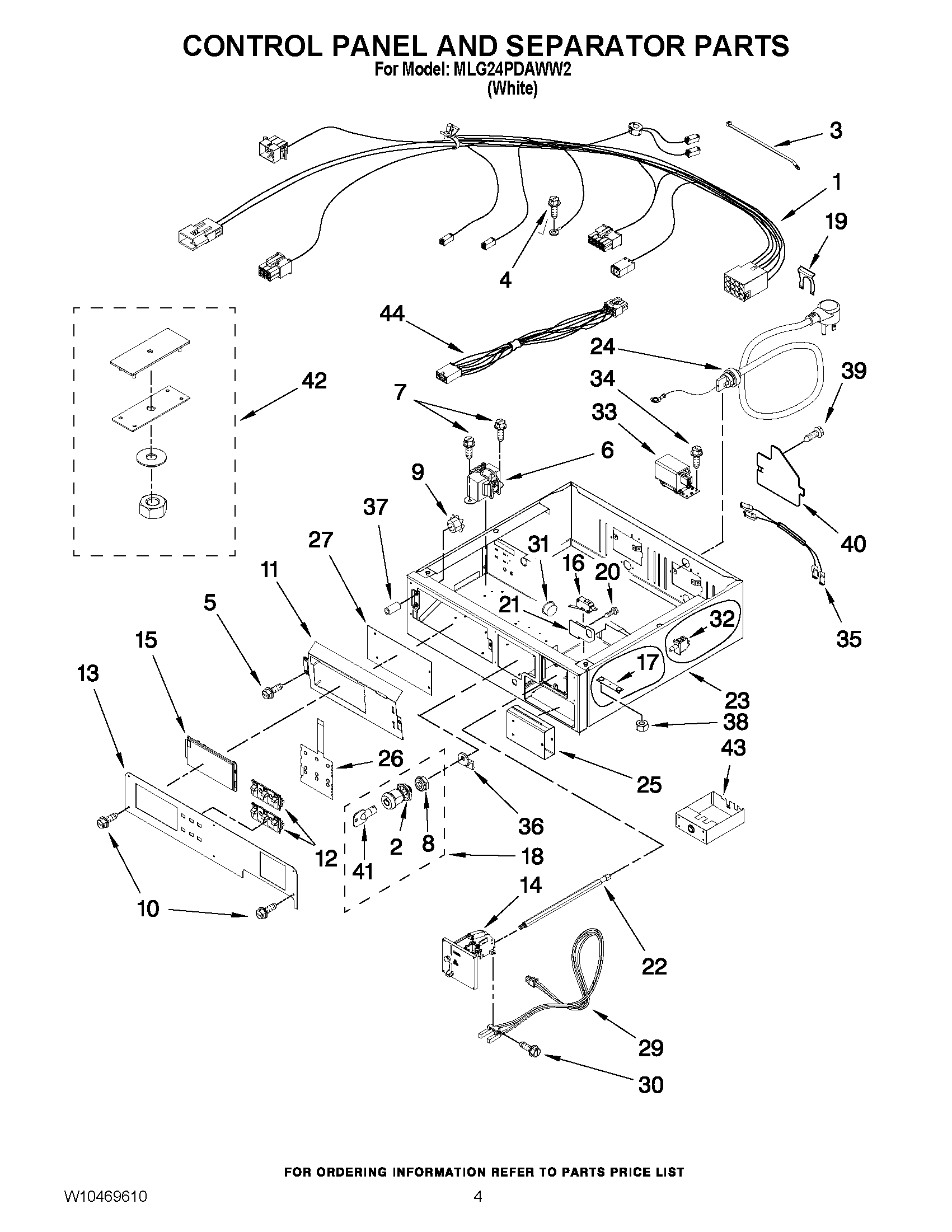

MLG24PDAWW2 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
1	MAY W10167621
2	NUT, HEX
3	MAY 8529895
4	Screw, 8-18 x 5/8 (External Ground)
5	MAY W10140652
6	MAY W10133285
8	NUT, HEX
9	NUT
10	SCREW
11	MAY W10163677
12	BUTTON, PUSH
13	MAY W10135185
14	ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
15	MAY W10133268
16	MAY W10447152
17	MOUNTING STRAP, WELD ASSEMBLY
18	ASSEMBLY, LOCK ACCESS DOOR
19	STRAIN-RELIEF CLIP
20	SCREW, 4-40 X 5/8
21	MAY W10160652
22	MAY W10137319
23	MAY W10159849
24	MAY W10239314
25	VAULT BODY, ASSEMBLY
26	MAY W10133278
27	MAY W10130700
29	COIN-OPTIC SENSOR ASSEMBLY (WHITE)
30	SCREW
31	MAY W10165297
32	MAY W10131838
33	FILTER, RFI
34	MAY 8533971
35	MAY W10188051
36	CAM-LOCK
37	STANDOFF, CIRCUIT BOARD
38	MAY W10080190
39	SCREW
40	MAY 3396795
41	KEY, ACCESS DOOR
42	MAY W10169579
43	COIN BOX
44	MAY W10111027
