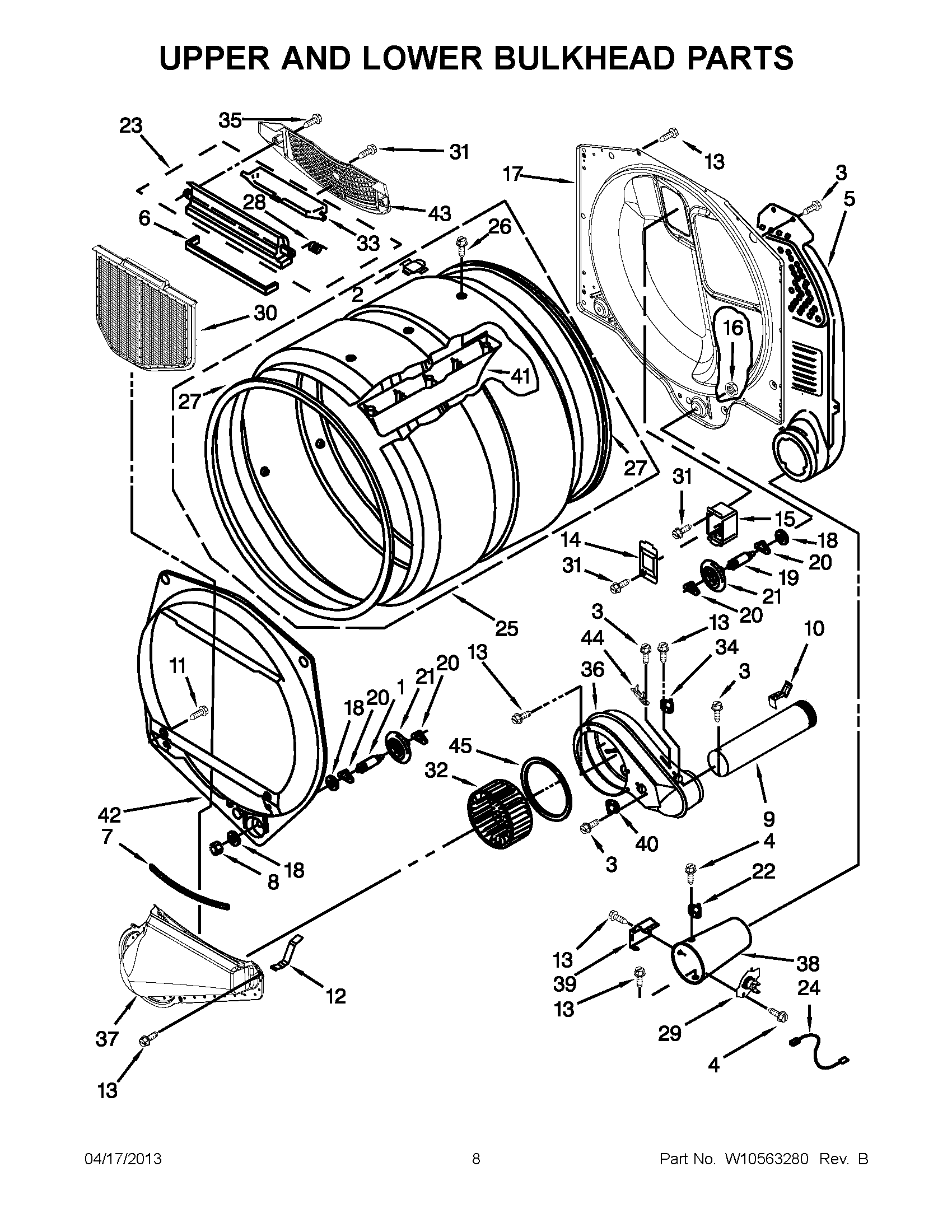

MLG24PDAWW3 04 – UPPER AND LOWER BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	Plug, Drum Hole
3	MAY 8533971
4	SCREW,8-18 X 3/8
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	SCREW
12	CLIP, SPRING
13	SCREW
14	MAY 3402841
15	MAY 8578825
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	THERMOSTAT, HI LIMIT
23	OUTLET HOUSING ASSEMBLY
24	WIRE JUMPER
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	Spring, Lint Screen Door
29	CUT-OFF, THERMAL
30	LINT SCREEN (WHITE)
31	Screw, 8-18 x 1/2
32	MAY W10349492
33	MAY W10181925
34	THERMOSTAT 155Â° F (ELECTRONIC)
35	SCREW
36	HOUSING, BLOWER
37	Lint Duct Assembly
38	MAY 8573824
39	MAY 338906
40	THERMOSTAT
41	BAFFLE, DRUM
42	BULKHEAD, FRONT
43	MAY W10181926
44	Fuse, Thermal (91 C)
45	SEAL, PLATE COVER
