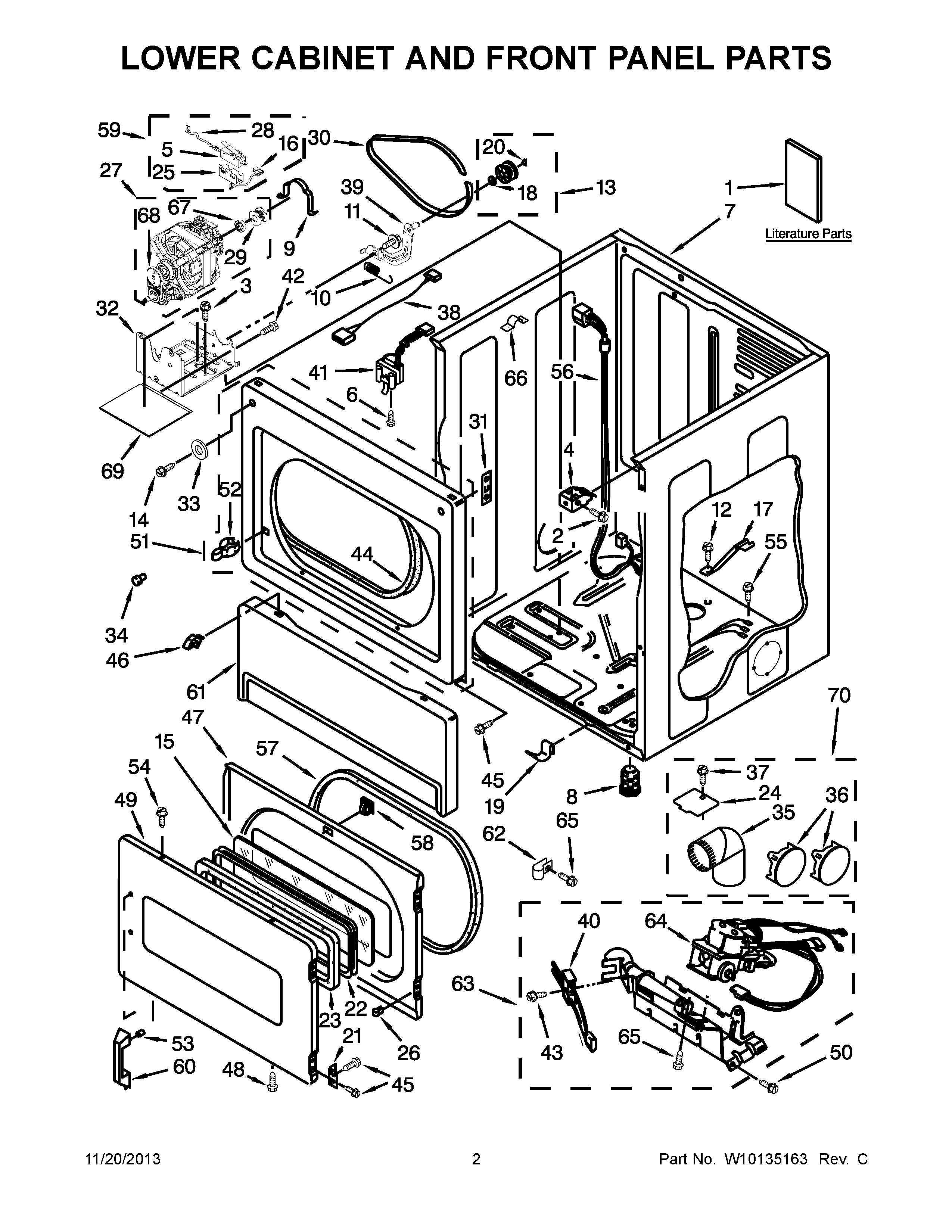

MLG24PDAXW0 02 – LOWER CABINET AND FRONT PANEL PARTS

MLG24PDAXW0 02 – LOWER CABINET AND FRONT PANEL PARTS

Written by

in

MLG24PDAXW0 02 – LOWER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
1MAY W10135153
1MAY W10135168
2SCREW
3SCREW
4CLIP, FRONT PANEL
5Switch, Broken Belt
6SCREW
7MAY 8310656
8MAY 3392100
9MAY 660658
10MAY 3387374
11SCREW
12Screw
13ASSEMBLY, PULLEY
14SCREW
15WINDOW
16MAY 8539892
17MAY 8529757
18MAY 233520
19Clip (2)
20WASHER, TRI RING
21Hinge & Pin Assembly (2)
22MAY 3392914
23MAY 3392915
24MAY 3394331
25MAY 8564011
26Nut, Inner Door (4)
27MOTOR ASSEMBLY 60 HZ.
28Wire, Belt (To Protector)
30BELT, DRIVE
31MAY 3390902
32MAY W10135695
33WASHER
34BUMPER
35MAY 279731
36MAY 697750
37MAY 488729
38JUMPER, DOOR SWITCH
39PULLEY, MOTOR
40MAY 686590
41MAY 3406109
42Bolt, 6-20 x 1 1/4
43MAY 3393909
44MAY 3387242
45MAY 342055
46RETAINER
47MAY 3392905
48MAY 694091
49Door, Front
50SCREW
51Front Panel
52MAY 696144
53FASTENER
54SCREW
55SCREW
56MAY W10169687
57MAY 3390735
58MAY 3392538
59MAY W10155571
60Handle, Door
61Toe Panel (Includes Item. 2) (White)
62MAY 3387561
63MAY W10135231
64VALVE, GAS (60 HZ -COMPLETE)
65SCREW
66Clip
67MAY 3393657
68MAY 3405160
69DAPENING PANEL
70MAY 279818
