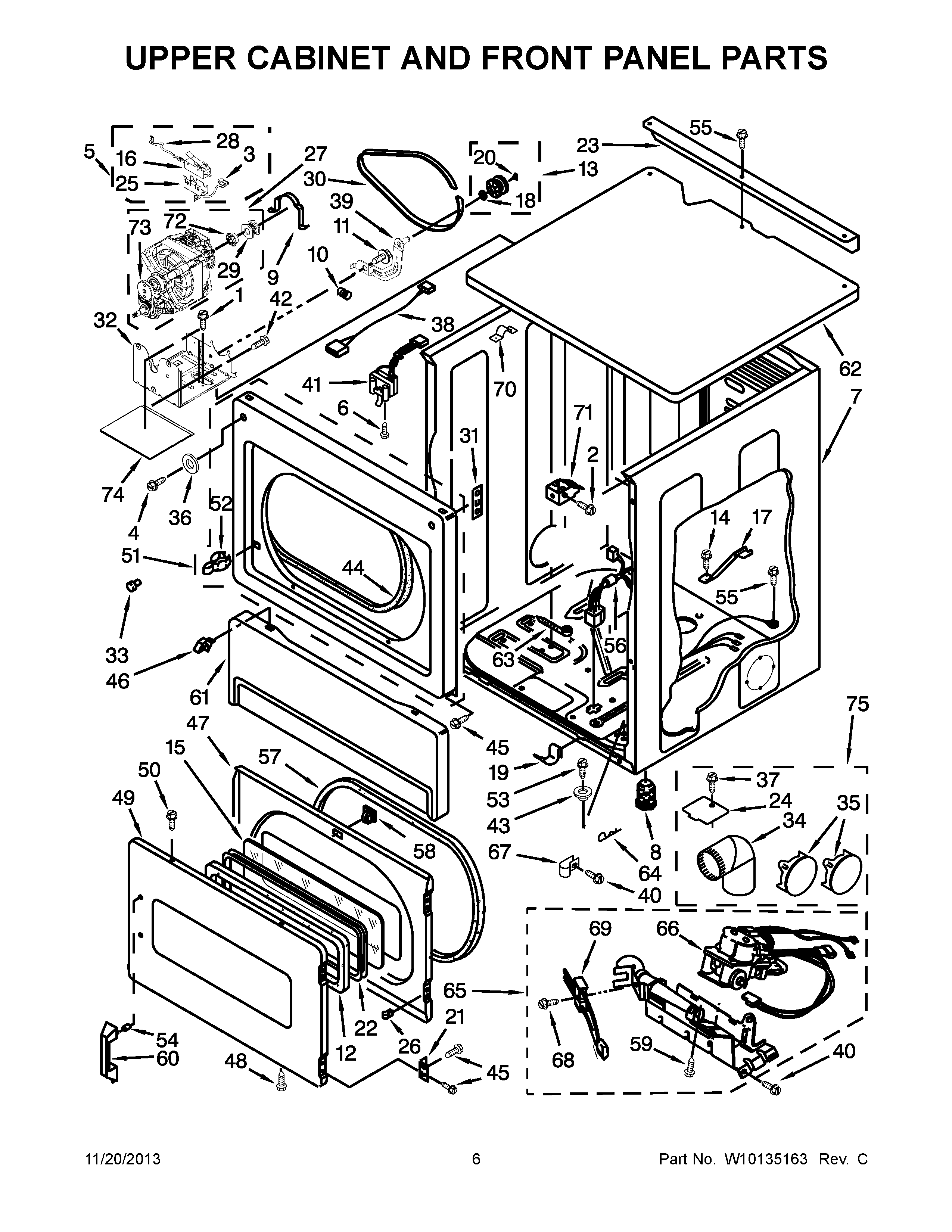

MLG24PDAXW0 04 – UPPER CABINET AND FRONT PANEL PARTS

MLG24PDAXW0 04 – UPPER CABINET AND FRONT PANEL PARTS

Written by

in

MLG24PDAXW0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
1SCREW
2SCREW
3MAY 8539892
4SCREW
5MAY W10155571
6SCREW
7MAY 3978859
8FOOT, DRYER PLASTIC
9MAY 660658
10MAY 3387374
11SCREW
12MAY 3392915
13ASSEMBLY, PULLEY
14Screw
15WINDOW
16Switch, Broken Belt
17MAY 8529757
18MAY 233520
19Clip (2)
20WASHER, TRI RING
21Hinge & Pin Assembly (2)
22MAY 3392914
23MAY 3979115
24MAY 3394331
25MAY 8564011
26Nut, Inner Door (4)
27MOTOR ASSEMBLY 60 HZ.
28Wire, Belt (To Protector)
29PULLEY, MOTOR
30BELT, DRIVE
31MAY 3390902
32MAY W10135695
33BUMPER
34MAY 279731
35MAY 697750
36WASHER
37MAY 488729
38JUMPER, DOOR SWITCH
39ASSEMBLY, IDLER
40SCREW
41MAY 3406109
42Bolt, 6-20 x 1 1/4
43MAY 3389233
44MAY 3387242
45MAY 342055
46RETAINER
47MAY 3392905
48MAY 694091
49Door, Front
50SCREW
51Front Panel
52MAY 696144
53BOLT, SECURITY
54FASTENER
55SCREW
56MAY W10169686
57MAY 3390735
58MAY 3392538
59SCREW
60Handle, Door
61Toe Panel (Includes Item. 2) (White)
62TOP (WHITE)
63MAY 3391018
64MAY 63823
65MAY W10135231
66VALVE, GAS (60 HZ -COMPLETE)
67MAY 3387561
68MAY 3393909
69MAY 686590
70Clip
71CLIP, FRONT PANEL
72MAY 3393657
73MAY 3405160
74DAPENING PANEL
75MAY 279818
