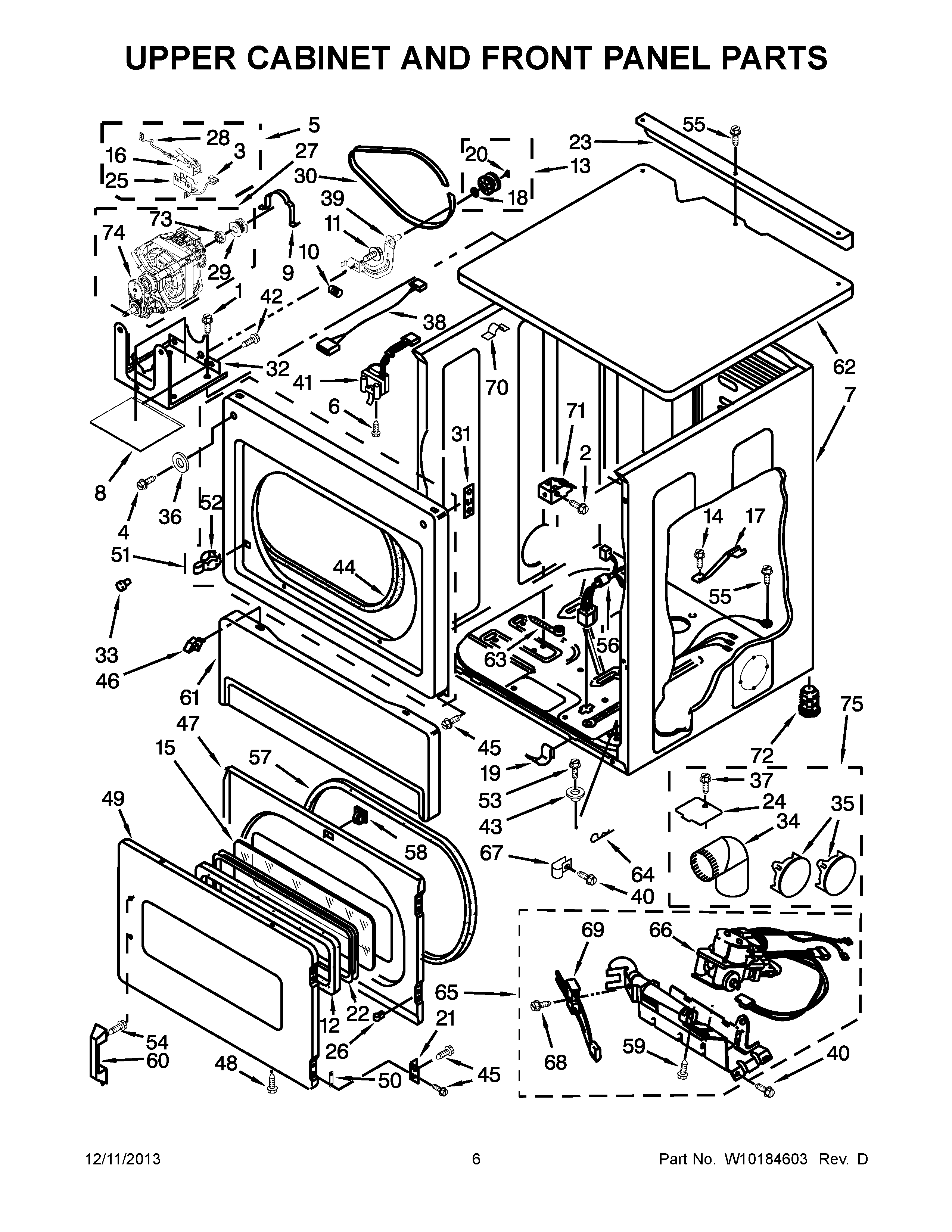

MLG24PDAXW1 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	MAY 8539892
4	SCREW
5	MAY W10155571
6	SCREW
7	MAY 3978859
8	DAPENING PANEL
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 3392915
13	ASSEMBLY, PULLEY
14	Screw
15	WINDOW
16	Switch, Broken Belt
17	MAY 8529757
18	MAY 233520
19	Clip (2)
20	WASHER, TRI RING
21	Hinge & Pin Assembly (2)
22	MAY 3392914
23	MAY 3979115
24	MAY 3394331
25	MAY 8564011
26	Nut, Inner Door (4)
27	MOTOR ASSEMBLY 60 HZ.
28	Wire, Belt (To Protector)
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	BUMPER
34	MAY 279731
35	MAY 697750
36	WASHER
37	MAY 488729
38	JUMPER, DOOR SWITCH
39	ASSEMBLY, IDLER
40	SCREW
41	MAY 3406109
42	Bolt, 6-20 x 1 1/4
43	MAY 3389233
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	DOOR, INNER (WHITE)
48	MAY 694091
49	DOOR, OUTER (WHITE)
50	PLUG, HINGE SCREW
51	PANEL, FRONT (WHITE)
52	MAY 696144
53	BOLT, SECURITY
54	Screw
55	SCREW
56	MAY W10169686
57	MAY 3390735
58	MAY 3392538
59	SCREW
60	MAY W10213202
61	Toe Panel (Includes Item. 2) (White)
62	TOP (WHITE)
63	MAY 3391018
64	MAY W10117347
65	MAY W10135231
66	VALVE, GAS (60 HZ -COMPLETE)
67	MAY 3387561
68	MAY 3393909
69	MAY 686590
70	Clip
71	CLIP, FRONT PANEL
72	FOOT, DRYER PLASTIC
73	MAY 3393657
74	MAY 3405160
75	MAY 279818
