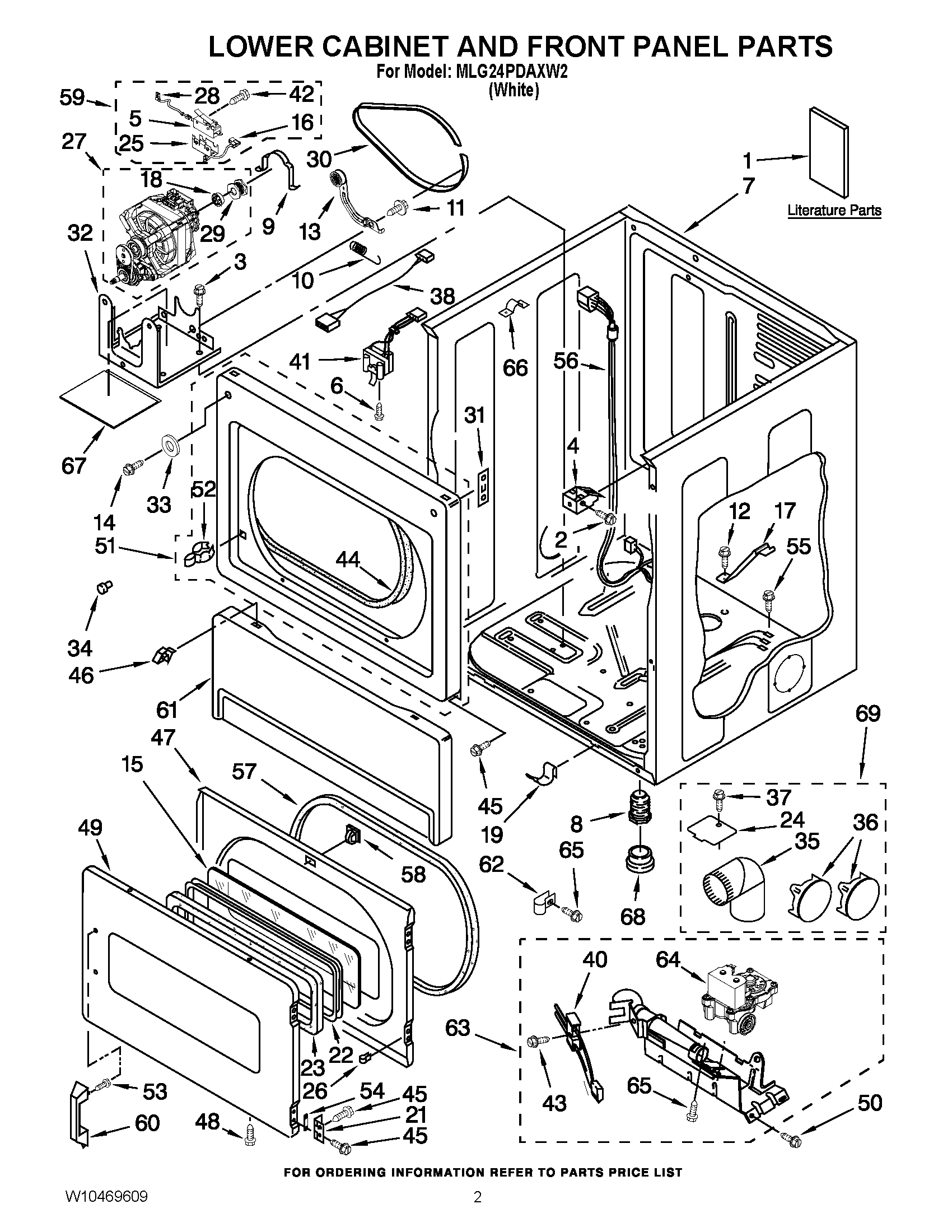

MLG24PDAXW2 01 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
NI	WINDOW PACK INCLUDES ILLUS. 1 & 4
NI	MAY 279818
1	MAY W10135168
1	MAY W10184580
1	MAY W10469609
2	SCREW
3	SCREW
4	CLIP, FRONT PANEL
5	Switch, Broken Belt
6	SCREW
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	Screw
13	MAY W10344192
14	SCREW
15	WINDOW
16	MAY 8539892
17	MAY 8529757
18	MAY 3393657
19	CLIP
21	ASSEMBLY, HINGE & PIN (SILVER)
22	MAY 3392914
23	MAY 3392915
24	MAY 3394331
25	MAY 8564011
26	Nut, Inner Door (4)
27	MOTOR ASSEMBLY 60 HZ.
28	Wire, Belt (To Protector)
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	WASHER
34	BUMPER
35	MAY 279731
36	MAY 697750
37	MAY 488729
38	JUMPER, DOOR SWITCH
40	MAY 686590
41	MAY 3406109
42	Bolt, 6-20 x 1 1/4
43	MAY 3393909
44	MAY 3387242
46	RETAINER
47	MAY W10323063
48	MAY 342055
49	MAY W10322548
50	SCREW
51	PANEL, FRONT (WHITE)
52	MAY 696144
53	Screw
54	PLUG, HINGE SCREW
55	SCREW
56	MAY W10169687
57	MAY 3390735
58	MAY 3392538
59	MAY W10155571
60	MAY W10213202
61	Toe Panel (Includes Item. 2) (White)
62	MAY 3387561
63	BURNER ASSEMBLY 60 HZ. (TYPE 1, 2 & 3) (COPRECI)
64	VALVE GAS 60 HZ. (COMPLETE)
65	SCREW
66	Clip
67	DAPENING PANEL
68	BOOT, FOOT
