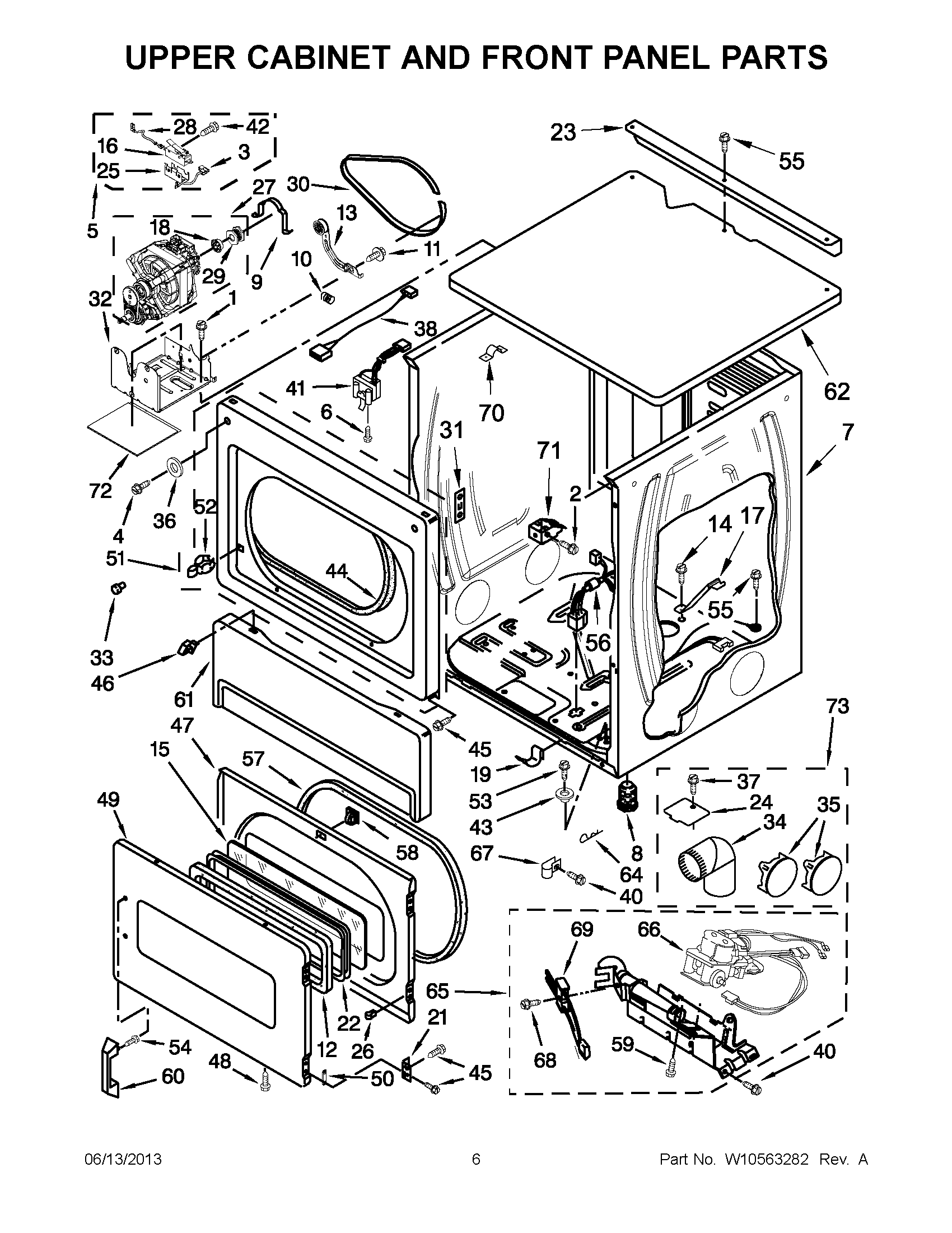

MLG24PDAXW3 03 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	MAY 8539892
4	SCREW
5	MAY W10155571
6	SCREW
7	MAY W10547697
8	FOOT, DRYER PLASTIC
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY 3392915
13	MAY W10344192
14	Screw
15	WINDOW
16	Switch, Broken Belt
17	MAY 8529757
18	MAY 3393657
19	CLIP
21	ASSEMBLY, HINGE & PIN (SILVER)
22	MAY 3392914
23	MAY 3979115
24	MAY 3394331
25	MAY 8564011
27	MAY W10396034
28	Wire, Belt (To Protector)
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	BUMPER
34	MAY 279731
35	MAY 697750
36	WASHER
37	MAY 488729
38	JUMPER, DOOR SWITCH
40	SCREW
41	MAY 3406109
42	Bolt, 6-20 x 1 1/4
43	MAY 3389233
44	MAY 3387242
46	RETAINER
47	MAY W10323063
48	MAY 342055
49	MAY W10322548
50	PLUG, HINGE SCREW
51	PANEL, FRONT (WHITE)
52	MAY 696144
53	BOLT, SECURITY
54	Screw
55	SCREW
56	MAY W10169686
57	MAY 3390735
58	MAY 3392538
59	SCREW
60	MAY W10213202
61	Toe Panel (Includes Item. 2) (White)
62	TOP (WHITE)
64	MAY W10117347
65	MAY W10135231
66	VALVE, GAS (60 HZ -COMPLETE)
67	MAY 3387561
68	MAY 3393909
69	MAY 686590
70	Clip
71	CLIP, FRONT PANEL
72	DAPENING PANEL
73	MAY 279818
