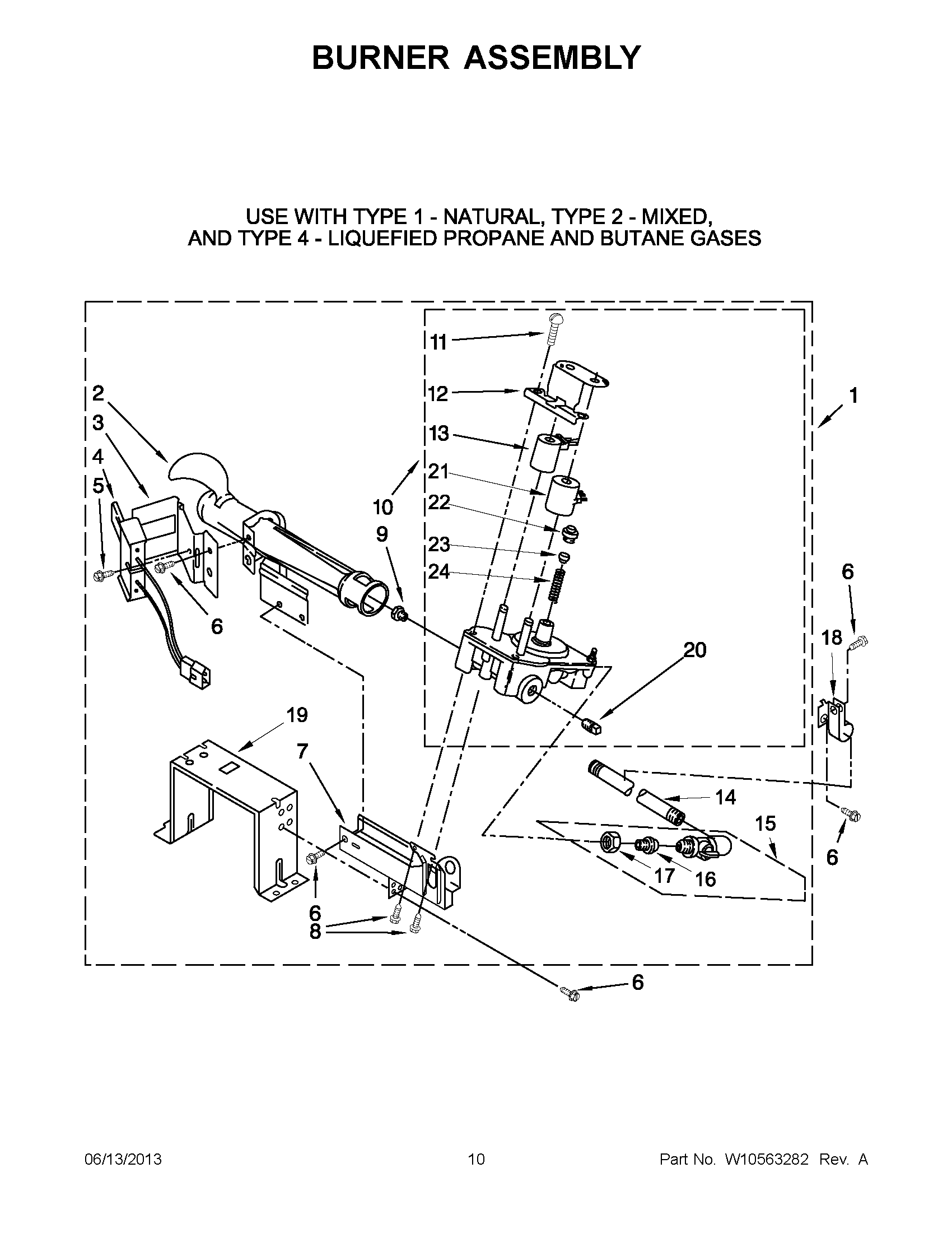

MLG24PDAXW3 05 – BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10135245
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10135231
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	Orifice, Burner (Type 1)
9	MAY 234868
10	VALVE, GAS (60 HZ -COMPLETE)
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	MAY W10110395
15	Valve & Union Shut-Off
16	MAY 3393767
17	MAY 233076
18	MAY 3387561
19	MAY 3389889
20	MAY 239822
21	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
22	MAY 694424
23	MAY 694423
24	MAY 694422
