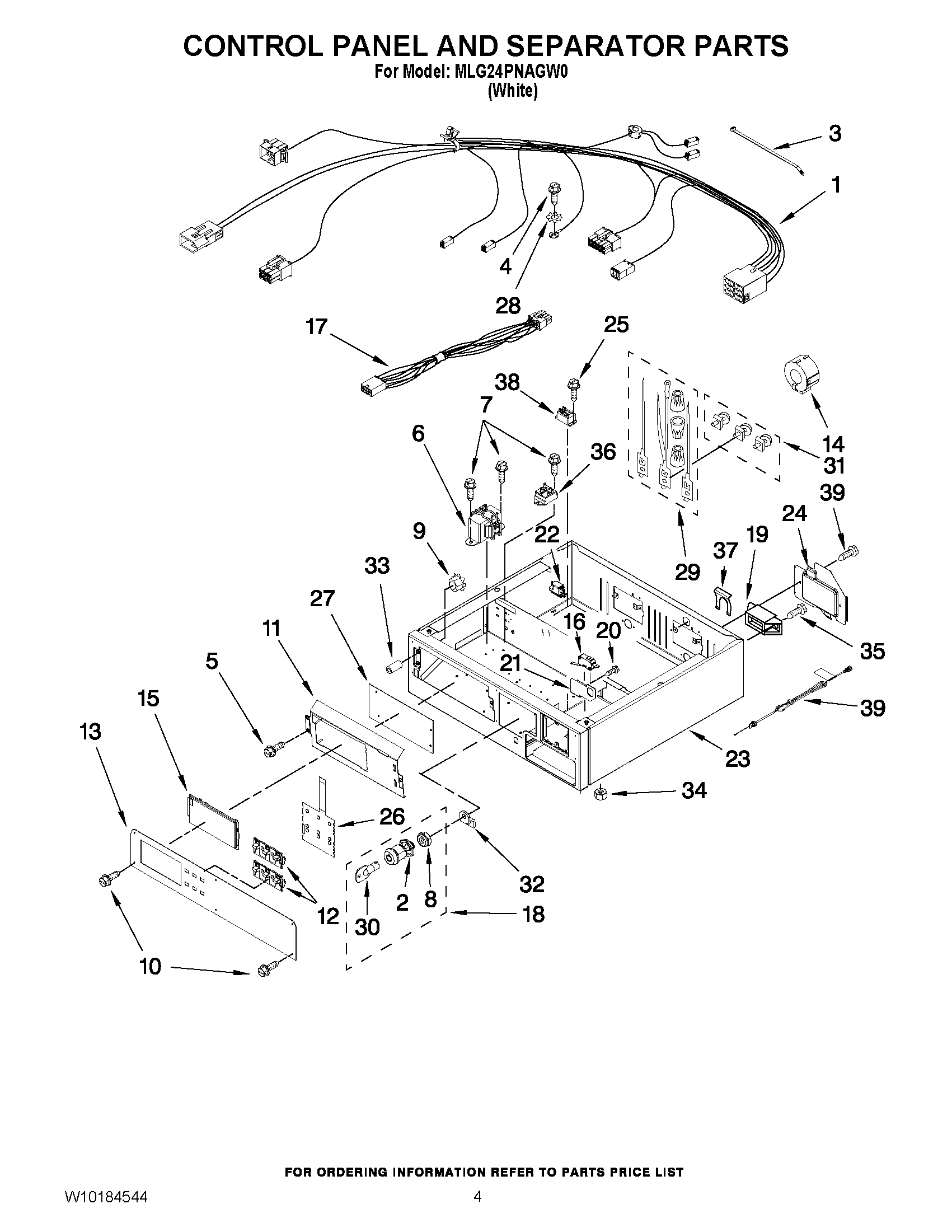

MLG24PNAGW0 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10223809
NI	MAY W10153836
NI	MAY W10223807
NI	MAY W10223804
1	MAY W10169700
2	NUT, HEX
3	MAY 8529895
4	Screw, 8-18 x 5/8 (External Ground)
5	MAY W10140652
6	MAY W10237957
7	MAY W10080820
8	NUT, HEX
9	NUT
10	MAY W10131119
11	MAY W10163677
12	BUTTON, PUSH
13	MAY W10135193
14	CHOKE, HARNESS
15	MAY W10133268
16	MAY W10133281
17	MAY W10111027
18	ASSEMBLY, LOCK ACCESS DOOR
19	MAY 3397659
20	SCREW, 4-40 X 5/8
21	MAY W10160652
22	MAY W10189038
23	MAY W10165714
24	MAY 3396795
25	MAY W10080700
26	MAY W10133278
27	MAY W10167611
28	RETAINER, TERMINAL
29	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
30	KEY, ACCESS DOOR
31	MAY 279393
32	MAY W10233256
33	STANDOFF, CIRCUIT BOARD
34	MAY W10080190
35	MAY W10080740
36	MAY W10133335
37	STRAIN-RELIEF CLIP
38	MAY W10258680
39	CORD, POWER
