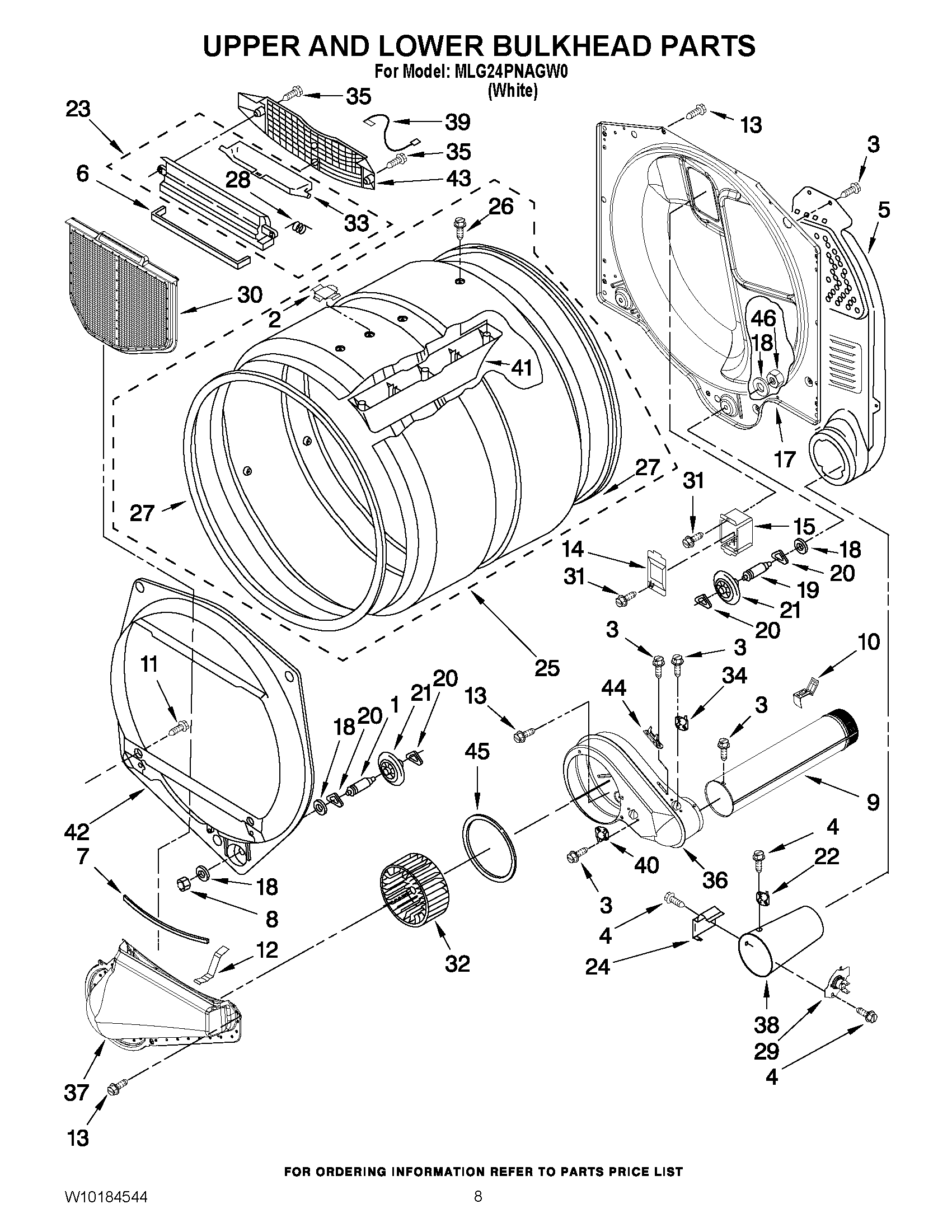

MLG24PNAGW0 04 – UPPER AND LOWER BULKHEAD PARTS
Written by
in
MLG24PNAGW0 04 – UPPER AND LOWER BULKHEAD PARTS
Products
Position
Product
1
MAY 8575324
2
CAP, PLUG
3
MAY W10080820
4
Screw, 6-20 x 3/8
5
MAY 3394346
6
MAY 697813
7
MAY 697814
8
NUT, 3/8 X 16 (R.H.)
9
Exhaust Pipe
10
CLIP, EXHAUST
11
MAY W10080590
12
CLIP-SPRING
13
MAY W10080700
14
MAY 3402841
15
MAY 8578825
17
MAY 8520836
18
MAY W10080960
19
MAY 8575325
20
WASHER, TRI RING
21
MAY 8536973
22
THERMOSTAT 255° F HIGH LIMIT
23
OUTLET HOUSING ASSEMBLY
24
MAY 338906
25
Complete Drum Assembly
26
MAY W10219342
27
MAY W10166807
28
Spring, Lint Screen Door
29
MAY W10181549
30
MAY W10049370
31
MAY 487909
32
MAY W10168564
33
MAY W10181925
34
THERMOSTAT, CYCLING (140F)
35
SCREW
36
MAY W10119255
37
Lint Duct Assembly
38
MAY 8573824
39
WIRE JUMPER
40
MAY W10206206
41
BAFFLE, DRUM
42
BULKHEAD, FRONT
43
MAY W10181926
44
Fuse, Thermal (91 C)
45
SEAL, PLATE COVER
46
MAY W10080190
←
