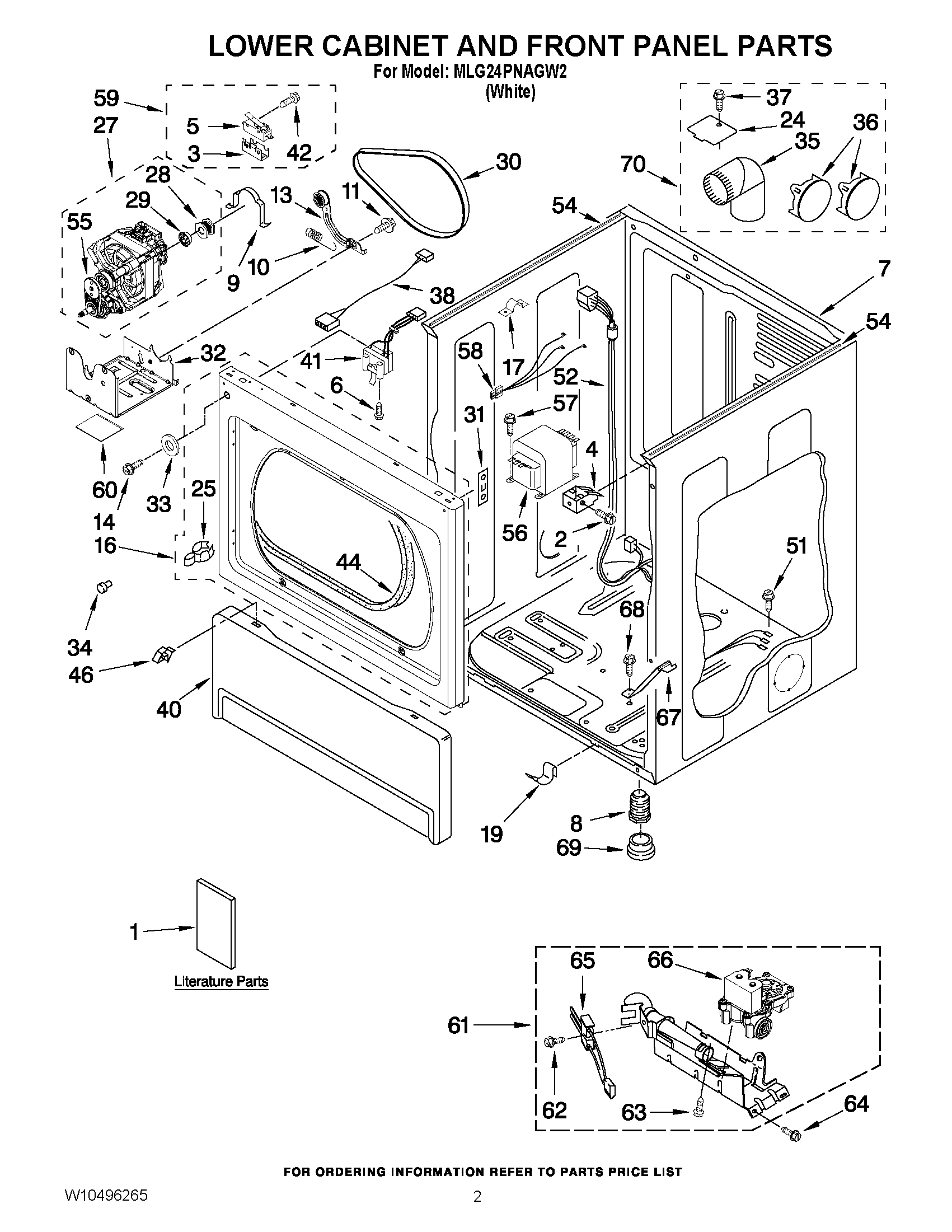

MLG24PNAGW2 01 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
NI	MAY 279818
1	MAY W10184555
1	MAY W10184546
2	SCREW
3	MAY 8564011
4	CLIP, FRONT PANEL
5	ASSEMBLY, SWITCH ACTUATOR
6	SCREW
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
13	MAY W10344192
14	SCREW
16	PANEL, FRONT
17	Clip
19	CLIP
24	MAY 3394331
25	MAY 696144
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10167237
29	MAY 3393657
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	MAY W10223794
34	BUMPER
35	MAY 279731
36	MAY 49252
37	MAY 488729
38	MAY W10231861
40	Toe Panel (Includes Item. 2) (White)
41	MAY W10237959
42	SCREW
44	MAY 3387242
46	RETAINER
51	SCREW
52	MAY W10386323
54	SEAL-FOAM (IEC)
55	MAY 3405160
56	MAY 3977633
57	SCREW
58	JUMPER, TRANSFORMER
59	ASSEMBLY, SWITCH
60	DAPENING PANEL
61	MAY W10469829
62	MAY 3393909
63	SCREW
64	SCREW
65	MAY 686590
66	MAY W10304603
67	MAY W10181903
68	Screw
69	BOOT, FOOT
