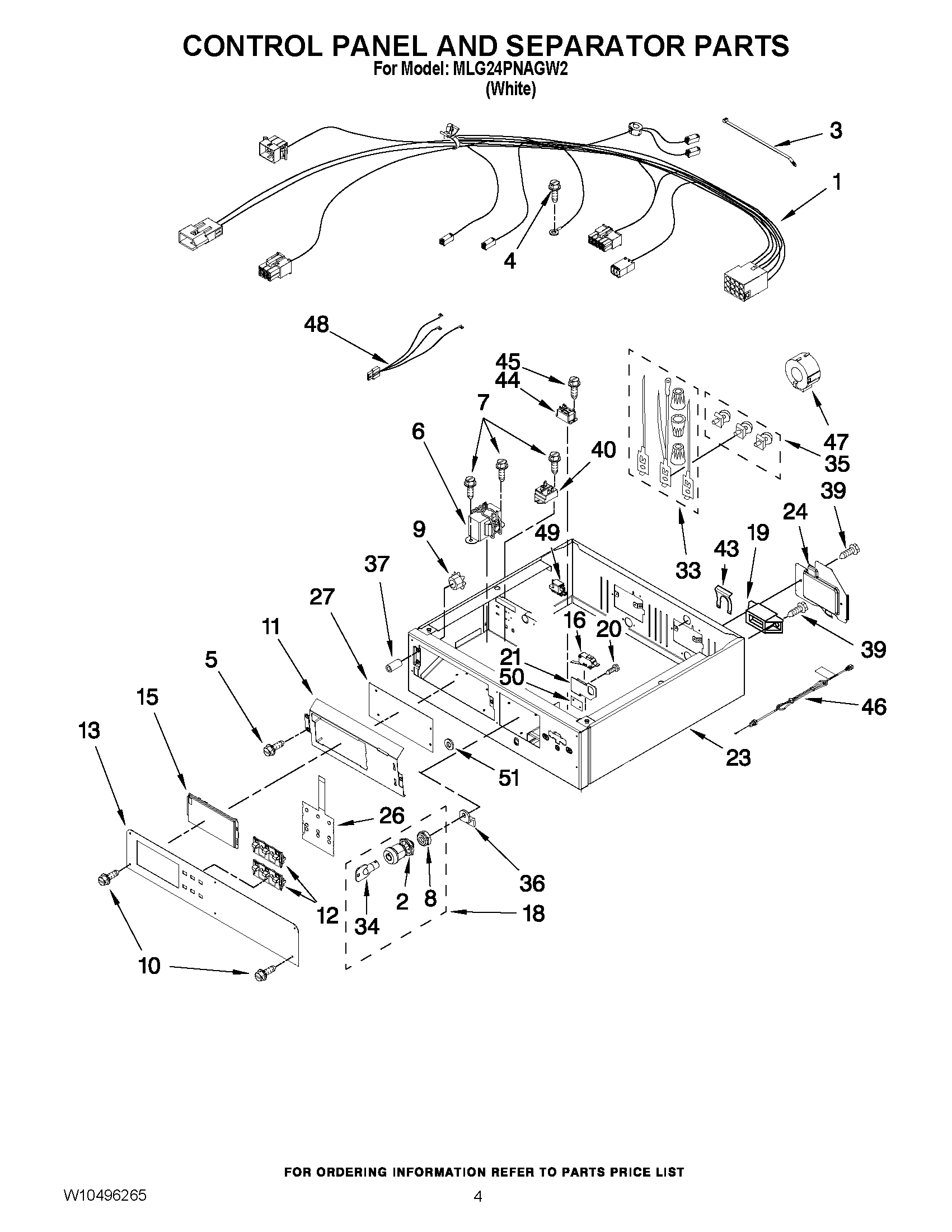

MLG24PNAGW2 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
NI	10A CORD LOCK
NI	10A CORD ADAPTER (EUROPEAN)
NI	10A CORD ADAPTER (BRITISH)
NI	MAY W10476818
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10169700
2	NUT, HEX
3	MAY 8529895
4	MAY 8533974
5	MAY W10140652
6	MAY W10237957
7	MAY 8533971
8	NUT, HEX
9	NUT
11	MAY W10163677
12	BUTTON, PUSH
13	MAY W10135193
15	MAY W10133268
16	MAY W10133281
18	ASSEMBLY, LOCK ACCESS DOOR
19	MAY 3397659
20	SCREW, 4-40 X 5/8
21	MAY W10160652
23	MAY W10165714
24	MAY 3396795
26	MAY W10133278
27	MAY W10167611
33	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
34	KEY, ACCESS DOOR
35	MAY 279393
36	MAY W10233256
37	STANDOFF, CIRCUIT BOARD
39	SCREW
40	MAY W10133335
43	STRAIN-RELIEF CLIP
44	MAY W10258680
45	SCREW
46	CORD-POWER
47	CHOKE, HARNESS
48	MAY W10111027
49	MAY W10189038
50	MAY W10151156
51	MAY 2006252
