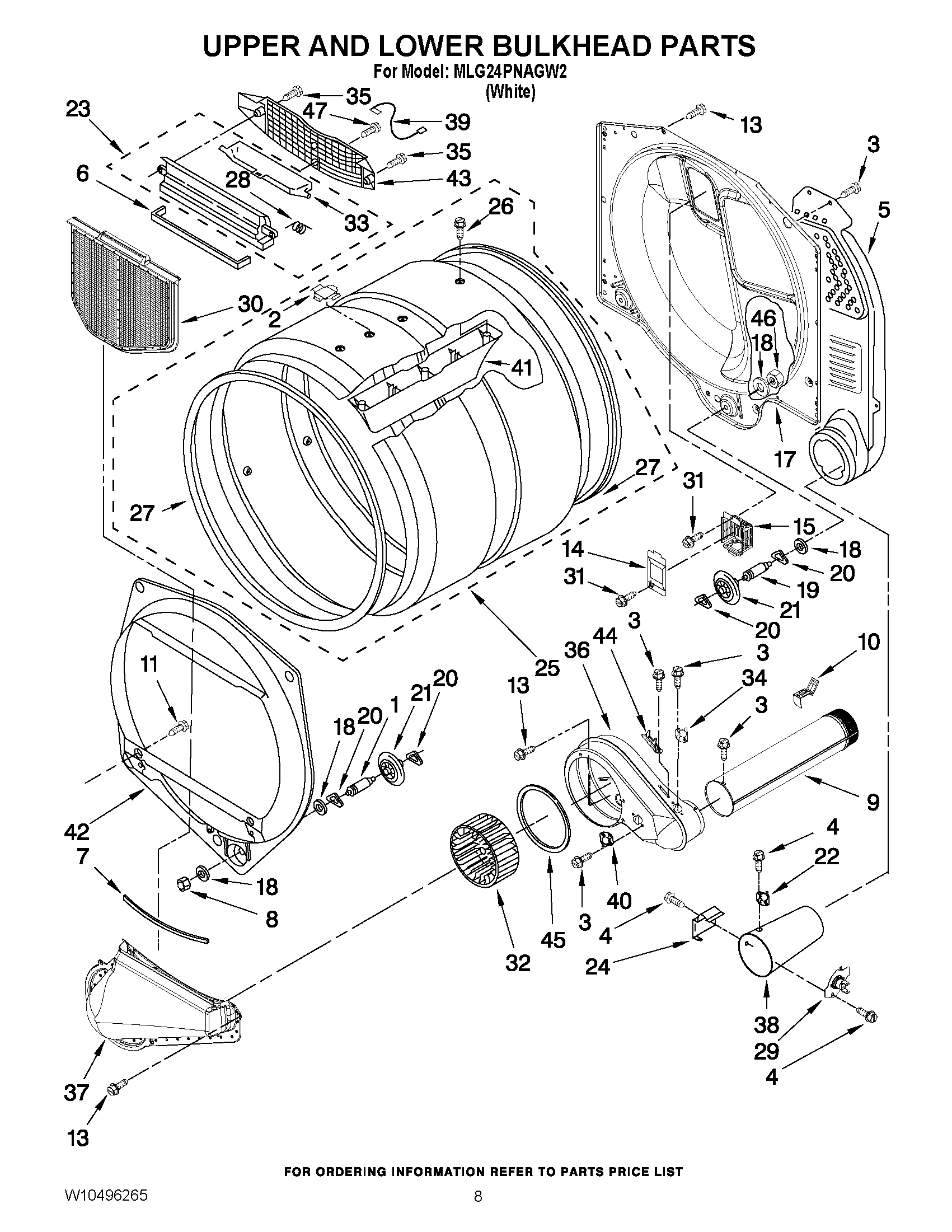

MLG24PNAGW2 04 – UPPER AND LOWER BULKHEAD PARTS

MLG24PNAGW2 04 – UPPER AND LOWER BULKHEAD PARTS

Written by

in

MLG24PNAGW2 04 – UPPER AND LOWER BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2CAP, PLUG
3MAY 8533971
4SCREW,8-18 X 3/8
5MAY 3394346
6MAY 697813
7MAY 697814
8NUT, HEX
9Exhaust Pipe
10CLIP, EXHAUST
11SCREW
13Screw
14MAY 3402841
15MAY 8578825
17MAY 8520836
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22THERMOSTAT 255° F HIGH LIMIT
23OUTLET HOUSING ASSEMBLY
24MAY 338906
25Complete Drum Assembly
26MAY W10219342
27MAY W10166807
28Spring, Lint Screen Door
29MAY W10181549
30MAY W10049370
31SCREW
32MAY W10349492
33MAY W10181925
34THERMOSTAT, CYCLING (140F)
35SCREW
36MAY W10119255
37Lint Duct Assembly
38MAY 8573824
39WIRE JUMPER
40MAY W10206206
41BAFFLE, DRUM
42BULKHEAD, FRONT
43MAY W10181926
44Fuse, Thermal (91 C)
45SEAL, PLATE COVER
46NUT, HEX (LEFT HAND THREAD)
47Screw, 8-18 x 1/2
