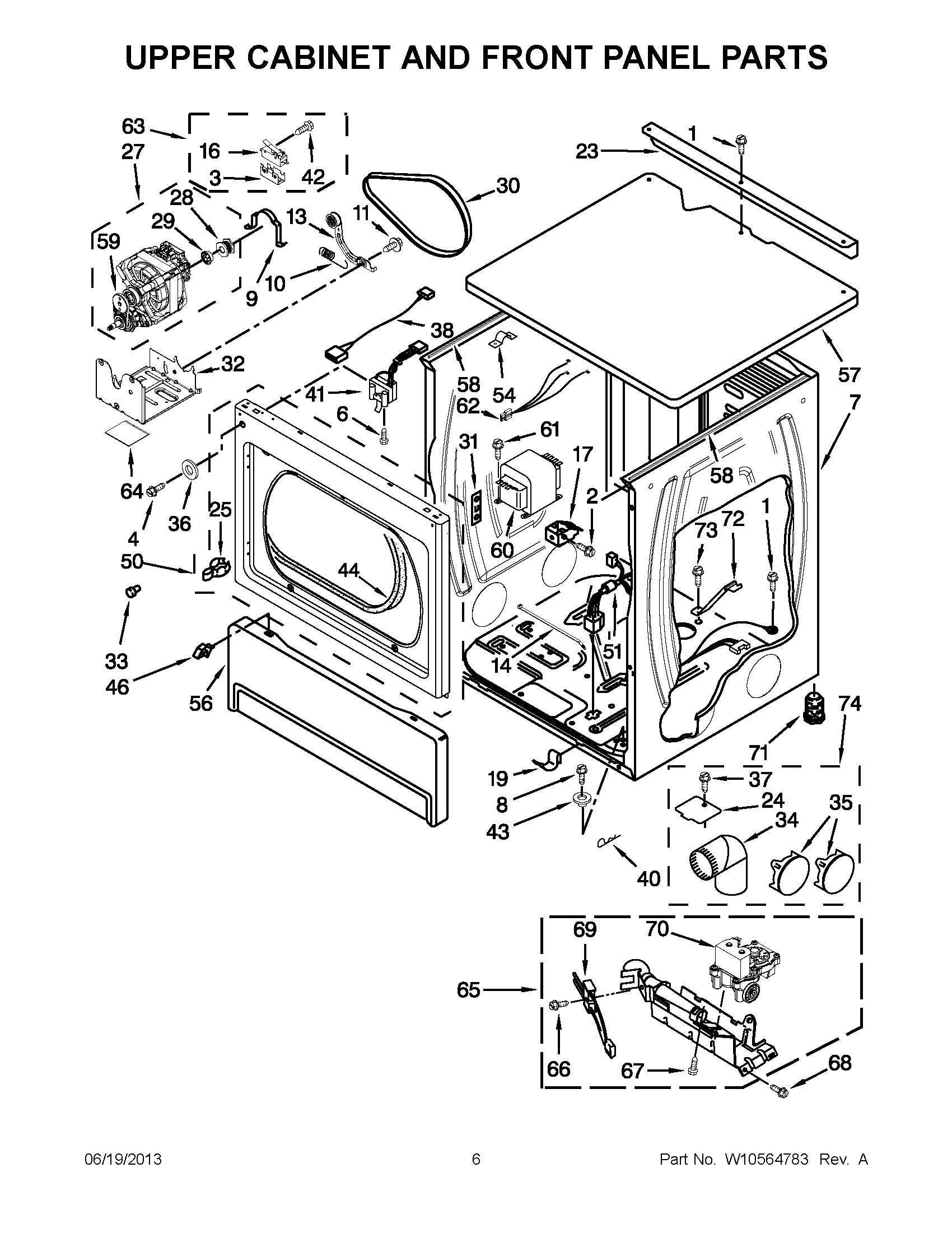

MLG24PNAGW3 03 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	MAY 8564011
4	SCREW
6	SCREW
7	MAY W10547697
8	BOLT, SECURITY
9	MAY 660658
10	MAY W10446781
11	SCREW
13	MAY W10344192
14	MAY 8529895
16	ASSEMBLY, SWITCH ACTUATOR
17	CLIP, FRONT PANEL
19	CLIP
23	MAY 3979115
24	MAY 3394331
25	MAY 696144
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10167237
29	MAY 3393657
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	BUMPER
34	MAY 279731
35	MAY 49252
36	MAY W10223794
37	MAY 488729
38	MAY W10231861
40	MAY W10117347
41	MAY W10237959
42	SCREW
43	MAY 3389233
44	MAY 3387242
46	RETAINER
50	PANEL, FRONT
51	MAY W10386322
54	Clip
56	Toe Panel (Includes Item. 2) (White)
57	TOP (WHITE)
58	SEAL-FOAM (IEC)
59	MAY 3405160
60	MAY 3977633
61	SCREW
62	JUMPER, TRANSFORMER
63	ASSEMBLY, SWITCH
64	DAPENING PANEL
65	MAY W10469829
66	MAY 3393909
67	SCREW
68	SCREW
69	MAY 686590
70	MAY W10304603
71	FOOT, DRYER PLASTIC
72	MAY W10181903
73	Screw
74	MAY 279818
