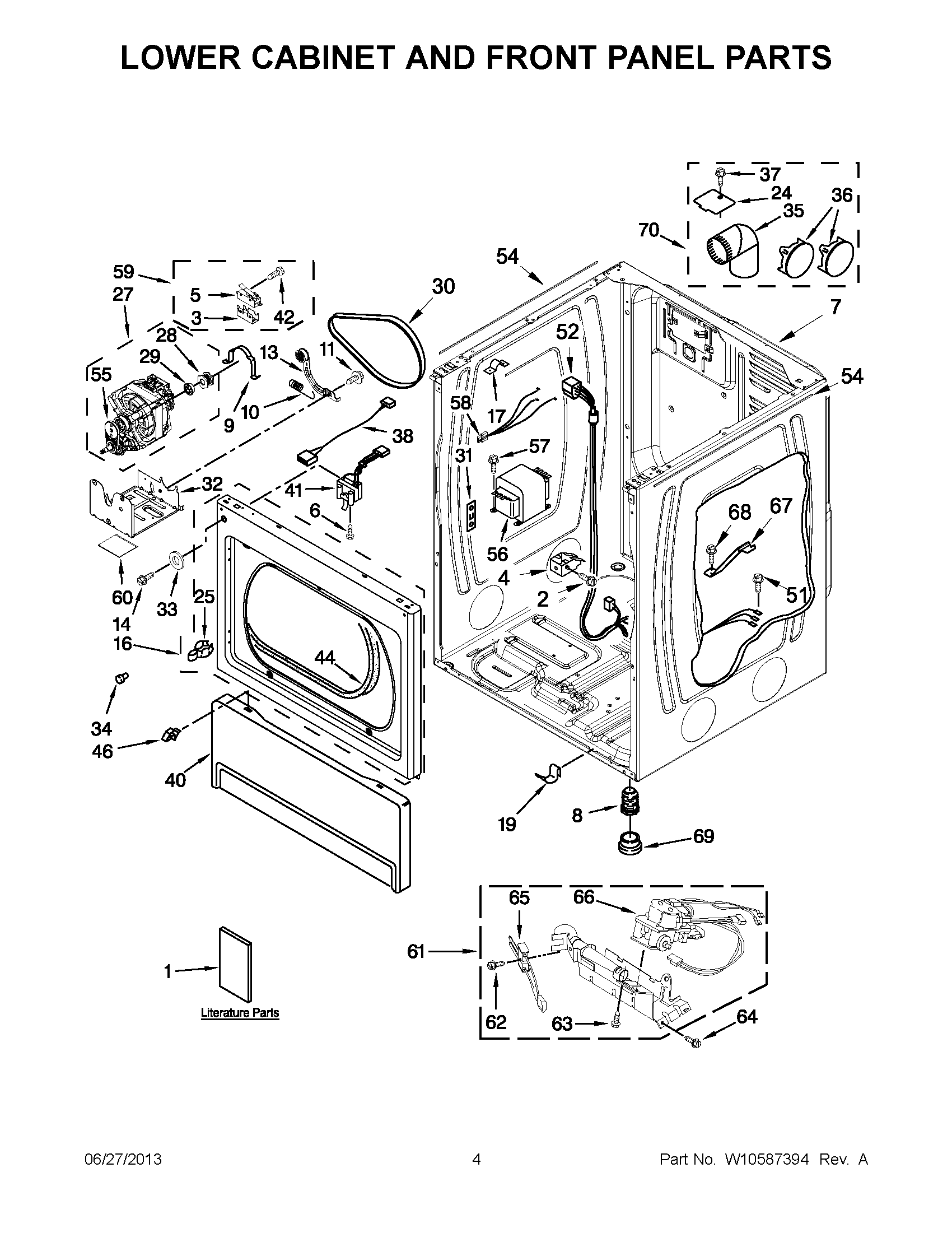

MLG24PNAGW4 02 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	MAY W10184546
1	MAY W10184555
2	SCREW
3	MAY 8564011
4	CLIP, FRONT PANEL
5	ASSEMBLY, SWITCH ACTUATOR
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
13	MAY W10344192
14	SCREW
16	PANEL, FRONT
17	Clip
19	CLIP
24	MAY 3394331
25	MAY 696144
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10167237
29	MAY 3393657
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	MAY W10223794
34	BUMPER
35	MAY 279731
36	MAY 49252
37	MAY 488729
38	MAY W10231861
40	Toe Panel (Includes Item. 2) (White)
41	MAY W10237959
42	SCREW
44	MAY 3387242
46	RETAINER
51	SCREW
52	MAY W10386323
54	SEAL-FOAM (IEC)
55	MAY 3405160
56	MAY 3977633
57	SCREW
58	JUMPER, TRANSFORMER
59	ASSEMBLY, SWITCH
60	DAPENING PANEL
61	MAY W10096909
62	MAY 3393909
63	SCREW
64	SCREW
65	MAY 686590
66	VALVE, GAS 50 HZ. (COMPLETE)
67	MAY W10181903
68	Screw
69	BOOT, FOOT
70	MAY 279818
