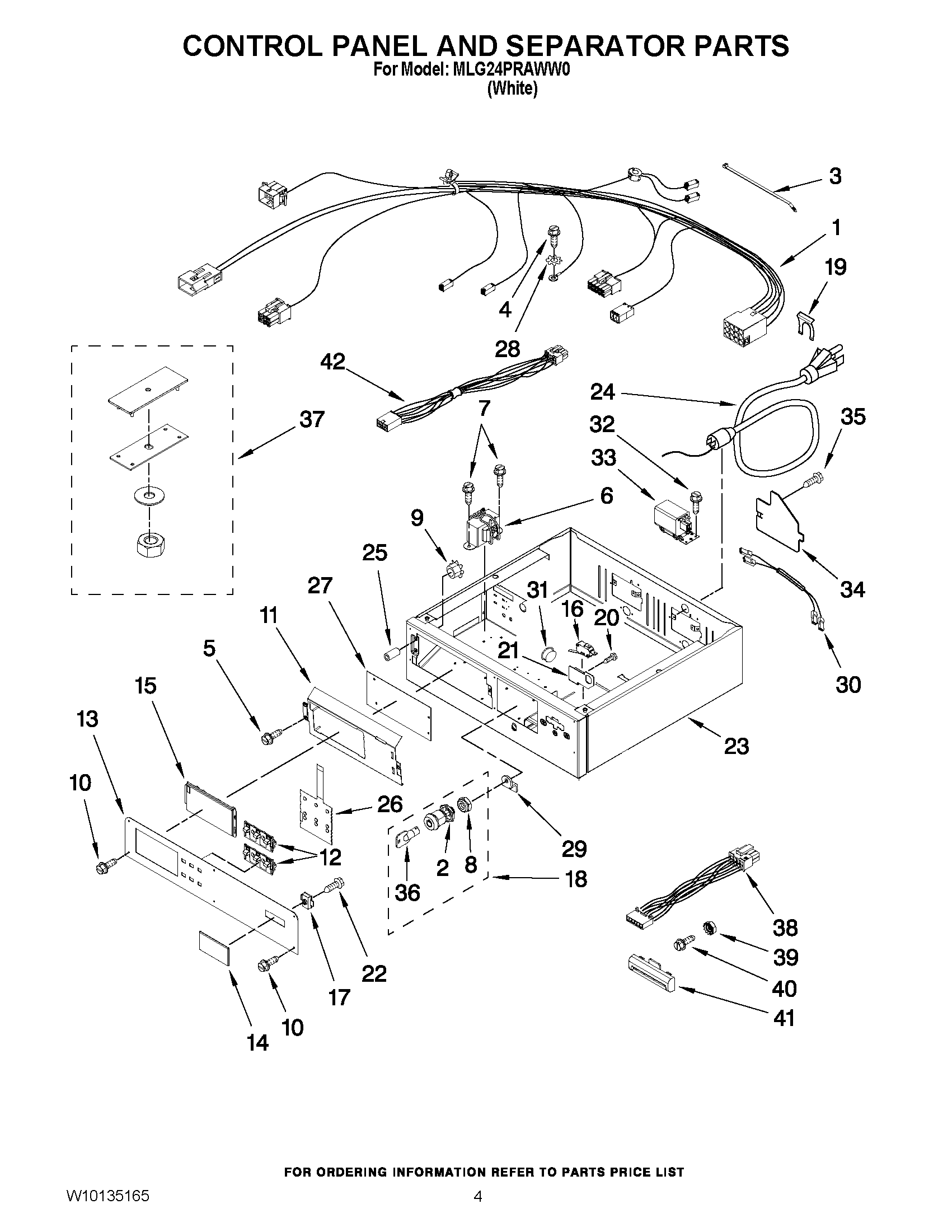

MLG24PRAWW0 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
1MAY W10167620
2NUT, HEX
3MAY 8529895
4Screw, 8-18 x 5/8 (External Ground)
5MAY W10140652
6MAY W10133285
8NUT, HEX
10MAY W10131119
11MAY W10163677
12BUTTON, PUSH
13MAY W10135186
14COVER, CARD READER
15MAY W10133268
16MAY W10133280
17MAY W10145157
18ASSEMBLY, LOCK ACCESS DOOR
19STRAIN-RELIEF CLIP
20SCREW, 4-40 X 5/8
21MAY W10160652
22MAY 3400618
23MAY W10165714
24MAY 694018
25STANDOFF, CIRCUIT BOARD
26MAY W10133277
27MAY W10130700
28RETAINER, TERMINAL
29CAM-LOCK
30MAY W10188051
31MAY W10165297
32MAY 8533971
33RFI-Filter
34MAY 3396795
35SCREW
36KEY, ACCESS DOOR
37MAY W10169579
38MAY W10133305
39NUT
40SCREW
41MAY W10163036
42MAY W10111027
