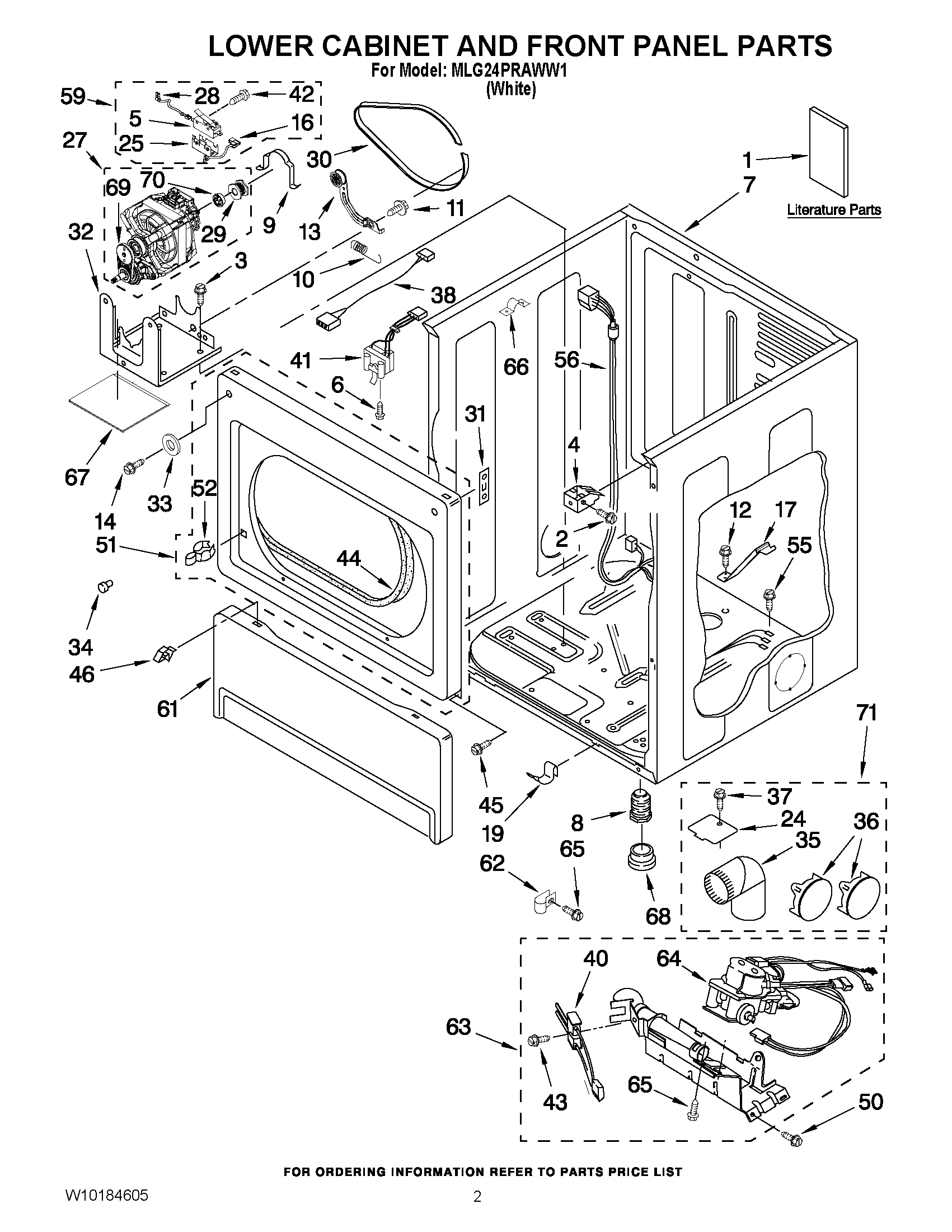

MLG24PRAWW1 01 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
NI	MAY 279818
1	INSTALLATION INSTRUCTIONS CR
1	MAY W10184580
1	MAY W10184605
1	MAY W10135168
2	SCREW
3	SCREW
4	CLIP, FRONT PANEL
5	Switch, Broken Belt
6	SCREW
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	Screw
13	ASSEMBLY, IDLER
14	SCREW
16	MAY 8539892
17	MAY 8529757
19	Clip (2)
24	MAY 3394331
25	MAY 8564011
27	MOTOR ASSEMBLY 60 HZ.
28	Wire, Belt (To Protector)
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	WASHER
34	BUMPER
35	MAY 279731
36	MAY 697750
37	MAY 488729
38	JUMPER, DOOR SWITCH
40	MAY 686590
41	MAY 3406109
42	Bolt, 6-20 x 1 1/4
43	MAY 3393909
44	MAY 3387242
45	MAY 342055
46	RETAINER
50	SCREW
51	PANEL, FRONT (WHITE)
52	MAY 696144
55	SCREW
56	MAY W10169687
59	MAY W10155571
61	Toe Panel (Includes Item. 2) (White)
62	MAY 3387561
63	MAY W10135231
64	Valve & Union Shut-Off
65	SCREW
66	Clip
67	DAPENING PANEL
68	BOOT, FOOT
69	MAY 3405160
70	MAY 3393657
