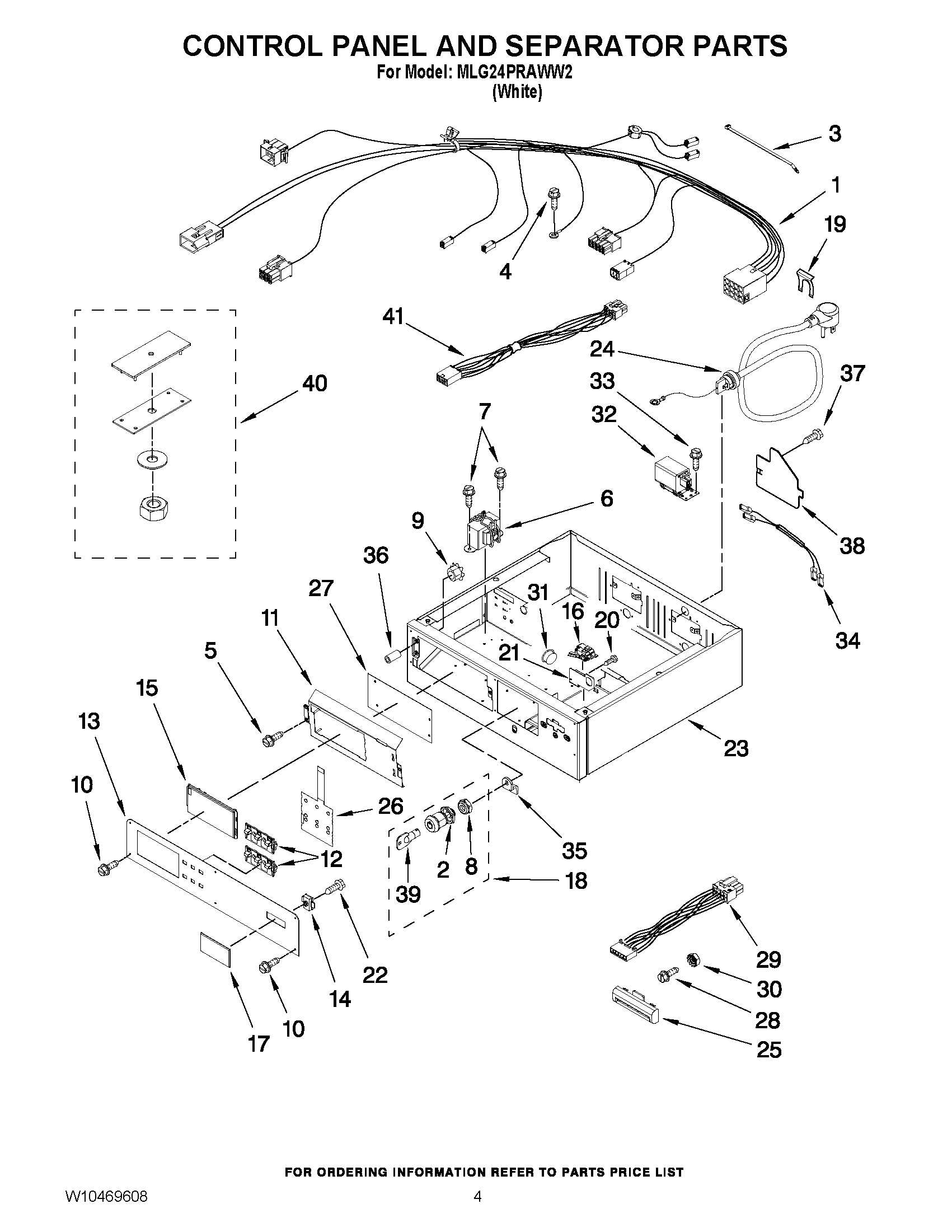

MLG24PRAWW2 02 – CONTROL PANEL AND SEPARATOR PARTS

MLG24PRAWW2 02 – CONTROL PANEL AND SEPARATOR PARTS

Written by

in

MLG24PRAWW2 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
1MAY W10167620
2NUT, HEX
3MAY 8529895
4Screw, 8-18 x 5/8 (External Ground)
5MAY W10140652
6MAY W10133285
8NUT, HEX
10SCREW
11MAY W10163677
12BUTTON, PUSH
13MAY W10135186
14MAY W10145157
15MAY W10133268
16MAY W10447152
17COVER, CARD READER
18ASSEMBLY, LOCK ACCESS DOOR
19STRAIN-RELIEF CLIP
20SCREW, 4-40 X 5/8
21MAY W10160652
22MAY 3400618
23MAY W10165714
24MAY W10239314
25MAY W10163036
26MAY W10133278
27MAY W10130700
28SCREW
29MAY W10239515
30NUT
31MAY W10165297
32FILTER, RFI
33MAY 8533971
34MAY W10188051
35CAM-LOCK
36STANDOFF, CIRCUIT BOARD
37SCREW
38MAY 3396795
39KEY, ACCESS DOOR
40MAY W10169579
41MAY W10111027
