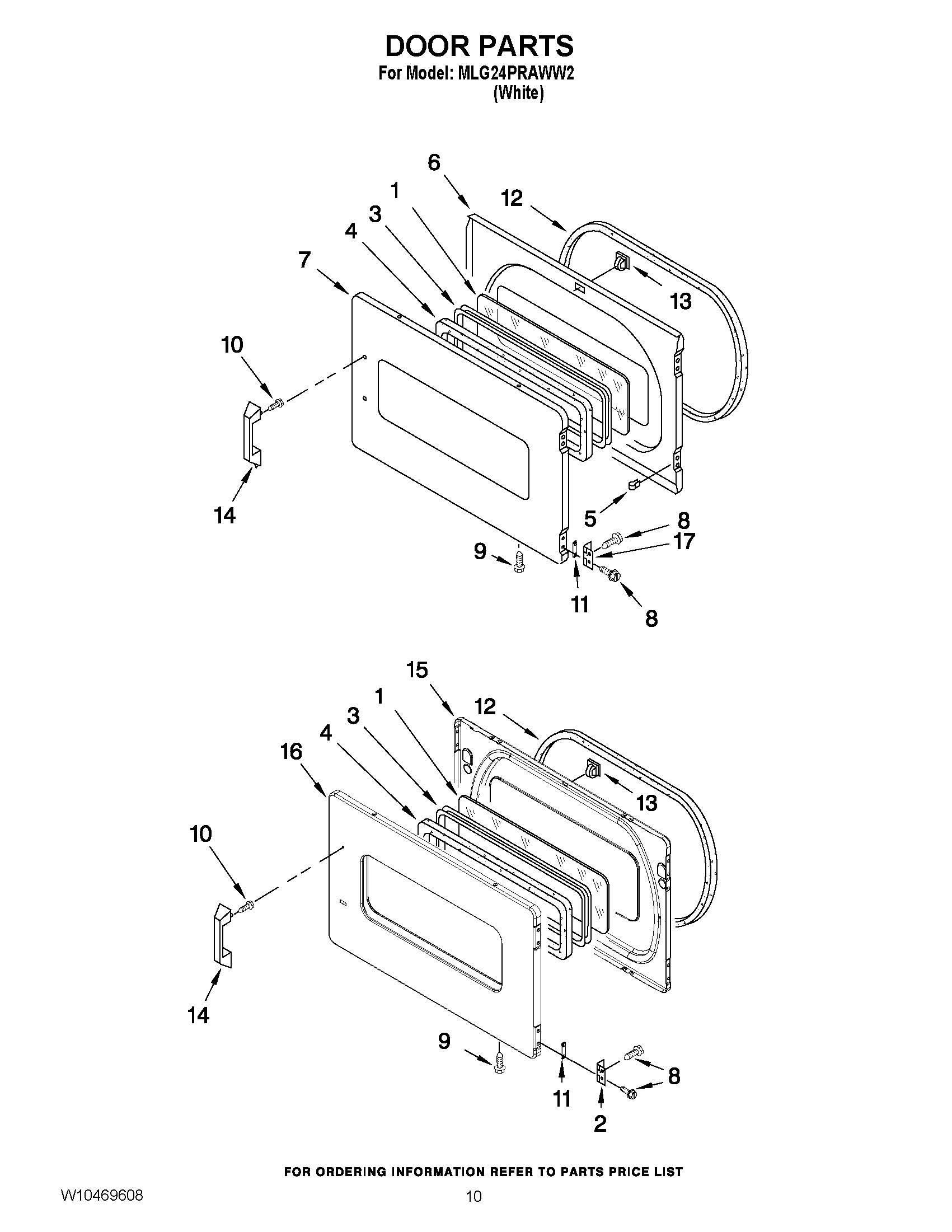

MLG24PRAWW2 05 – DOOR PARTS

MLG24PRAWW2 05 – DOOR PARTS

Written by

in

MLG24PRAWW2 05 – DOOR PARTS

Products

Position	Product
NI	WINDOW PACK INCLUDES ILLUS. 1 & 4
1	WINDOW
2	ASSEMBLY, HINGE & PIN (SILVER)
3	MAY 3392914
4	MAY 3392915
5	Nut, Inner Door (4)
6	DOOR, INNER (WHITE)
7	DOOR, OUTER (WHITE)
9	MAY 342055
10	Screw
11	PLUG, HINGE SCREW
12	MAY 3390735
13	MAY 3392538
14	MAY W10213202
15	MAY W10323063
16	MAY W10322548
17	Hinge & Pin Assembly (2)
