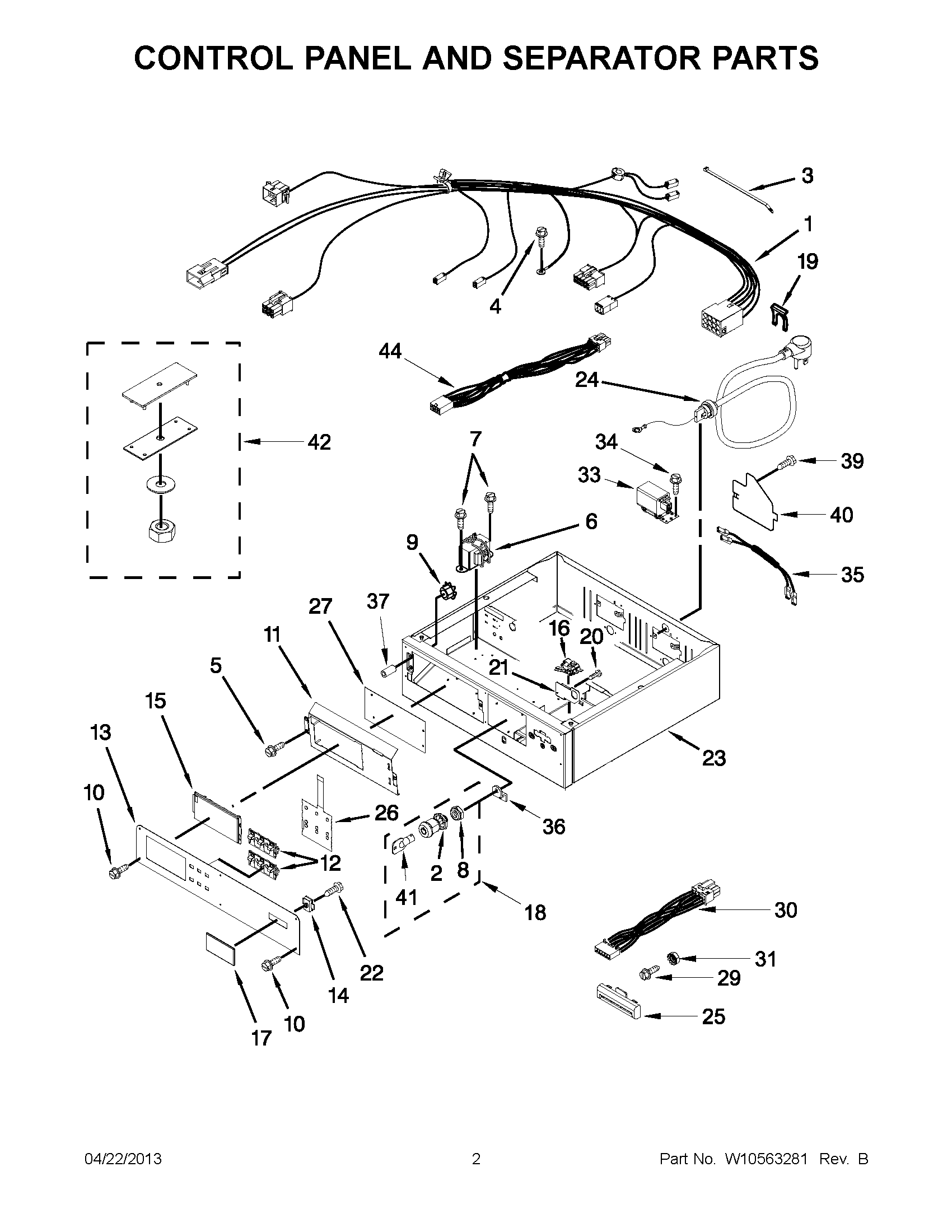

MLG24PRAWW3 01 – CONTROL PANEL AND SEPARATOR PARTS

MLG24PRAWW3 01 – CONTROL PANEL AND SEPARATOR PARTS

Written by

in

MLG24PRAWW3 01 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
1MAY W10167620
2NUT, HEX
3MAY 8529895
4MAY 8533974
5MAY W10140652
6MAY W10133285
8NUT, HEX
10SCREW
11MAY W10163677
12BUTTON, PUSH
13MAY W10135186
14MAY W10145157
15MAY W10133268
16MAY W10447152
17COVER, CARD READER
18ASSEMBLY, LOCK ACCESS DOOR
19STRAIN-RELIEF CLIP
20SCREW, 4-40 X 5/8
21MAY W10160652
22MAY 3400618
23MAY W10165714
24MAY W10239314
25MAY W10163036
26MAY W10133278
27MAY W10130700
29SCREW
30MAY W10239515
31NUT
33FILTER, RFI
34MAY 8533971
35MAY W10188051
36CAM-LOCK
37STANDOFF, CIRCUIT BOARD
39SCREW
40MAY 3396795
41KEY, ACCESS DOOR
42MAY W10169579
44MAY W10111027
