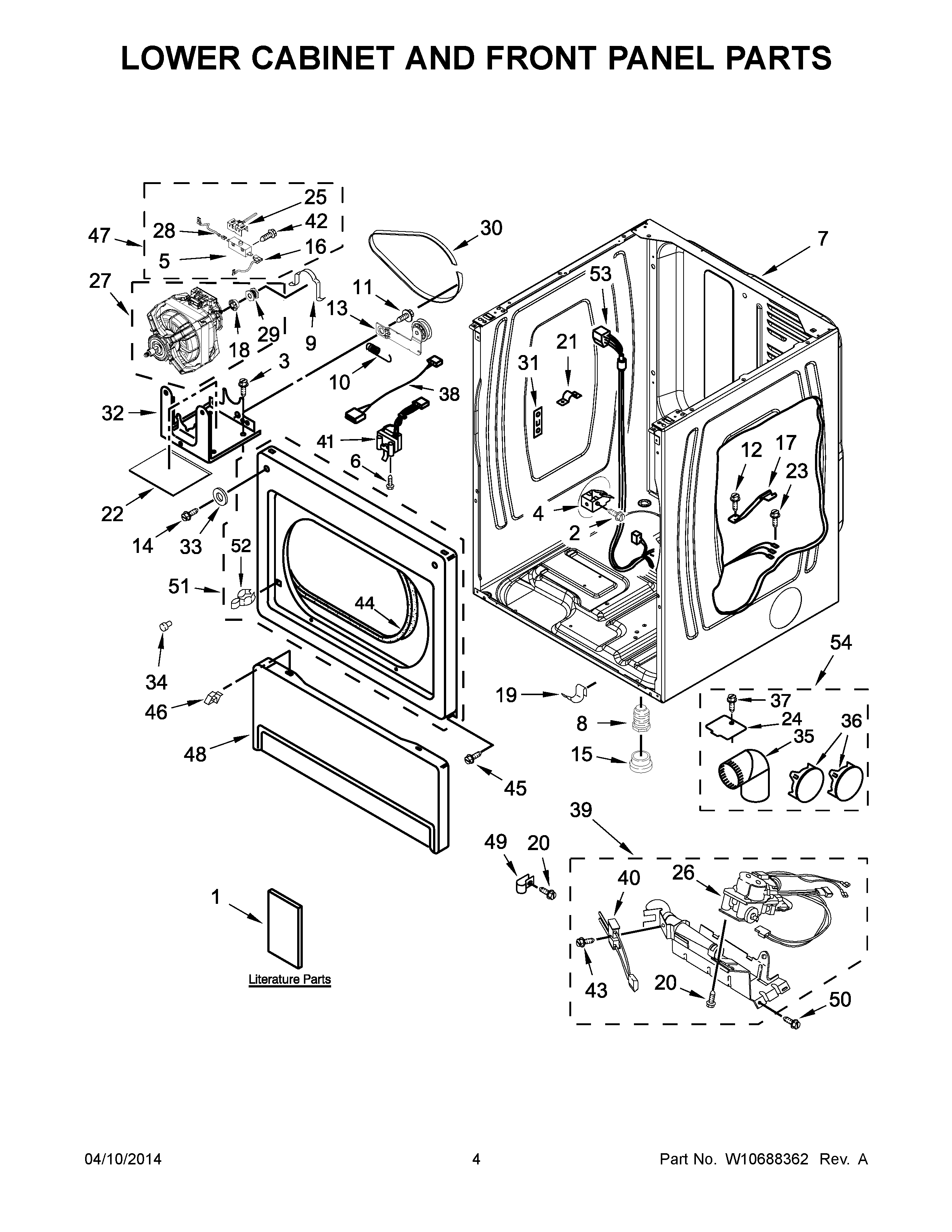

MLG25PRAWW0 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	MAY W10169684
1	MAY W10135168
1	INSTALLATION INSTRUCTIONS CR
1	MAY W10688523
2	SCREW
3	SCREW
4	CLIP, FRONT PANEL
5	MAY 3394881
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	Screw
13	PULLEY-IDLER ASSEMBLY
14	SCREW
15	BOOT, FOOT
16	Wire, Jumper (Broken Belt Switch)
17	MAY 8529757
18	MAY 3393657
19	CLIP
20	SCREW
21	Clip
22	DAPENING PANEL
23	SCREW
24	MAY 3394331
25	MAY 8066120
26	VALVE, GAS (60 HZ -COMPLETE)
27	MOTOR
28	MAY W10167612
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3390902
32	MAY 3387118
33	WASHER
34	BUMPER
35	MAY 49026
36	MAY 697750
37	MAY 488729
38	JUMPER, DOOR SWITCH
39	MAY W10135231
40	MAY 686590
41	MAY 3406109
42	Screw, 6-20 x 1-1/16
43	MAY 3393909
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	Switch, Broken Belt
48	Toe Panel (Includes Item. 2) (White)
49	MAY 3387561
50	SCREW
51	PANEL, FRONT (WHITE)
52	MAY 696144
53	MAY W10169687
54	MAY 279818
