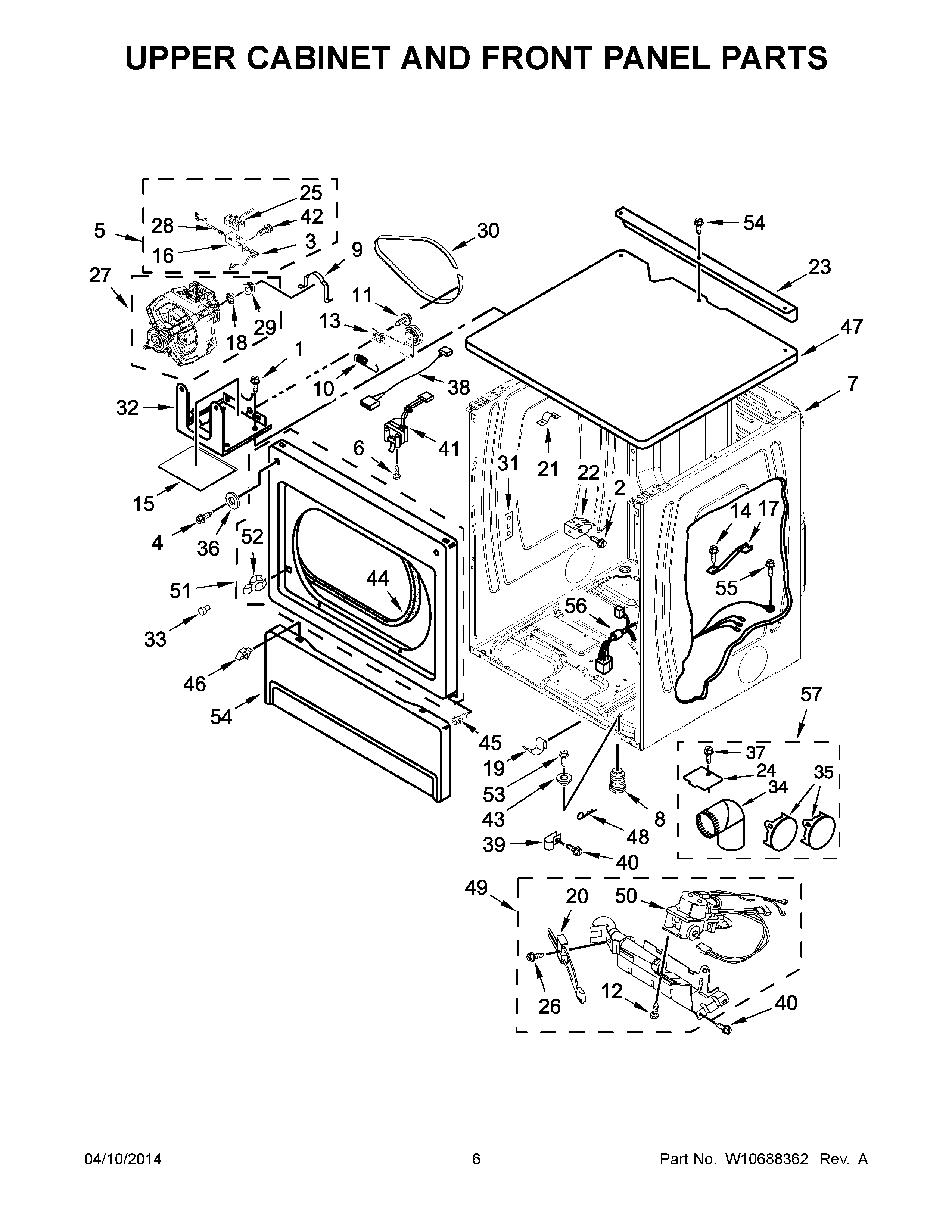

MLG25PRAWW0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	Wire, Jumper (Broken Belt Switch)
4	SCREW
5	Switch, Broken Belt
6	SCREW
7	MAY W10547697
8	FOOT, DRYER PLASTIC
9	MAY 660658
10	MAY W10446781
11	SCREW
12	SCREW
13	PULLEY-IDLER ASSEMBLY
14	Screw
15	DAPENING PANEL
16	MAY 3394881
17	MAY 8529757
18	MAY 3393657
19	CLIP
20	MAY 686590
21	Clip
22	CLIP, FRONT PANEL
23	MAY 3979115
24	MAY 3394331
25	MAY 8066120
26	MAY 3393909
27	MOTOR
28	MAY W10167612
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3390902
32	MAY 3387118
33	BUMPER
34	MAY 49026
35	MAY 697750
36	WASHER
37	MAY 488729
38	JUMPER, DOOR SWITCH
39	MAY 3387561
40	SCREW
41	MAY 3406109
42	Screw, 6-20 x 1-1/16
43	MAY 3389233
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	TOP (WHITE)
48	MAY W10117347
49	MAY W10135231
50	VALVE, GAS (60 HZ -COMPLETE)
51	PANEL, FRONT (WHITE)
52	MAY 696144
53	BOLT, SECURITY
54	Toe Panel (Includes Item. 2) (White)
55	SCREW
56	MAY W10169686
57	MAY 279818
