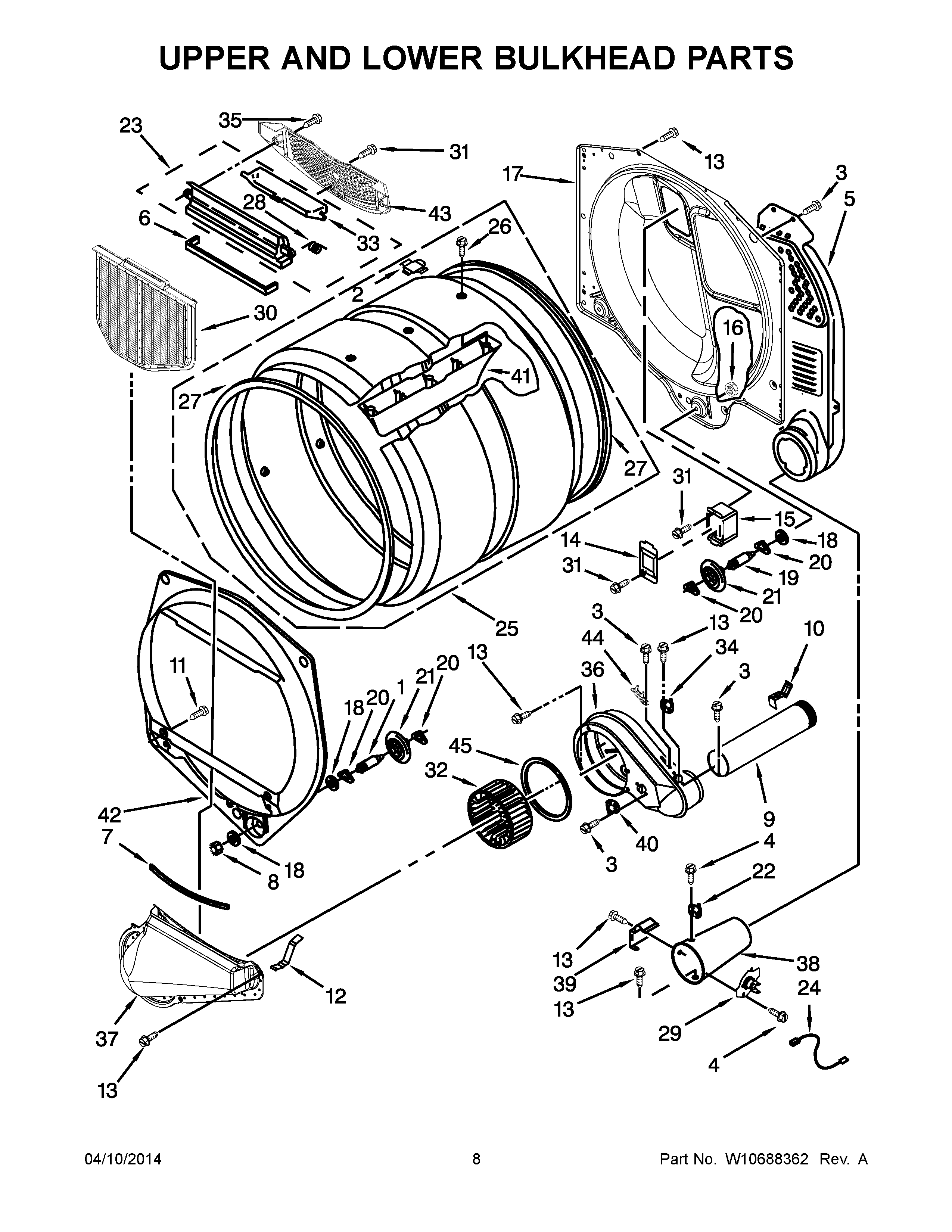

MLG25PRAWW0 05 – UPPER AND LOWER BULKHEAD PARTS

MLG25PRAWW0 05 – UPPER AND LOWER BULKHEAD PARTS

Written by

in

MLG25PRAWW0 05 – UPPER AND LOWER BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2Plug, Drum Hole
3MAY 8533971
4SCREW,8-18 X 3/8
5MAY 3394346
6MAY 697813
7MAY 697814
8NUT, HEX
9PIPE, EXHAUST
10CLIP, EXHAUST
11SCREW
12CLIP, SPRING
13SCREW
14MAY 3402841
15MAY 8578825
16NUT, HEX (LEFT HAND THREAD)
17MAY 8520836
18WASHER
19MAY 8575325
20WASHER, TRI RING
21ROLLER, SUPPORT
22THERMOSTAT, HI LIMIT
23OUTLET HOUSING ASSEMBLY
24WIRE JUMPER
25ASSEMBLY, DRUM
26MAY W10219342
27MAY W10521118
28Spring, Lint Screen Door
29CUT-OFF, THERMAL
30LINT SCREEN (WHITE)
31Screw, 8-18 x 1/2
32MAY W10349492
33MAY W10181925
34THERMOSTAT
35SCREW
36HOUSING, BLOWER
37Lint Duct Assembly
38MAY 8573824
39MAY 338906
40THERMOSTAT 155° F (ELECTRONIC)
41BAFFLE, DRUM
42BULKHEAD, FRONT
43MAY W10181926
44Fuse, Thermal (91 C)
45SEAL, PLATE COVER
