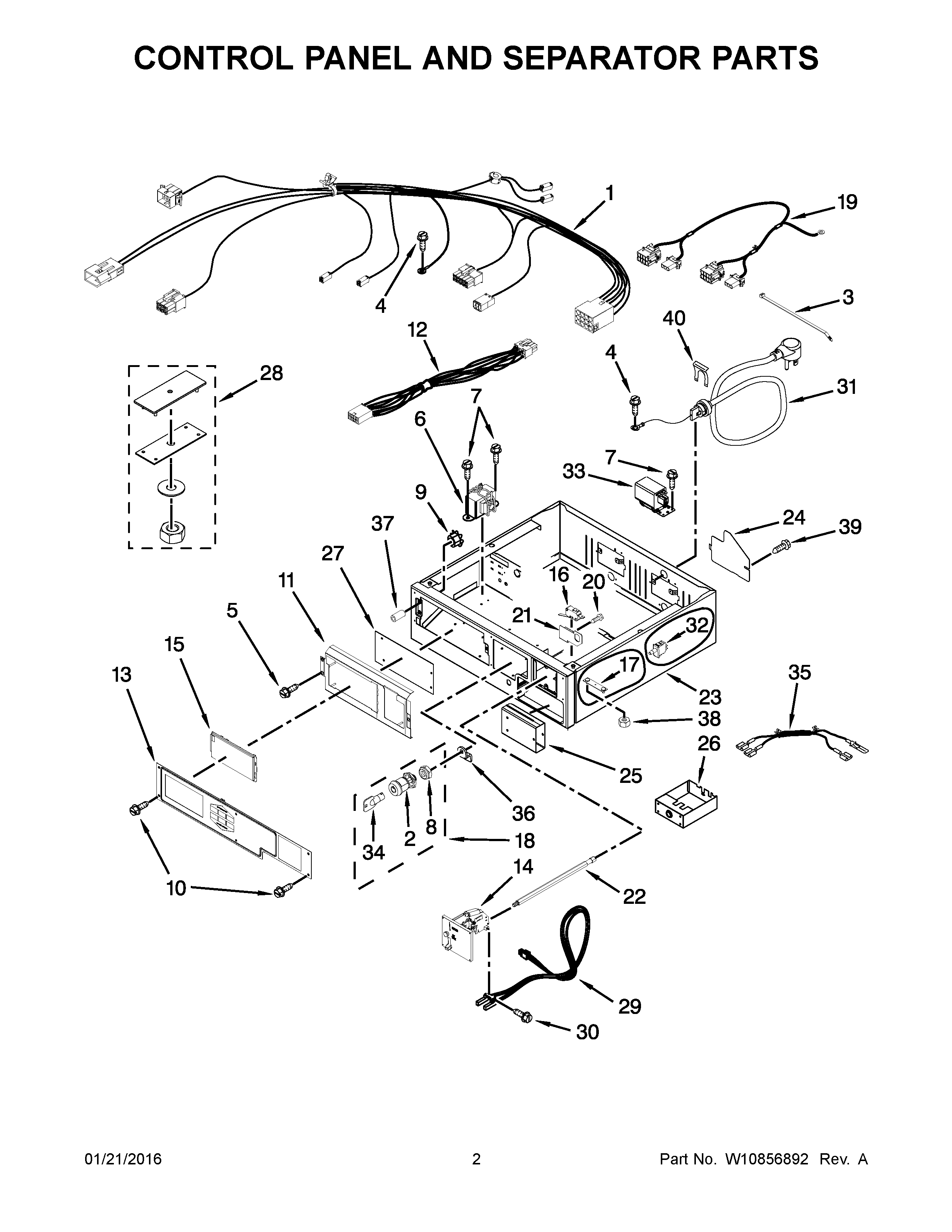

MLG26PDBWW1 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
1MAY W10807484
2NUT, HEX
3CABLE TIE
4SCREW
5MAY W10140652
6MAY W10133285
7MAY 8533971
8NUT, HEX
9NUT
10SCREW
11MAY W10657185
12MAY W10111027
13MAY W10684165
14ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
15MAY W10133268
16MAY W10447152
17MOUNTING STRAP, WELD ASSEMBLY
18ASSEMBLY, LOCK ACCESS DOOR
19MAY W10807493
20SCREW, 4-40 X 5/8
21MAY W10160652
22MAY W10137319
23MAY W10862445
24MAY 3396795
25VAULT BODY, ASSEMBLY
26COIN BOX
27MAY W10678217
28MAY W10169579
29COIN-OPTIC SENSOR ASSEMBLY (WHITE)
30SCREW
31MAY W10239314
32MAY W10131838
33FILTER, RFI
34KEY, ACCESS DOOR
35MAY W10188051
36CAM-LOCK
37STANDOFF, CIRCUIT BOARD
38NUT, HEX (LEFT HAND THREAD)
39Screw, 8-18 x 3/4
40STRAIN-RELIEF CLIP
