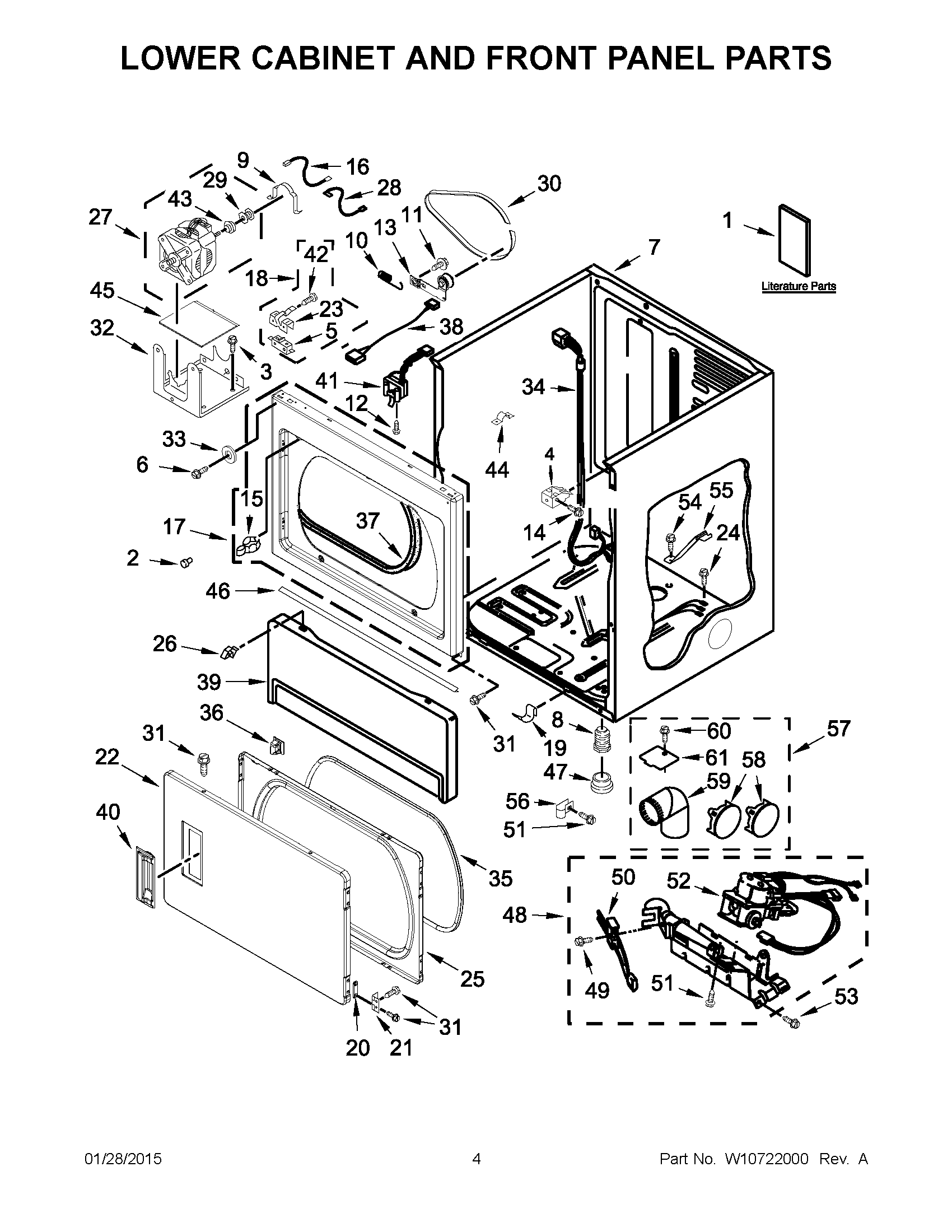

MLG26PDBXW0 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1A	MAY W10738549
1	MAY W10761033
2	BUMPER
3	SCREW
4	CLIP, FRONT PANEL
5	MAY 3394881
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	SCREW
13	PULLEY-IDLER ASSEMBLY
14	SCREW
15	MAY 696144
16	MAY W10167612
17	PANEL, FRONT (WHITE)
18	Switch, Broken Belt
19	CLIP
20	PLUG, HINGE SCREW
21	ASSEMBLY, HINGE & PIN (SILVER)
22	DOOR, FRONT
23	MAY 8066120
24	SCREW
25	MAY W10323061
26	RETAINER
27	MOTOR
28	Wire, Jumper (Broken Belt Switch)
29	PULLEY, MOTOR
30	MAY 3387610
31	MAY 342055
32	MAY 3387118
33	WASHER
34	MAY W10702046
35	MAY 3390735
36	MAY 3392538
37	MAY 3387242
38	JUMPER, DOOR SWITCH
39	Toe Panel (Includes Item. 2) (White)
40	Handle, Door (White)
41	MAY 3406109
42	Screw, 6-20 x 1-1/16
43	MAY 3393657
44	Clip
45	DAPENING PANEL
46	MAY W10576519
47	BOOT, FOOT
48	BURNER ASSEMBLY (60 HZ)
49	MAY 3393909
50	MAY 686590
51	SCREW
52	VALVE, GAS (COMPLETE) 60 HZ
53	SCREW
54	Screw
55	MAY 8529757
56	MAY 3387561
57	MAY 279818
58	MAY 697750
59	MAY 49026
60	MAY 488729
61	MAY 3394331
