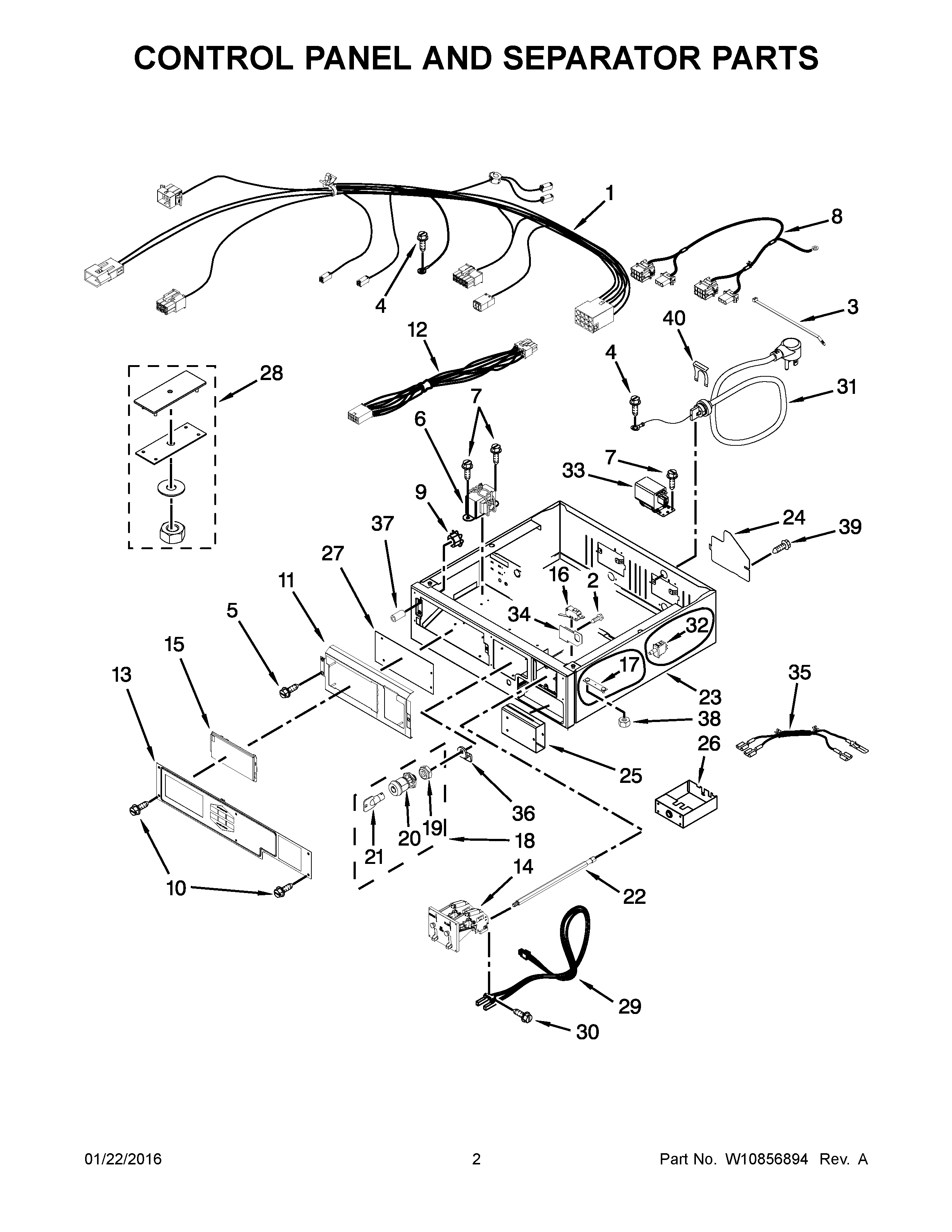

MLG26PDBXW1 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
1MAY W10807484
2SCREW, 4-40 X 5/8
3CABLE TIE
4SCREW
5MAY W10140652
6MAY W10133285
7MAY 8533971
8MAY W10807493
9NUT
10SCREW
11MAY W10657185
12MAY W10111027
13MAY W10684165
14ASSEMBLY, DUAL COIN DROP, MDE20PDAZW0
15MAY W10133268
16MAY W10447152
17MOUNTING STRAP, WELD ASSEMBLY
18ASSEMBLY, LOCK ACCESS DOOR
19NUT, HEX
20NUT, HEX
21KEY, ACCESS DOOR
22MAY W10137319
23MAY W10862445
24MAY 3396795
25VAULT BODY, ASSEMBLY
26COIN BOX
27MAY W10678217
28MAY W10169579
29ACOIN SENSOR ASSY, COIN 2 (BLACK)
29COIN-OPTIC SENSOR ASSEMBLY (WHITE)
30SCREW
31MAY W10239314
32MAY W10131838
33FILTER, RFI
34MAY W10160652
35MAY W10188051
36CAM-LOCK
37STANDOFF, CIRCUIT BOARD
38NUT, HEX (LEFT HAND THREAD)
39Screw, 8-18 x 3/8
40STRAIN-RELIEF CLIP
