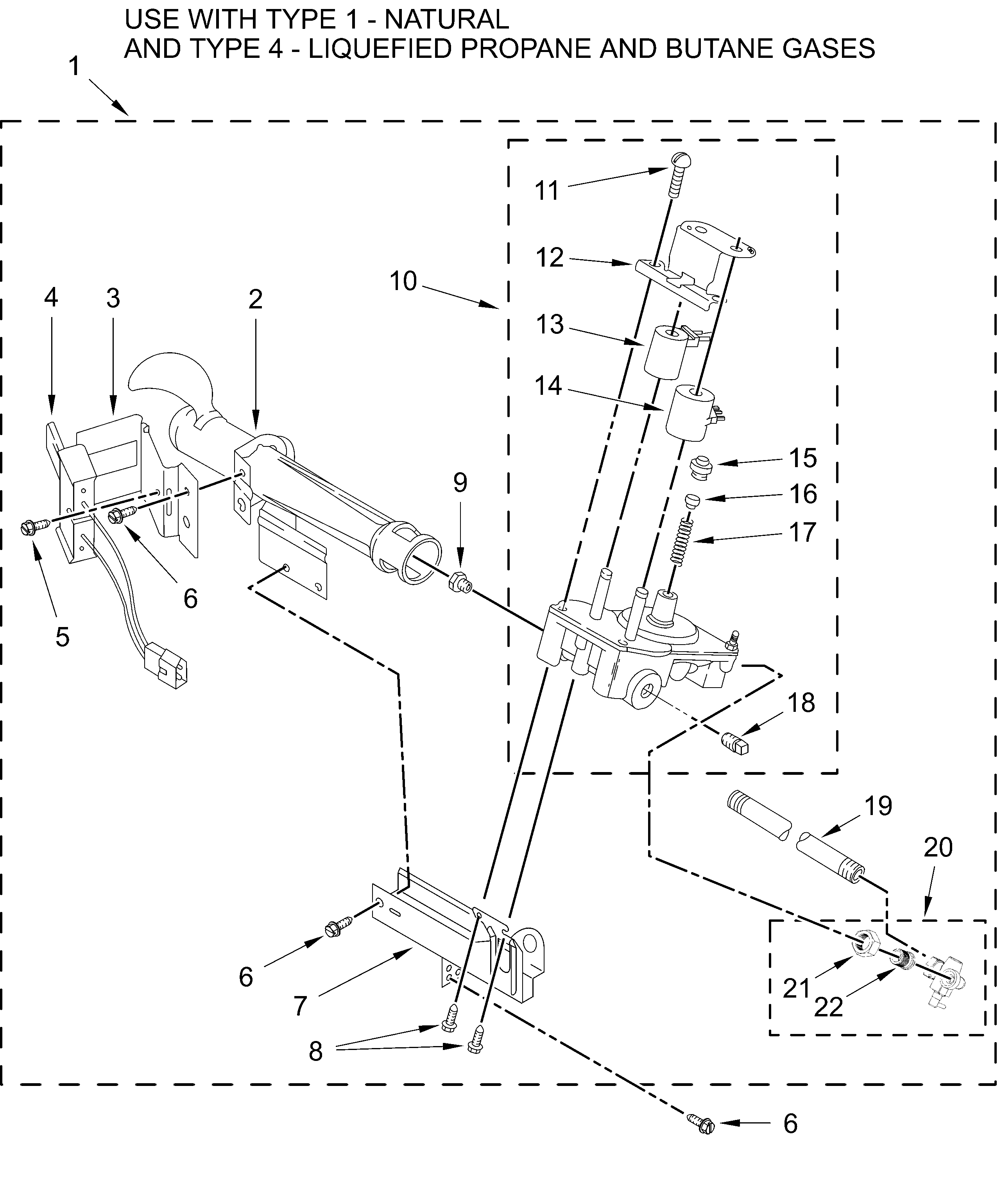

MLG26PDFWW0 BURNER ASSEMBLY PARTS

MLG26PDFWW0 BURNER ASSEMBLY PARTS

Written by

in

MLG26PDFWW0 BURNER ASSEMBLY PARTS

Products

PositionProduct
BA-172
FOLLOWING PARTS NOT ILLUSTRATED
1BURNER ASSEMBLY
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 1)
10279923 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
18W10295523 Whirlpool Plug
19W10097610 Whirlpool Pipe
20697441 Whirlpool Valve
21Nut, Compression
223393767 Whirlpool Pipe
