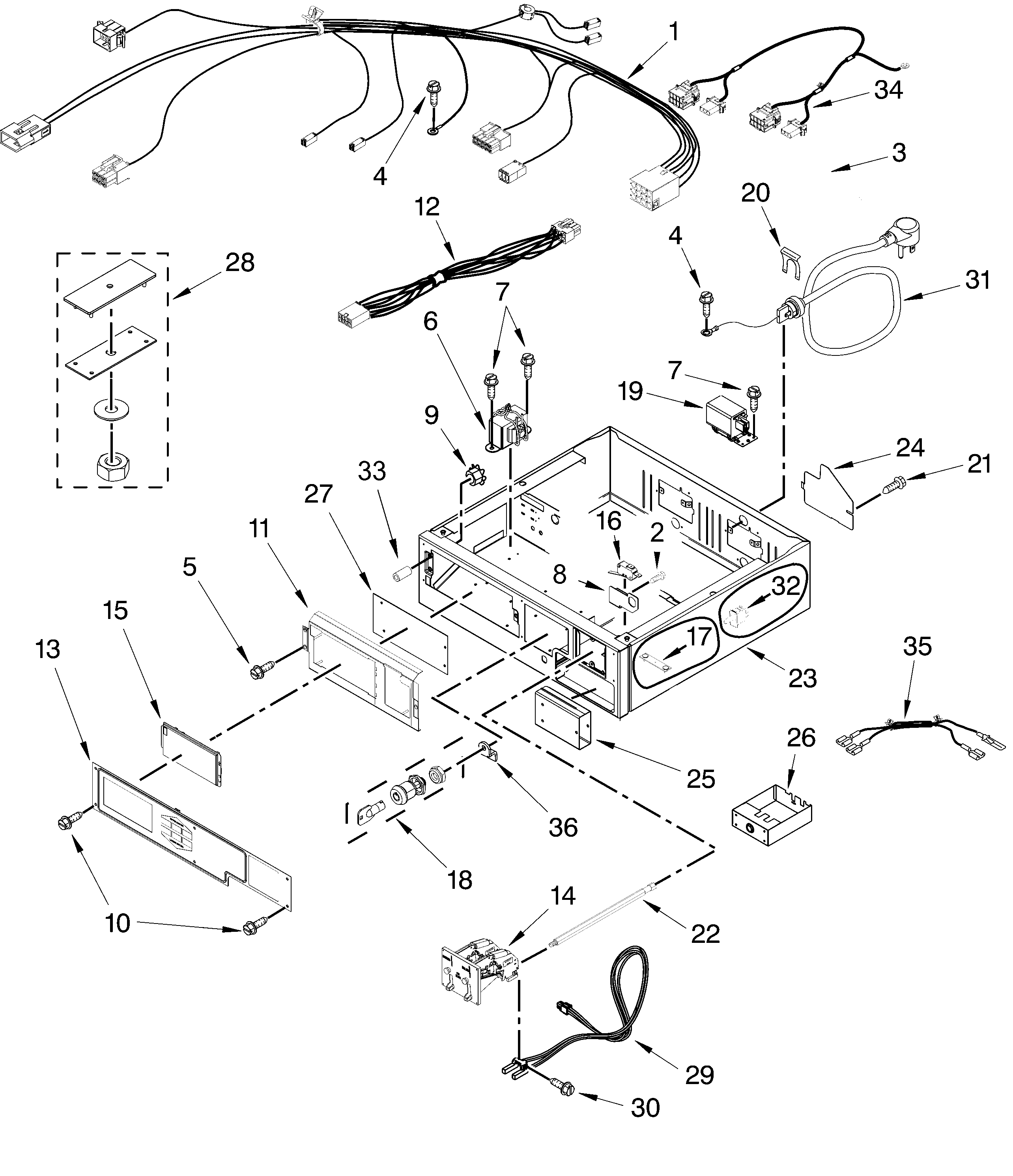

MLG26PDFWW0 CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
	COIN OPTIC SENSOR ASSEMBLY (BLACK)
1	HARNESS, COLLAR
2	3400408 Whirlpool Screw
3	WPW10155270 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	W10756178 Whirlpool Screw
6	WPW10133285 Whirlpool Transformer
8	W10160652 Whirlpool Bracket
9	WPW10139046 Whirlpool Nut
10	WPW10131119 Whirlpool Screw
11	PLATE, CONTROL MOUNTING
12	W10111027 Whirlpool Wire
13	CONSOLE
14	ASSEMBLY, SINGLE COIN DROP
15	WPW10133268 Whirlpool Cover
16	WPW10447152 Whirlpool VLT Switch
17	W10159907 Whirlpool Bracket
18	W11191256 Whirlpool Washer Lock
19	WPW10367632 Whirlpool Filter
20	W11712577 Whirlpool Clip
21	WP90767 Whirlpool Screw
22	WPW10137319 Whirlpool Bolt
23	COLLAR (NOT ILLUSTRATED)
24	W11539855 Whirlpool Refrigerator Pump
25	W11204020 Whirlpool Box
26	W11204019 Whirlpool Coin Box
27	CNTRL-ELEC
28	W11416034 Whirlpool Security Kit
29	WPW10247389 Whirlpool Dryer Coin Optic Sensor
30	WP3395530 Whirlpool Screw
31	CORD-POWER
32	WPW10131838 Whirlpool Voltage Switch
34	JUMPER, LOWER TO COLLAR
35	JUMPER, LINE FILTER
36	W11165684 Whirlpool Cam
