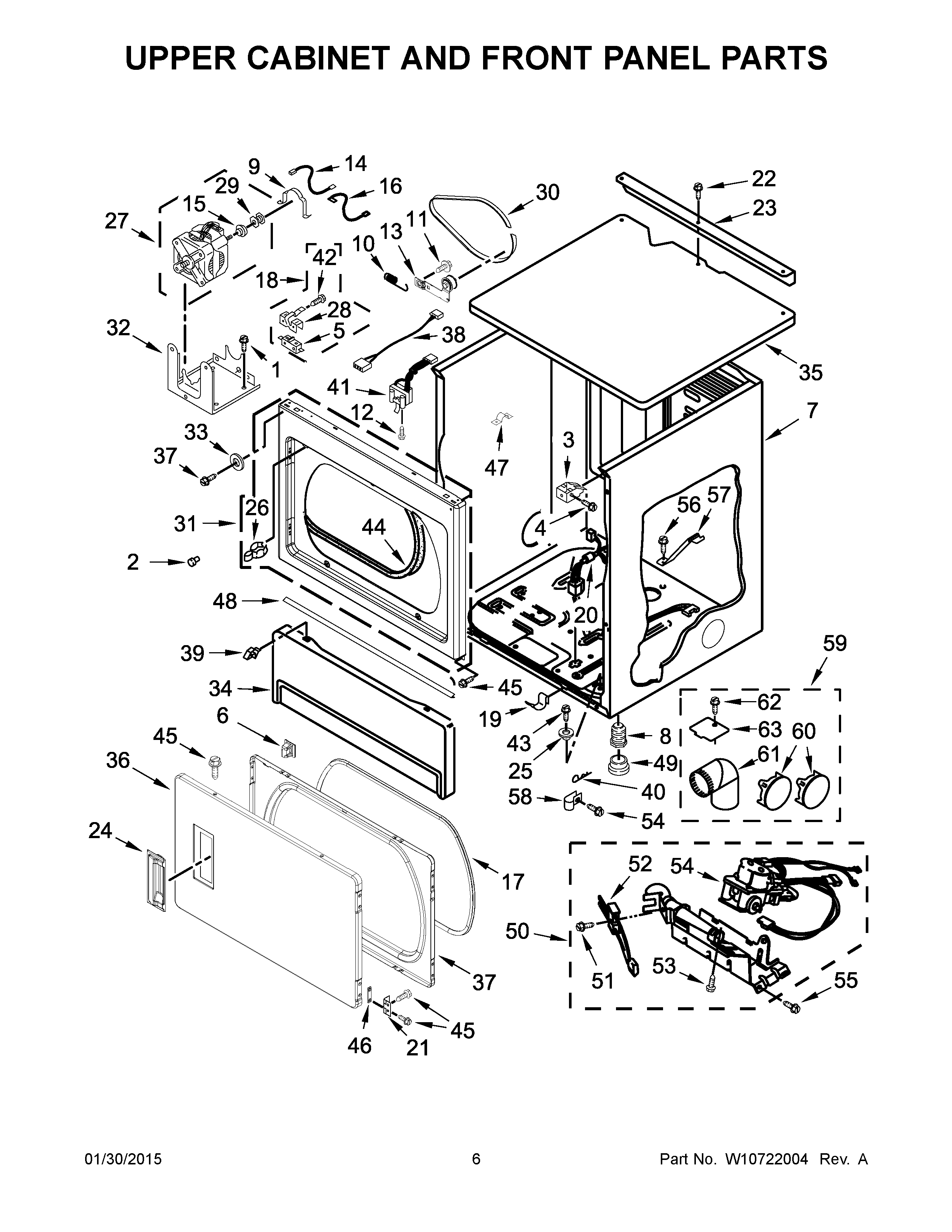

MLG26PRBWW0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	BUMPER
3	CLIP, FRONT PANEL
4	SCREW
5	MAY 3394881
6	MAY 3392538
7	MAY W10547697
8	FOOT, DRYER PLASTIC
9	MAY 660658
10	MAY W10446781
11	SCREW
12	SCREW
13	PULLEY-IDLER ASSEMBLY
14	Wire, Jumper (Broken Belt Switch)
15	MAY 3393657
16	MAY W10167612
17	MAY 3390735
18	Switch, Broken Belt
19	CLIP
20	MAY W10702046
21	ASSEMBLY, HINGE & PIN (SILVER)
22	SCREW
23	MAY 3979115
24	Handle, Door (White)
25	MAY 3389233
26	MAY 696144
27	MOTOR
28	MAY 8066120
29	PULLEY, MOTOR
30	MAY 3387610
31	PANEL, FRONT (WHITE)
32	MAY 3387118
33	WASHER
34	Toe Panel (Includes Item. 2) (White)
35	TOP (WHITE)
36	DOOR, FRONT
37	MAY W10323061
38	JUMPER, DOOR SWITCH
39	RETAINER
40	MAY W10117347
41	MAY 3406109
42	Screw, 6-20 x 1-1/16
43	BOLT, SECURITY
44	MAY 3387242
45	MAY 342055
46	PLUG, HINGE SCREW
47	Clip
48	MAY W10576519
49	BOOT, FOOT
50	BURNER ASSEMBLY (60 HZ)
51	MAY 3393909
52	MAY 686590
53	SCREW
54	VALVE, GAS (COMPLETE) 60 HZ
55	SCREW
56	Screw
57	MAY 8529757
58	MAY 3387561
59	MAY 279818
60	MAY 697750
61	MAY 279731
62	MAY 488729
63	MAY 3394331
