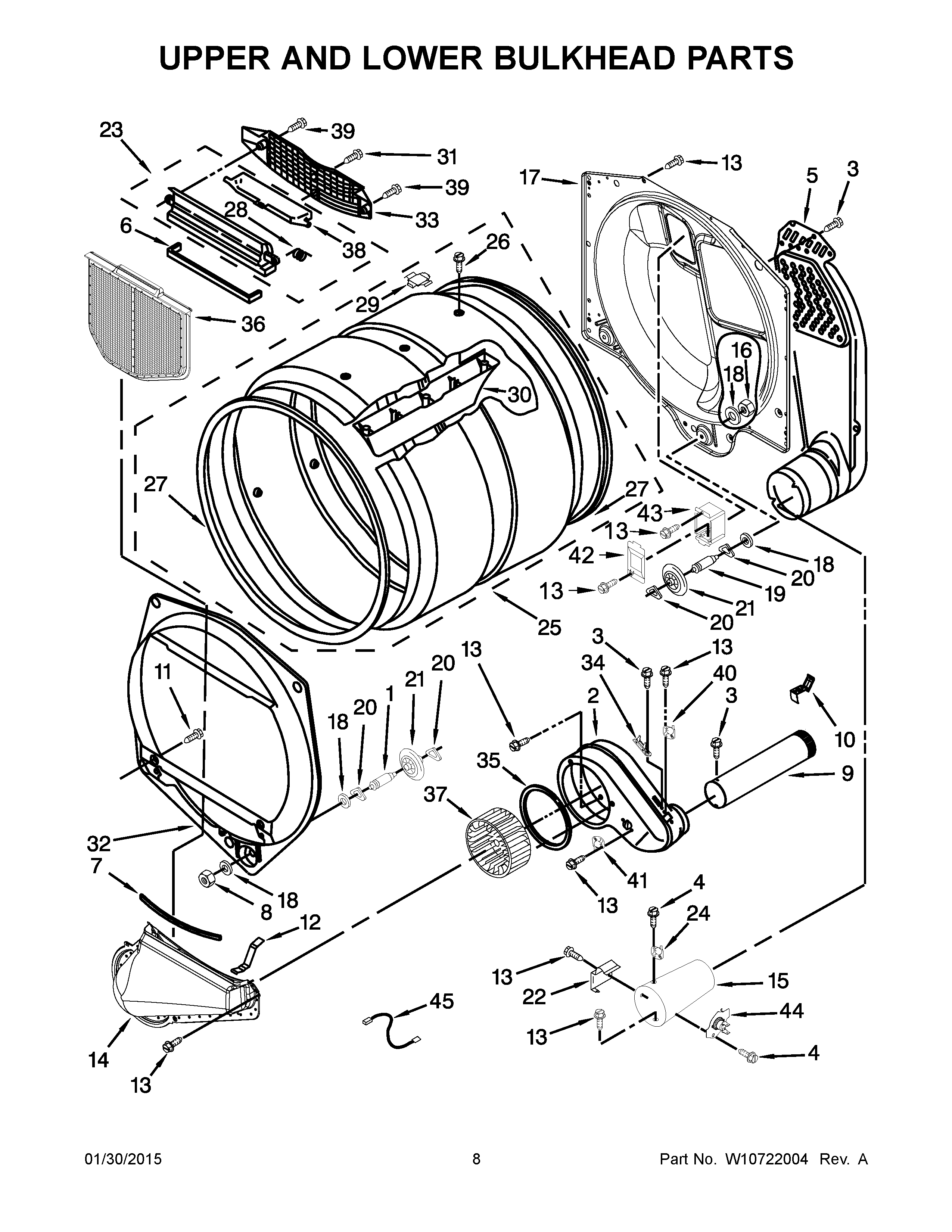

MLG26PRBWW0 05 – UPPER AND LOWER BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	MAY 8544362
3	MAY 8533971
4	SCREW,8-18 X 3/8
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	SCREW
12	CLIP, SPRING
13	SCREW
14	Lint Duct Assembly
15	MAY 8573824
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 338906
23	ASSEMBLY, OUTLET HOUSING
24	THERMOSTAT, HI LIMIT
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	Spring, Lint Screen Door
29	Plug, Drum Hole
30	BAFFLE, DRUM
31	Screw, 8-18 x 1/2
32	BULKHEAD, FRONT
33	GRILL, OUTLET
34	Fuse, Thermal (91 C)
35	SEAL, PLATE COVER
36	LINT SCREEN (WHITE)
37	MAY W10349492
38	MAY W10685668
39	SCREW
40	THERMOSTAT
41	THERMOSTAT 155Â° F (ELECTRONIC)
42	MAY 3402841
43	MAY 8578825
44	CUT-OFF, THERMAL
45	WIRE JUMPER
