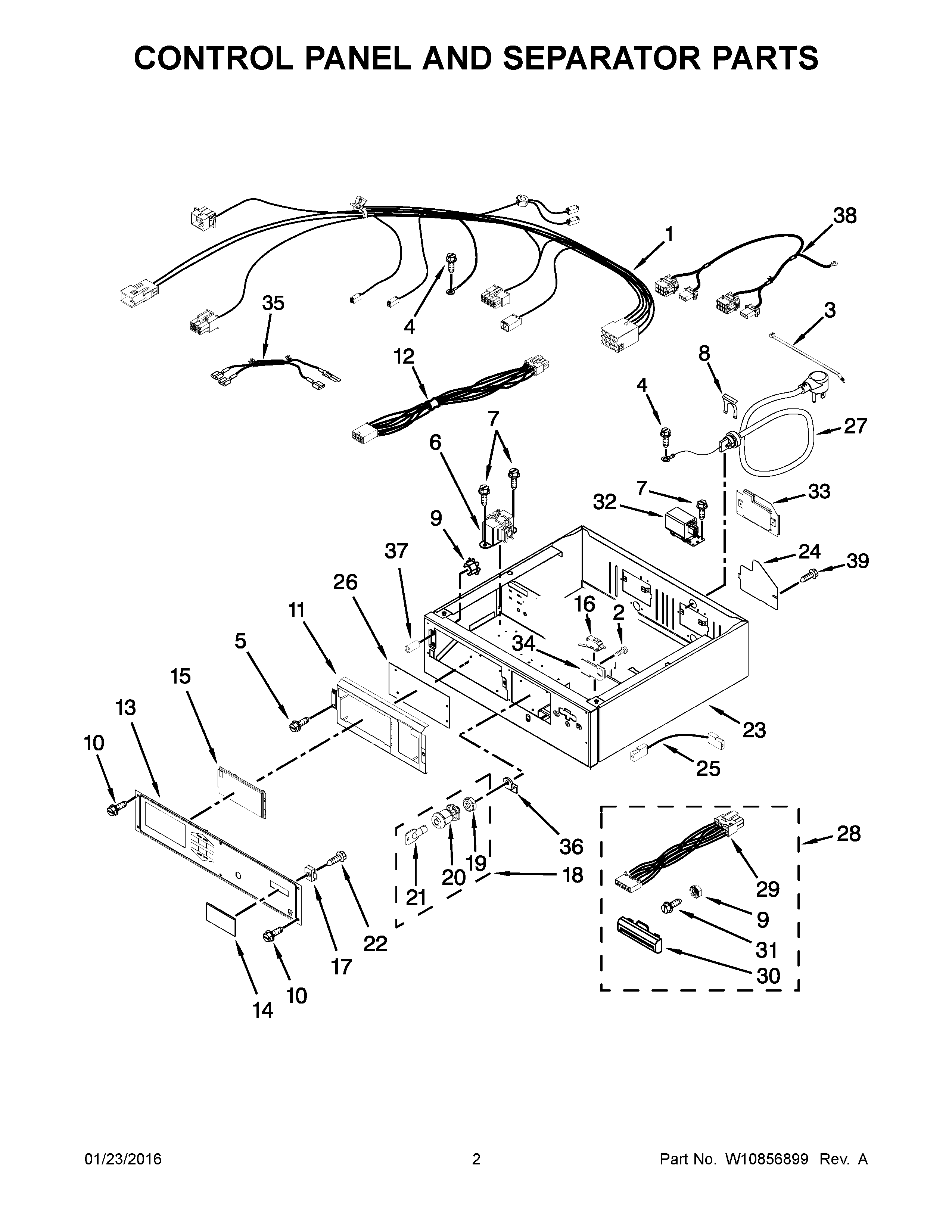

MLG26PRBWW1 02 – CONTROL PANEL AND SEPARATOR PARTS

MLG26PRBWW1 02 – CONTROL PANEL AND SEPARATOR PARTS

Written by

in

MLG26PRBWW1 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
1MAY W10807484
2SCREW, 4-40 X 5/8
3CABLE TIE
4SCREW
5MAY W10140652
6MAY W10133285
7MAY 8533971
8STRAIN-RELIEF CLIP
9NUT
10SCREW
11MAY W10657185
12MAY W10111027
13MAY W10678216
14COVER, CARD READER
15MAY W10133268
16MAY W10447152
17MAY W10145157
18ASSEMBLY, LOCK ACCESS DOOR
19NUT, HEX
20NUT, HEX
21KEY, ACCESS DOOR
22MAY 3400618
23MAY W10862446
24MAY 3396795
25MAY W10769481
26MAY W10678217
27MAY W10581952
28MAY W10135263
29MAY W10239515
30MAY W10163036
31SCREW
32FILTER, RFI
33MAY W10850065
34MAY W10160652
35MAY W10188051
36CAM-LOCK
37STANDOFF, CIRCUIT BOARD
38MAY W10807493
39Screw, 8-18 x 3/8
