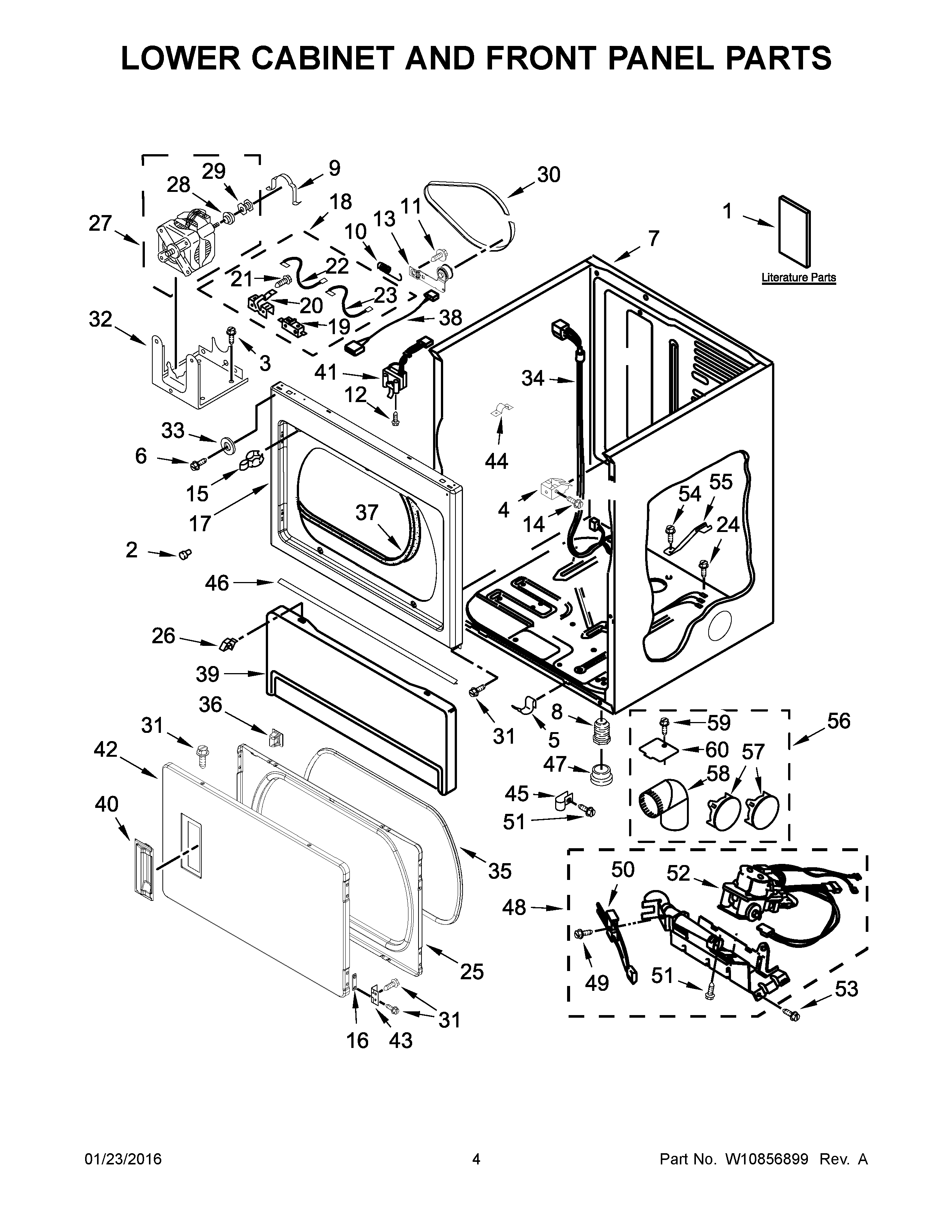

MLG26PRBWW1 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	MAY W10761033
1A	MAY W10738549
2	BUMPER
3	SCREW
4	CLIP, FRONT PANEL
5	CLIP
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	SCREW
13	PULLEY-IDLER ASSEMBLY
14	SCREW
15	MAY 696144
16	PLUG, HINGE SCREW
17	PANEL, FRONT (WHITE)
18	Switch, Broken Belt
19	MAY 3394881
20	MAY 8066120
21	Screw, 6-20 x 1-1/16
22	MAY W10167612
23	Wire, Jumper (Broken Belt Switch)
24	SCREW
25	MAY W10323061
26	RETAINER
27	MOTOR
28	MAY 3393657
29	PULLEY, MOTOR
30	MAY 3387610
31	MAY 342055
32	MAY 3387118
33	WASHER
34	MAY W10807483
35	MAY 3390735
36	MAY 3392538
37	MAY 3387242
38	JUMPER, DOOR SWITCH
39	Toe Panel (Includes Item. 2) (White)
40	Handle, Door (White)
41	MAY 3406109
42	DOOR, FRONT
43	ASSEMBLY, HINGE & PIN (SILVER)
44	Clip
45	MAY 3387561
46	MAY W10576519
47	BOOT, FOOT
48	BURNER ASSEMBLY (60 HZ)
49	MAY 3393909
50	MAY 686590
51	SCREW
52	VALVE, GAS (COMPLETE) 60 HZ
53	SCREW
54	Screw
55	MAY 8529757
56	MAY 279818
57	MAY 697750
58	MAY 49026
59	MAY 488729
60	MAY 3394331
