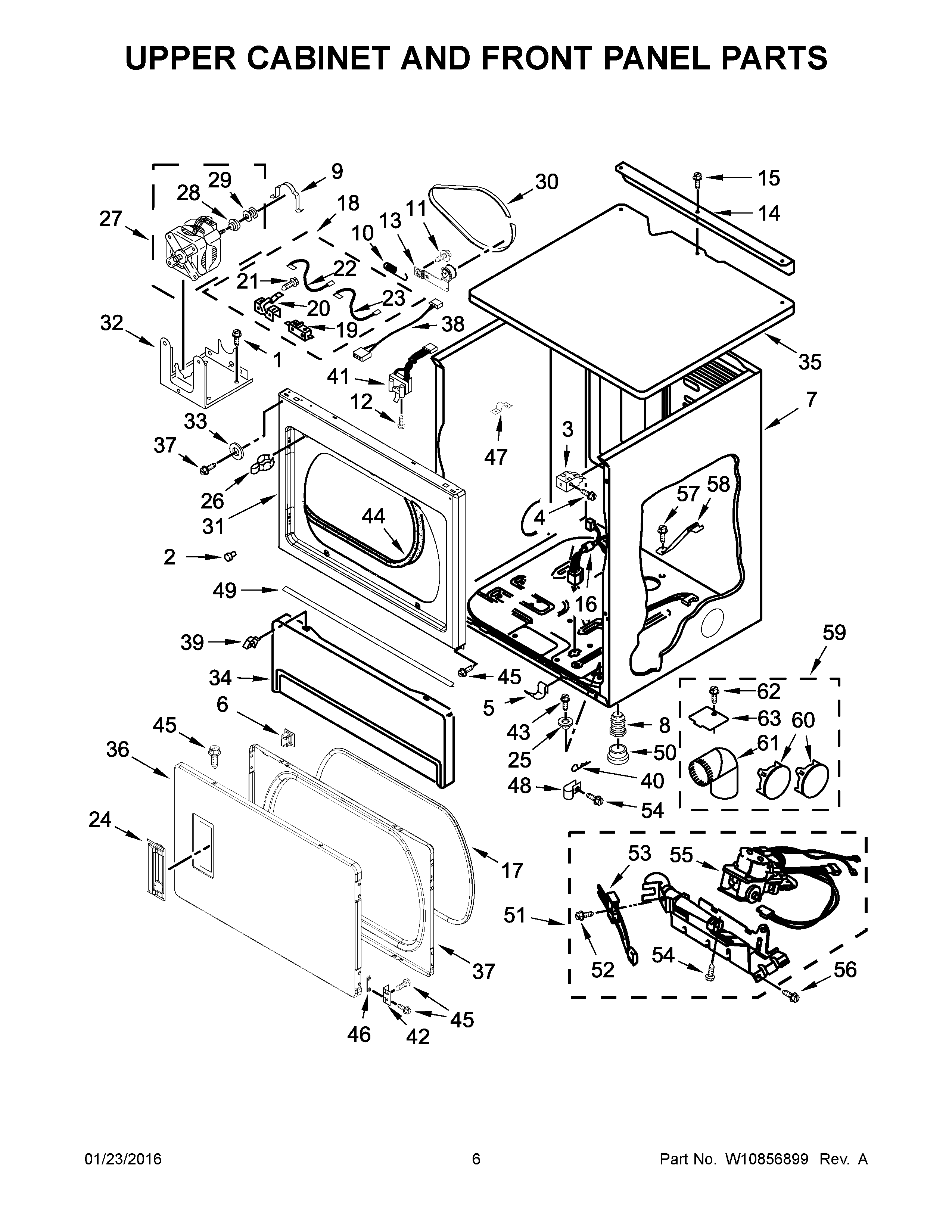

MLG26PRBWW1 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	BUMPER
3	CLIP, FRONT PANEL
4	SCREW
5	CLIP
6	MAY 3392538
7	MAY W10547697
8	FOOT, DRYER PLASTIC
9	MAY 660658
10	MAY W10446781
11	SCREW
12	SCREW
13	PULLEY-IDLER ASSEMBLY
14	MAY 3979115
15	SCREW
16	MAY W10807483
17	MAY 3390735
18	Switch, Broken Belt
19	MAY 3394881
20	MAY 8066120
21	Screw, 6-20 x 1-1/16
22	MAY W10167612
23	Wire, Jumper (Broken Belt Switch)
24	Handle, Door (White)
25	MAY 3389233
26	MAY 696144
27	MOTOR
28	MAY 3393657
29	PULLEY, MOTOR
30	MAY 3387610
31	PANEL, FRONT (WHITE)
32	MAY 3387118
33	WASHER
34	Toe Panel (Includes Item. 2) (White)
35	TOP (WHITE)
36	DOOR, FRONT
37	MAY W10323061
38	JUMPER, DOOR SWITCH
39	RETAINER
40	MAY W10117347
41	MAY 3406109
42	ASSEMBLY, HINGE & PIN (SILVER)
43	BOLT, SECURITY
44	MAY 3387242
45	MAY 342055
46	PLUG, HINGE SCREW
47	Clip
48	MAY 3387561
49	MAY W10576519
50	BOOT, FOOT
51	BURNER ASSEMBLY (60 HZ)
52	MAY 3393909
53	MAY 686590
54	SCREW
55	VALVE, GAS (COMPLETE) 60 HZ
56	SCREW
57	Screw
58	MAY 8529757
59	MAY 279818
60	MAY 697750
61	MAY 279731
62	MAY 488729
63	MAY 3394331
