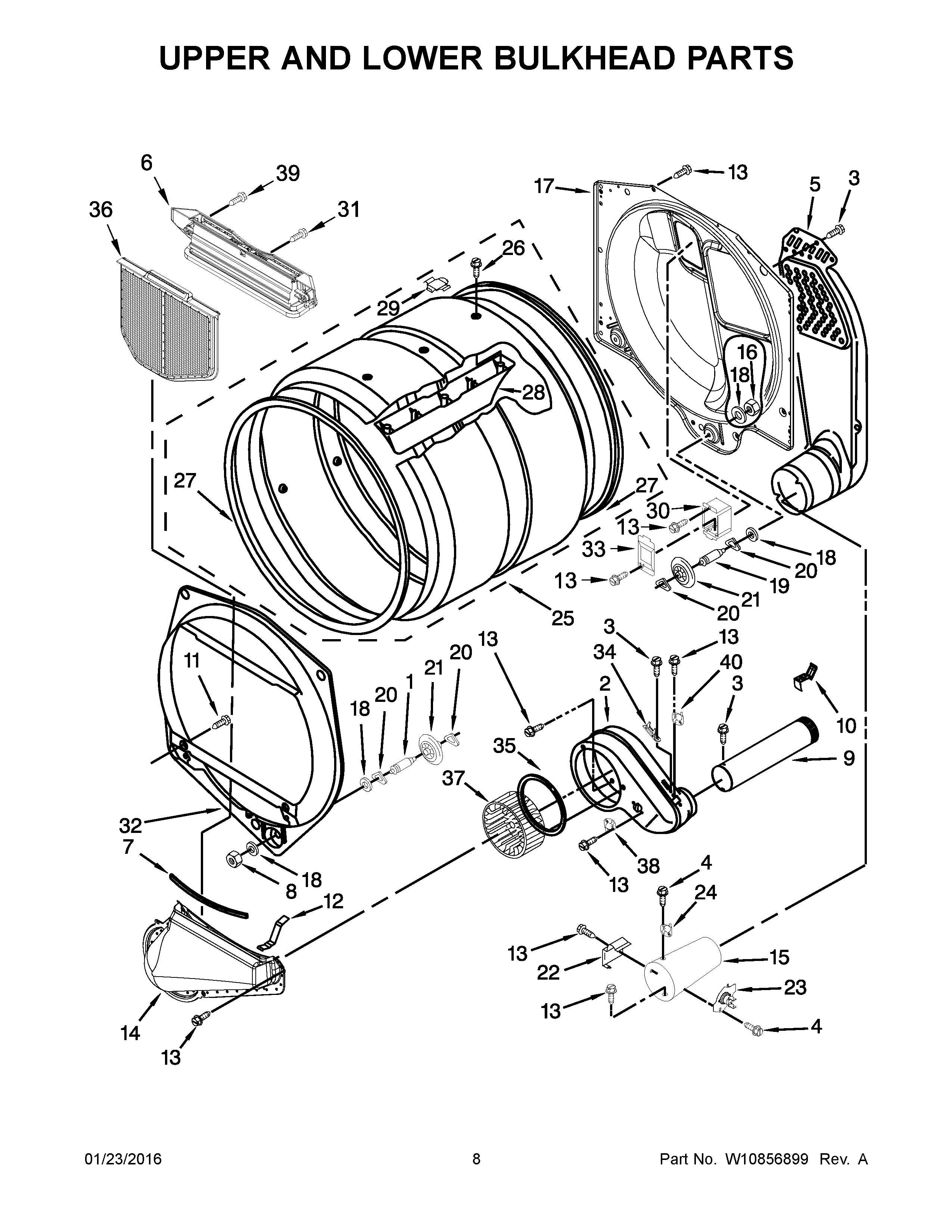

MLG26PRBWW1 05 – UPPER AND LOWER BULKHEAD PARTS

MLG26PRBWW1 05 – UPPER AND LOWER BULKHEAD PARTS

Written by

in

MLG26PRBWW1 05 – UPPER AND LOWER BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2MAY 8544362
3MAY 8533971
4SCREW,8-18 X 3/8
5MAY 3394346
6MAY W10181929
7MAY 697814
8NUT, HEX
9PIPE, EXHAUST
10CLIP, EXHAUST
11SCREW
12CLIP, SPRING
13SCREW
14Lint Duct Assembly
15MAY 8573824
16NUT, HEX (LEFT HAND THREAD)
17MAY 8520836
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22MAY 338906
23CUT-OFF, THERMAL
24THERMOSTAT, HI LIMIT
25ASSEMBLY, DRUM
26MAY W10219342
27MAY W10521118
28BAFFLE, DRUM
29Plug, Drum Hole
30MAY 8578825
31Screw, 8-18 x 1/2
32BULKHEAD, FRONT
33MAY 3402841
34Fuse, Thermal (91 C)
35SEAL, PLATE COVER
36LINT SCREEN (WHITE)
37MAY W10349492
38THERMOSTAT 155° F (ELECTRONIC)
39SCREW
40THERMOSTAT
