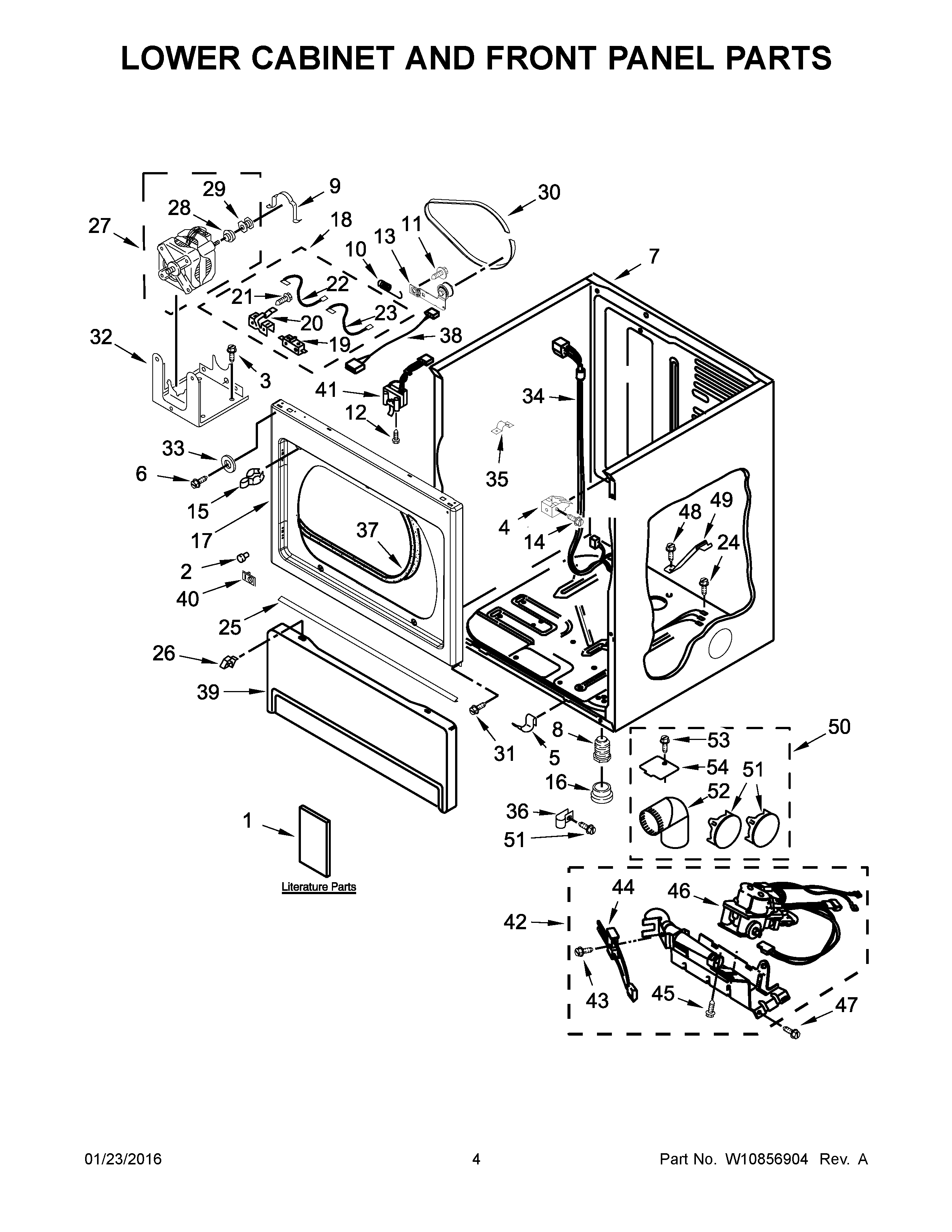

MLG26PRKWW0 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1A	MAY W10738549
1	MAY W10761033
2	BUMPER
3	SCREW
4	CLIP, FRONT PANEL
5	CLIP
6	SCREW
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	SCREW
13	PULLEY-IDLER ASSEMBLY
14	SCREW
15	Strike, Door
16	BOOT, FOOT
17	PANEL, FRONT
18	Switch, Broken Belt
19	MAY 3394881
20	MAY 8066120
21	Screw, 6-20 x 1-1/16
22	MAY W10167612
23	Wire, Jumper (Broken Belt Switch)
24	SCREW
25	MAY W10576519
26	RETAINER
27	MOTOR
28	MAY 3393657
29	PULLEY, MOTOR
30	MAY 3387610
31	MAY 342055
32	MAY 3387118
33	WASHER
34	MAY W10807483
35	Clip
36	MAY 3387561
37	MAY 3387242
38	JUMPER, DOOR SWITCH
39	Toe Panel (Includes Item. 2) (White)
40	COVER, STRIKE (WHITE)
41	MAY 3406109
42	BURNER ASSEMBLY (60 HZ)
43	MAY 3393909
44	MAY 686590
45	SCREW
46	VALVE, GAS (COMPLETE) 60 HZ
47	SCREW
48	Screw
49	MAY 8529757
50	MAY 279818
51	MAY 697750
52	MAY 49026
53	MAY 488729
54	MAY 3394331
