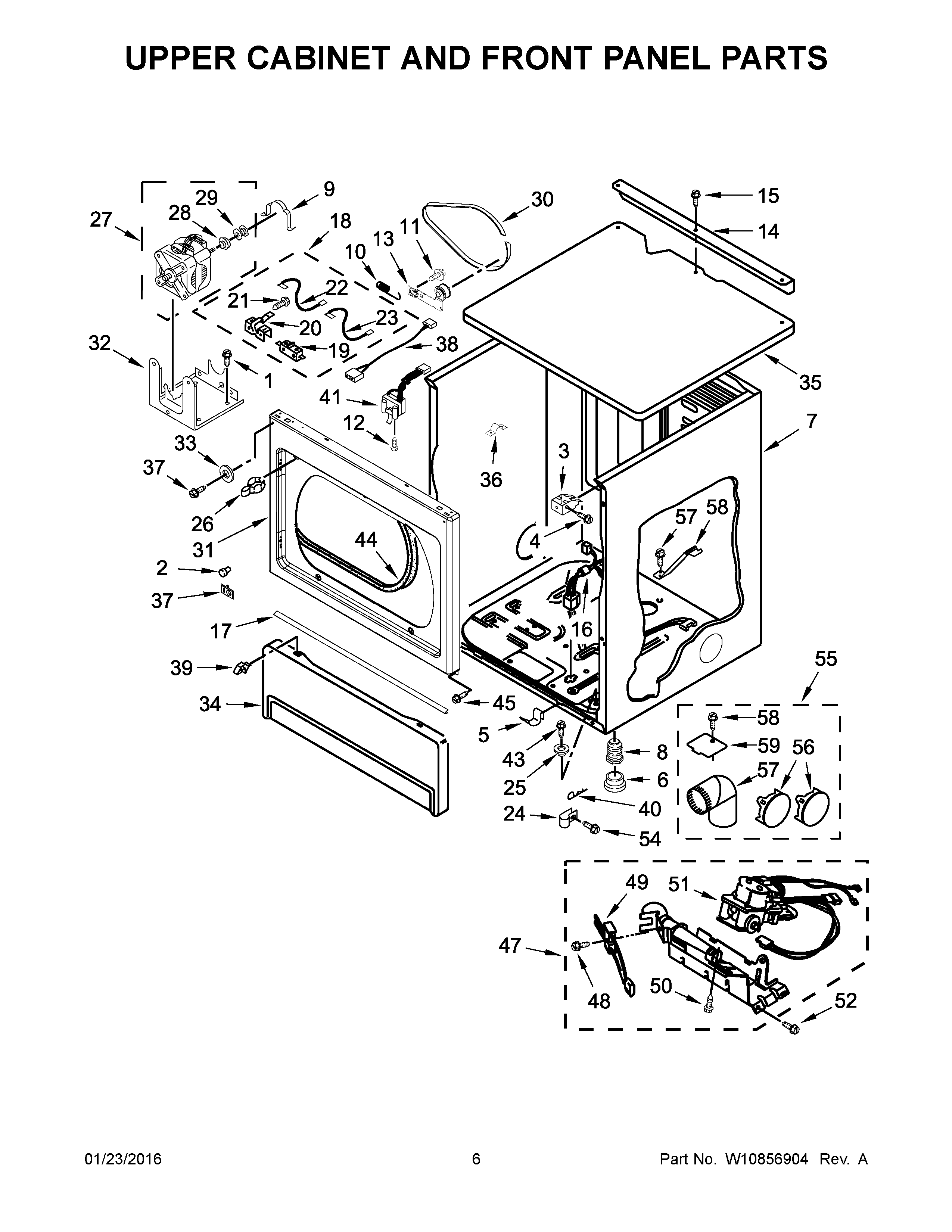

MLG26PRKWW0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	BUMPER
3	CLIP, FRONT PANEL
4	SCREW
5	CLIP
6	BOOT, FOOT
7	MAY W10547697
8	FOOT, DRYER PLASTIC
9	MAY 660658
10	MAY W10446781
11	SCREW
12	SCREW
13	PULLEY-IDLER ASSEMBLY
14	MAY 3979115
15	SCREW
16	MAY W10807483
17	MAY W10576519
18	Switch, Broken Belt
19	MAY 3394881
20	MAY 8066120
21	Screw, 6-20 x 1-1/16
22	MAY W10167612
23	Wire, Jumper (Broken Belt Switch)
24	MAY 3387561
25	MAY 3389233
26	Strike, Door
27	MOTOR
28	MAY 3393657
29	PULLEY, MOTOR
30	MAY 3387610
31	PANEL, FRONT
32	MAY 3387118
33	WASHER
34	Toe Panel (Includes Item. 2) (White)
35	TOP (WHITE)
36	Clip
37	COVER, STRIKE (WHITE)
38	JUMPER, DOOR SWITCH
39	RETAINER
40	MAY W10117347
41	MAY 3406109
42	ASSEMBLY, HINGE & PIN (SILVER)
43	BOLT, SECURITY
44	MAY 3387242
45	MAY 342055
46	PLUG, HINGE SCREW
47	BURNER ASSEMBLY (60 HZ)
48	MAY 3393909
49	MAY 686590
50	SCREW
51	VALVE, GAS (COMPLETE) 60 HZ
52	SCREW
53	Screw
54	MAY 8529757
55	MAY 279818
56	MAY 697750
57	MAY 279731
58	MAY 488729
59	MAY 3394331
