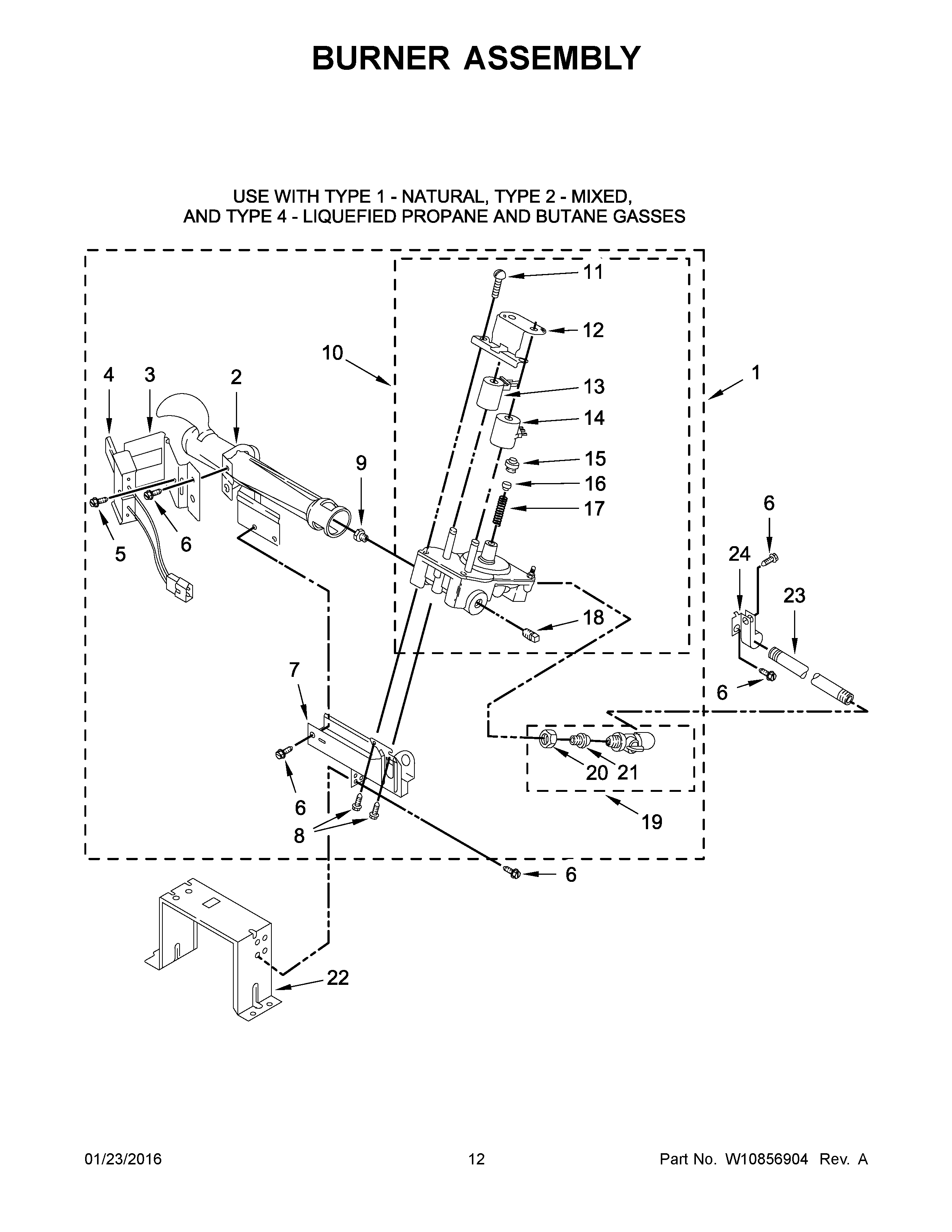

MLG26PRKWW0 07 – BURNER ASSEMBLY

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
1	BURNER ASSEMBLY (60 HZ)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	Orifice, Burner (Type 1)
9A	MAY 234868
10	VALVE, GAS (COMPLETE) 60 HZ
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
18	MAY 239822
19	Valve & Union Shut-Off
20	MAY 233076
21	MAY 3393767
22	MAY 3389889
23	MAY W10110395
24	MAY 3387561
