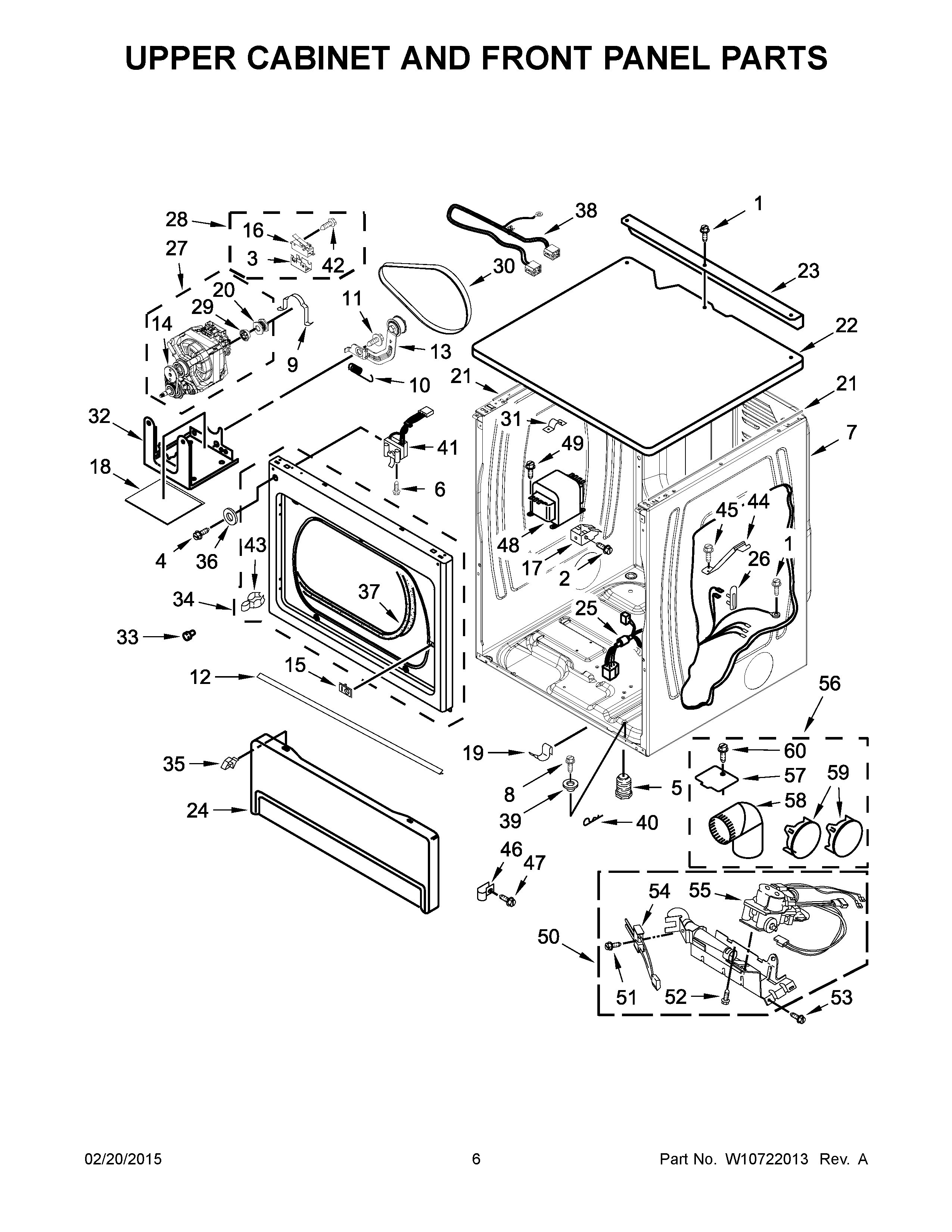

MLG27PDBGW0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	SCREW
2	SCREW
3	MAY 8564011
4	SCREW
5	FOOT, DRYER PLASTIC
6	SCREW
7	MAY W10547697
8	BOLT, SECURITY
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY W10576519
13	MAY W10344192
14	MAY 3405160
15	COVER, STRIKE (WHITE)
16	ASSEMBLY, SWITCH ACTUATOR
17	CLIP, FRONT PANEL
18	DAPENING PANEL
19	CLIP
20	MAY W10167237
21	SEAL-FOAM (IEC)
22	TOP (WHITE)
23	MAY 3979115
24	Toe Panel (Includes Item. 2) (White)
25	MAY W10702051
26	Fuse, Thermal (91 C)
27	ASSEMBLY, MOTOR 50 HZ.
28	ASSEMBLY, SWITCH
29	MAY 3393657
30	BELT, DRIVE
31	Clip
32	MAY W10135695
33	BUMPER
34	MAY W10694721
35	RETAINER
36	MAY W10223794
37	MAY 3387242
38	MAY W10702055
39	MAY 3389233
40	MAY W10117347
41	MAY W10237959
42	SCREW
43	MAY 696144
44	MAY W10181903
45	Screw
46	MAY 3387561
47	MAY 8533971
48	MAY 3977633
49	SCREW
50	MAY W10096909
51	MAY 3393909
52	SCREW
53	SCREW
54	MAY 686590
55	VALVE, GAS 50 HZ. (COMPLETE)
56	MAY 279818
57	MAY 3394331
58	MAY 49026
59	MAY 49252
60	MAY 488729
